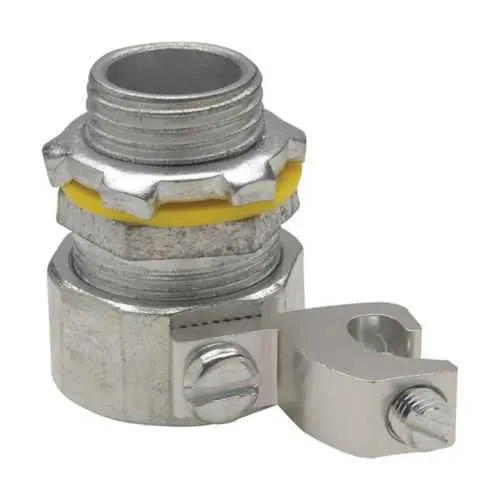

Eaton LTB38G Liquidator Liquidtight - Class I, Div 2
Part Number: LTB38G
Quick Summary
Eaton LTB38G Liquidator liquidtight connector protects FMC terminations in harsh industrial environments. Clean, compliant installations are challenged by hazardous-location requirements and limited space in control panels. It supports NEC/CEC classifications including Class I, Division 2, helping you meet safety codes without compromising throughput. By combining durable malleable iron with an insulated ground lug, it reduces maintenance and accelerates installation. This makes it a reliable choice for automation cabinets, process equipment, and hazardous-area equipment where performance matters. In addition, quick-mounting features and compatible lug sizing streamline field work and reduce downtime. With Eaton's specification support and UL-listed references, you gain traceable quality for audits.
Product Information
Extended Description
LTB38G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, Straight, Aluminum ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 3/8"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB38G
UPC
784564264008
Product Length/Depth
1.63 in
Product Height
1.88 in
Product Width
1.13 in
Product Weight
0.19 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Malleable iron
Insulator
Insulated
Trade size
3/8"
Ground lug material
Aluminum
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB38G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB38G
Feature → Business Impact → Application: The LTB38G uses a malleable iron body with an insulated design and an aluminum ground lug, delivering rugged durability that lowers maintenance costs and extends service life in harsh environments. This translates to fewer field failures and faster commissioning in chemical plants, oil & gas sites, and mining facilities where reliability is critical. Application: Use in FMC conduit terminations to ensure safe, compliant connections in automatic control panels and machinery housings. Feature → Business Impact → Application: The straight connector geometry and 3/8" trade size with #4-14 AWG lug capacity simplify installation in tight spaces while maintaining solid electrical contact, reducing the time spent on wiring tasks and post-install tests. Application: Suitable for compact control cabinets and equipment housings with limited clearance. Feature → Business Impact → Application: NEC/CEC compliance and hazardous-location ratings (Class I, Division 2; Class II/III ratings) provide regulatory assurance, supporting audits and reducing risk of non-compliance during inspections. Application: Power distribution blocks, motor starters, and safety enclosures in hazardous locations. Feature → Business Impact → Application: UL certification references and Eaton specification sheets streamline procurement and approvals, improving supplier confidence and reducing hold times in procurement cycles. Application: Procurement and engineering workflows for automation projects requiring certified liquidtight fittings.
Get a Quick Quote for a Eaton Crouse-Hinds LTB38G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB38G?
Enquire Now
FAQs
Install after powering down the system. Align FMC conduit with the straight LTB38G body, insert through the insulated connector, and secure using the appropriate lug for #4-14 AWG conductors. Ensure the aluminum ground lug is properly bonded to the equipment enclosure. Refer to Eaton's LTB38G specification sheet and UL listings for torque and configuration guidance to maintain hazardous-location compliance.
The LTB38G is listed under NEC/CEC standards and supports hazardous-location classifications, including Class I, Division 2. It also aligns with area classifications for hazardous/classified locations, reducing compliance risk in industrial environments and enabling safe operation in automation and process equipment.
Yes. The LTB38G is a straight FMC liquidtight connector with a 3/8" trade size and lug capacity for #4-14 AWG conductors. It features an aluminum ground lug and an insulated design, making it suitable for secure, conductive terminations in hazardous environments while maintaining a compact footprint.
Key benefits include rugged malleable-iron construction, an insulated ground lug for reliable grounding, and NEC/CEC compliance with Class I, Division 2 ratings. These factors reduce maintenance, accelerate installation, and provide regulatory assurance for audits in automation cabinets, control panels, and hazardous-location equipment.
Download the Eaton specification sheet for LTB38G, the Crouse-Hinds liquidation catalog page, and UL certification reports from the provided assets: Eaton LTB38G spec sheet, Crouse-Hinds catalog page, and UL certification pages. Additional Canada-specific UL listings are also available to support cross-border projects.
