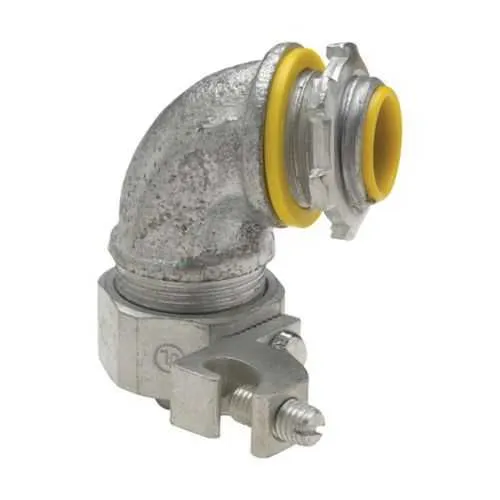

Eaton LTB40090GC Liquidator liquidtight Connector - Hazardous
Part Number: LTB40090GC
Quick Summary
Eaton Crouse-Hinds Liquidator liquidtight connector provides rugged FMC terminations for hazardous industrial environments. In challenging facilities, poor fittings can compromise ground continuity and enclosure integrity. It complies with NEC/CEC and is rated for Hazardous/Classified Locations (Class I, Division 2; Class II, Division 1 and 2; Class III), with Canadian certification support. This 4-inch trade-size, insulated connector features a copper ground lug and malleable iron body for reliable installation, easy field service, and long-term reliability in power distribution. For procurement teams, the reliability of liquidtight fittings translates to lower maintenance costs and fewer field failures.
Product Information
Extended Description
LTB40090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #3/0-6 AWG lug size, Malleable iron, 4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB40090GC
UPC
784564253323
Product Length/Depth
13.81 in
Product Height
13.81 in
Product Width
5.75 in
Product Weight
24.15 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
4"
Ground lug material
Copper
Lug size
#3/0-6 AWG
Eaton Crouse-Hinds LTB40090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB40090GC
Feature: 90° angle FMC liquidtight design for the LTB40090GC enables compact routing in tight spaces. Business Impact: Reduces installation time and wiring congestion, improving project schedules and field accessibility. Application: Ideal for confined plant layouts, cable trays, and equipment hookups in chemical and manufacturing facilities. Feature: Malleable iron body with insulated construction provides rugged durability and corrosion resistance. Business Impact: Withstands vibration and impact in harsh environments, lowering replacement frequency and maintenance costs. Application: Heavy-duty industrial equipment and outdoor installations where mechanical robustness is critical. Feature: Copper ground lug and lug size #3/0-6 AWG deliver solid grounding and bonding. Business Impact: Improves electrical safety, reliability, and code-compliant terminations in hazardous locations. Application: Power distribution in plants with strict grounding requirements and EMI considerations. Feature: 4-inch trade size supports large conductors while maintaining a compact footprint. Business Impact: Enables high-current terminations without oversized fittings, reducing inventory variety and simplifying procurement. Application: Main feeders and branch circuits in industrial facilities using FMC conduit. Feature: NEC/CEC compliance and hazardous location ratings (Class I, Division 2; Class II/III) with Canadian certification. Business Impact: Reduces risk of non-compliance penalties and accelerates approvals during audits. Application: Projects in North American facilities with strict safety standards and cross-border requirements.
Get a Quick Quote for a Eaton Crouse-Hinds LTB40090GC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB40090GC?
Enquire Now
FAQs
LTB40090GC accepts FMC conduit and uses a lug size compatible with #3/0-6 AWG conductors. It supports a 4-inch trade size and includes a copper ground lug with insulated construction, enabling secure, code-compliant terminations in hazardous environments.
Yes. LTB40090GC is rated for Hazardous/Classified Locations under NEC/CEC standards, including Class I Division 2 and Class II/III locations. It also has Canadian certification support, aligning with cross-border safety requirements for industrial installations.
The 4-inch trade size paired with a 90° elbow design enables compact routing, reducing cabinet space requirements and simplifying conduit routing in confined equipment rooms. The insulated, ground-bonded fitting also speeds up installation while improving reliability in demanding environments.
Consult the Eaton specification sheet (LTB40090GC.pdf), the Crouse-Hinds catalog page for liquidtight fittings, CAD drawings, and UL Canada certification reports. These resources support accurate sizing, compliance checks, and streamlined procurement.
The rugged malleable iron body, insulated construction, and solid grounding minimize field failures and leakage, reducing maintenance intervals. Combined with verified NEC/CEC compliance and Canadian certification, this translates to lower lifecycle costs and faster project approvals.
