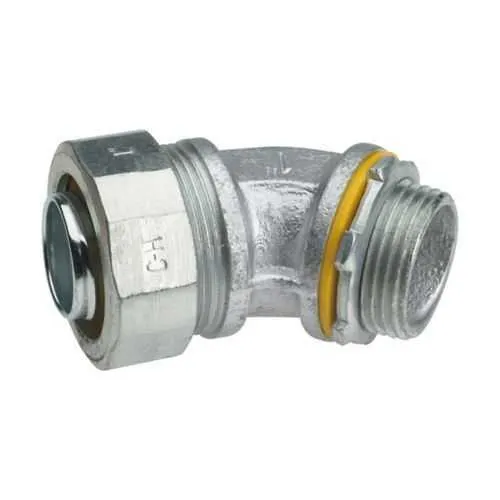

Eaton LTB5045 Liquidator - 45° FMC Liquid Tight Connector
Part Number: LTB5045
Quick Summary
Liquidator liquidtight connector delivers rugged FMC terminations for hazardous-area equipment and control enclosures. In dense electrical panels or confined plant spaces, installers struggle with seal integrity, misfits, and damaged fittings during live-term rewiring. The LTB5045 carries NEC/CEC compliance with Class I, Division 2, Class II, Division 1 and 2 ratings, and explicit area-classified locations to meet modern safety requirements. By combining insulated malleable-iron construction with a compact 1/2 inch trade size, it reduces downtime, simplifies sourcing, and supports fast, code-compliant installations in demanding industrial environments.
Product Information
Extended Description
LTB5045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, 1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB5045
UPC
784564460509
Product Length/Depth
2.5 in
Product Height
2.5 in
Product Width
1.25 in
Product Weight
0.27 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1/2"
Eaton Crouse-Hinds LTB5045 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB5045
Feature: Malleable iron housing with insulated construction. Business Impact: delivers rugged durability and moisture resistance, extending service life in harsh environments. Application: control panels and junctions in chemical plants and offshore facilities. Feature: 45° connector angle reduces routing complexity in tight spaces. Business Impact: shorter wiring runs, fewer bends, and reduced thermal/mechanical stress. Application: compact panel assemblies and equipment cabinets. Feature: 1/2 inch trade size and FMC compatibility streamlines sourcing and field terminations. Business Impact: faster installation and standardized wiring practices. Application: typical industrial wiring installations. Feature: NEC/CEC compliance and hazardous-location ratings. Business Impact: regulatory assurance and safer operation. Application: projects requiring Class I, Division 2, Class II/III. Feature: compact dimensions and lightweight design (0.27 lb). Business Impact: easier handling and reduced install time in congested spaces. Application: assembly in crowded control panels. Feature: availability of CAD drawings, catalogs, and datasheets. Business Impact: accelerates engineering-to-install handoff and reduces design cycles. Application: procurement and engineering teams.
Get a Quick Quote for a Eaton Crouse-Hinds LTB5045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB5045?
Enquire Now
FAQs
For the LTB5045, use with 1/2 inch FMC conduit and the 45° elbow to optimize routing in tight panel spaces. The insulated malleable-iron housing provides robust protection against impact and moisture, while the 2.5 in length and 1.25 in width fit common control panel footprints. Ensure proper gasket seating and torque to maintain seal integrity during terminations.
The LTB5045 carries NEC/CEC compliance with Hazardous/Classified Locations ratings, including Class I, Division 2 and Class II/III where specified. This enables safe operation in areas such as chemical processing, refineries, and other potentially explosive atmospheres. Its rugged construction supports long-term reliability under vibration, temperature cycling, and chemical exposure common in these settings.
Yes. The LTB5045 is part of the Liquidator family designed for FMC conduit and 1/2 inch trade size terminations. Its 45° angle and insulated malleable-iron body are compatible with corresponding Liquidator fittings and standard FMC components, enabling straightforward integration into existing Eaton Crouse-Hinds systems and reducing the need for bespoke adapters.
LTB5045 is certified under NEC/CEC standards and rated for hazardous locations, including Class I Division 2, and Class II/III as applicable. The product line also references Canadian certifications for metallic liquidtight fittings, with UL listings supporting global usage. Always verify local code adoption and project-specific requirements during specification and procurement.
The LTB5045 reduces maintenance and downtime by delivering a rugged, sealed termination less prone to leakage and moisture ingress. Faster installation from a compact 1/2 inch design lowers labor costs and commissioning time. In projects requiring hazardous-location compliance, it also minimizes regulatory risk, helping protect uptime and overall project ROI.
