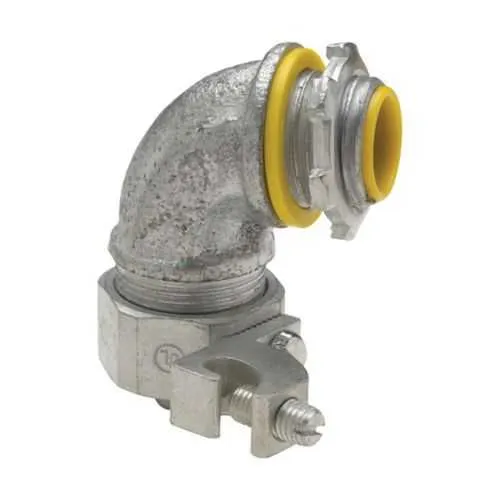

Eaton Crouse-Hinds LTB5090GC Liquidator - 90° FMC, Hazardous
Part Number: LTB5090GC
Quick Summary
LTB5090GC is a liquidtight FMC connector designed for safe, reliable enclosure connections in hazardous-location installations. Engineers often grapple with moisture ingress, ground path reliability, and strict regulatory requirements in tough environments. This connector carries NEC/CEC standards and is rated for Class I, Division 2; Class II, Division 1 and 2; and Class III locations, enabling compliant, auditable installations. Its copper ground lug and insulated malleable-iron body deliver robust grounding and mechanical protection, while the 1/2" lug size aligns with common field connectors. The compact 1.94 in footprint and 1.25 in width help installers route cables in tight spaces, reducing installation time and material costs for plant upgrades and new builds.
Product Information
Extended Description
LTB5090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB5090GC
UPC
784564253231
Product Length/Depth
1.94 in
Product Height
1.94 in
Product Width
1.25 in
Product Weight
0.31 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1/2"
Ground lug material
Copper
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB5090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB5090GC
Feature → 90° angle design for FMC liquidtight connections translates to faster, more reliable routing in restricted cabinets and conduit runs. Business Impact → Reduces installation time, minimizes bending stress on conductors, and improves overall wiring density in control panels. Application → Ideal for connectorized equipment in compact electrical rooms and hazardous locations where space is at a premium and code compliance is non-negotiable. Keyword focus → 90 degree liquidtight connector, FMC fittings, space-saving conduit connections.Feature → Malleable iron body with insulated construction provides rugged protection against impact and moisture. Business Impact → Extends service life, lowers maintenance cycles, and reduces replacement costs in corrosive environments. Application → Suitable for industrial plants, chemical processing, and offshore facilities where harsh conditions are common. Keyword focus → malleable iron liquidtight, insulated connector, rugged FMC fittings.Feature → Copper ground lug and lug size #4-14 AWG enable solid grounding during terminations. Business Impact → Improves electrical integrity, simplifies inspections, and supports reliable fault paths. Application → Panels, enclosures, and junctions requiring dependable grounding in hazardous locations. Keyword focus → copper ground lug, lug size #4-14 AWG, grounded liquidtight fittings.Feature → NEC/CEC compliance and hazardous-location ratings (Class I, Division 2; Class II, Division 1 & 2; Class III). Business Impact → Streamlines procurement and commissioning with clear regulatory alignment, reducing risk and audit findings. Application → Chemical plants, manufacturing floors, and other regulated environments. Keyword focus → NEC/CEC, hazardous-location ratings, Class I Division 2 fittings.Feature → Compact footprint (1.94 in length/height, 1.25 in width) supports dense layouts and easier field adjustments. Business Impact → Minimizes cabinet footprint and material handling, enabling scalable upgrades. Application → Modern control cabinets and retrofit projects where space is limited. Keyword focus → compact liquidtight connector, space-efficient FMC fitting.
Get a Quick Quote for a Eaton Crouse-Hinds LTB5090GC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB5090GC?
Enquire Now
FAQs
Yes. The LTB5090GC is designed for FMC conduit fittings with a copper ground lug and a 1/2 inch trade-size lug. Its insulated malleable-iron body and 90° design support secure terminations in Class I, Division 2 environments, while meeting NEC/CEC requirements. This ensures reliable grounding and straightforward field assembly in restricted spaces.
Key specs include FMC conduit type, a 1/2" trade size, #4-14 AWG lug range, copper ground lug, and a compact 1.94 in length/height with a 1.25 in width. The connector is rated for hazardous locations under NEC/CEC, supporting Class I Division 2, Class II/III where applicable.
LTB5090GC carries NEC/CEC standards and is rated for Class I, Division 2, plus Class II Division 1 and 2, and Class III locations. This alignment with regulatory codes helps ensure safe operation, simplifies inspections, and supports compliant installation of liquidtight fittings in industrial environments.
The unit provides a copper ground lug and supports lug sizes from #4 to #14 AWG, enabling secure grounding across common wiring schemes. Its insulated malleable-iron body protects the connection against moisture and corrosion, making it well-suited for diverse grounding requirements in hazardous locations.
Choose the LTB5090GC for its rugged construction and moisture resistance, which reduces corrosion-driven failures. The 90° angle reduces stress on cables, while NEC/CEC compliance and clear labeling facilitate commissioning and future upgrades, contributing to lower lifecycle maintenance and operational risks.
