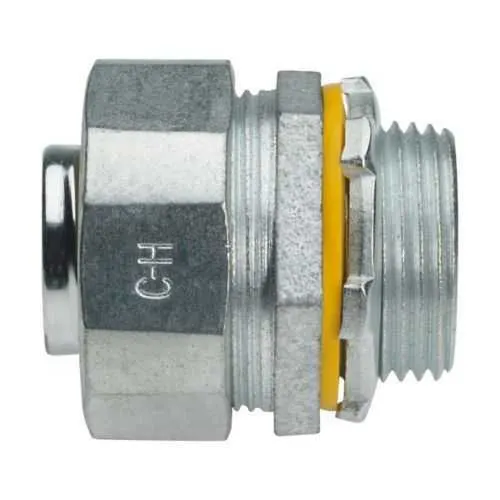

Eaton Crouse-Hinds LTB75 Liquidator liquidtight connector - Hazardous/Classified Locations
Part Number: LTB75
Quick Summary
The Eaton Crouse-Hinds LTB75 Liquidator liquidtight connector is designed for FMC conduit systems in harsh environments. When space is tight and exposure to moisture or dust threatens system uptime, a robust seal and durable housing matter. It carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2 and Class II, Division 1 & 2, supporting safe operation in demanding plants. With its 3/4 in trade size, insulated malleable iron body, and straight configuration, it simplifies installation while helping you maintain compliance across projects. This translates to lower maintenance costs and faster field deployment for procurement teams and engineers.
Product Information
Extended Description
LTB75 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, Straight, Insulated, Malleable iron, 3/4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB75
UPC
784564310750
Product Length/Depth
1.75 in
Product Height
1.563 in
Product Width
1.56 in
Product Weight
0.29 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Malleable iron
Insulator
Insulated
Trade size
3/4"
Eaton Crouse-Hinds LTB75 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB75
Feature: 3/4 in trade size FMC straight connector delivers a compact, compatible termination for standard liquidtight conduit systems. Business Impact: Reduces installation time and wiring complexity, increasing on-site efficiency. Application: Ideal for tight panels and equipment enclosures in manufacturing lines where space is at a premium. Feature: Malleable iron housing provides rugged mechanical strength. Business Impact: Withstands vibration, impact, and harsh environments, lowering field repair frequency. Application: Hazardous plant floors and outdoor installations where durability matters. Feature: Insulated design minimizes electrical shock risk and protects insulation integrity in damp or wet spaces. Business Impact: Improves worker safety and maintains insulation performance over time. Application: Wet-dry transition zones and washdown areas in food processing or chemical plants. Feature: NEC/CEC compliance and hazardous-location ratings (Class I Division 2; Class II Div 1 & 2; Class III). Business Impact: Simplifies code compliance and reduces job-site rework. Application: Projects in chemical plants, refineries, and other classifications where safety certifications are mandatory. Feature: 1.75 in length and 1.56 in width with a 0.29 lb weight. Business Impact: Lightweight yet robust for quick routing and easy handling during panel installations. Application: Control panels and junction points with limited space. Feature: Availability of CAD drawings and catalogs. Business Impact: Accelerates design integration and procurement planning. Application: Engineering design reviews and BOM creation for electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds LTB75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB75?
Enquire Now
FAQs
LTB75 is a straight FMC liquidtight connector designed specifically for 3/4 in trade-size liquidtight conduits. Its malleable iron housing and insulated body ensure a secure, sealed connection suitable for rugged industrial environments. The 1.75 in length and 1.56 in width facilitate routing in cramped panels, while the 0.29 lb weight helps with quick field assembly and reduced installer fatigue.
The LTB75 carries NEC/CEC compliance with hazardous-location ratings that include Class I Division 2, Class II Division 1 and 2, and Class III. These ratings indicate the connector is suitable for environments with flammable or hazardous atmospheres, enabling safer, code-compliant installations in chemical plants, refineries, and other classified locations.
Certification reports for metallic liquidtight fittings indicate Canadian certification availability. While specific verification should be checked for the LTB75 model, UL-listed Canadian documents are accessible for the broader liquidtight fittings family, supporting compliance in Canadian jurisdictions and aiding cross-border procurement.
The straight LTB75 connector features a compact 1.75 in length and 1.56 in width, combined with a simple straight coupling design. This enables easier routing in crowded panels and enclosures, reduces bending and pulling forces on FMC conduits, and accelerates field termination without compromising ingress protection or insulation integrity.
Reference NEC/CEC standards and the hazardous-location ratings (Class I Division 2; Class II Div 1 & 2; Class III) when specifying LTB75. Applications include industrial facilities with moisture, dust, or vibration exposure, where sealed, insulated, and compliant liquidtight connections improve safety, reliability, and maintenance cycles over time.
