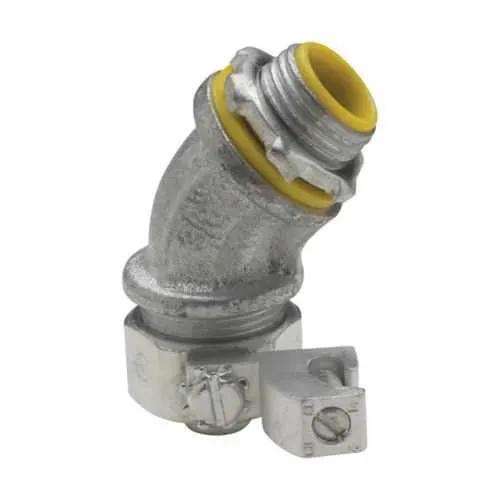

Eaton LTB7545G Liquidator Connector - Hazardous Locations
Part Number: LTB7545G
Quick Summary
Eaton LTB7545G Liquidator Connector provides rugged, liquidtight FMC connections for hazardous-location installations. Installers struggle with certified fittings that resist corrosion and maintain grounding in Class I/II locations. It complies with NEC/CEC Area classification for Hazardous/Classified Locations and supports Class I, Division 2 ratings. Designed for FMC conduits with a grounded aluminum lug, it minimizes field rework while speeding assemblies and ensuring regulatory compliance. Its 3/4 inch trade size supports #4-14 AWG lugs, enabling concise terminations and easier field maintenance. The rugged malleable iron body, with aluminum ground lug, withstands industrial wear while meeting industry standards. This combination supports fast, compliant installations across hazardous locations without sacrificing safety or performance.
Product Information
Extended Description
LTB7545G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Aluminum ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 3/4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB7545G
UPC
784564264220
Product Length/Depth
2.69 in
Product Height
2.688 in
Product Width
1.56 in
Product Weight
0.42 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3/4"
Ground lug material
Aluminum
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB7545G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB7545G
Feature: 45° liquidtight FMC connector with malleable iron housing and insulated body. Business Impact: Flexible routing in tight panels reduces installation time and protects conductors in harsh environments. Application: Suitable for control panels and machine enclosures in chemical plants and heavy industries where space is at a premium. Feature: Ground lug material is aluminum with lug size #4-14 AWG and trade size 3/4". Business Impact: Simple, reliable grounding and easier conductor terminations with consistent torque control. Application: Hazardous-location wiring across oil & gas, power generation, and wastewater facilities. Feature: Full protection in hazardous locations with NEC/CEC compliance, including Class I, Division 2 ratings. Business Impact: Regulatory risk reduction and faster approval in auditor reviews. Application: Installation in hazardous/classified locations such as refineries, chemical plants, and processing facilities. Feature: Compact dimensions and lightweight design (2.69 in L, 2.688 in H, 1.56 in W; 0.42 lb). Business Impact: Easier inventory planning, space optimization, and quicker field fits. Application: Panel upgrades and new builds where space is constrained. Feature: Documentation and compatibility options including 3D CAD drawing package and catalogs. Business Impact: Accelerates design integration, procurement, and downstream downstream manufacturing workflows. Application: Engineering design teams and systems integrators deploying liquidtight fittings in FMC systems.
