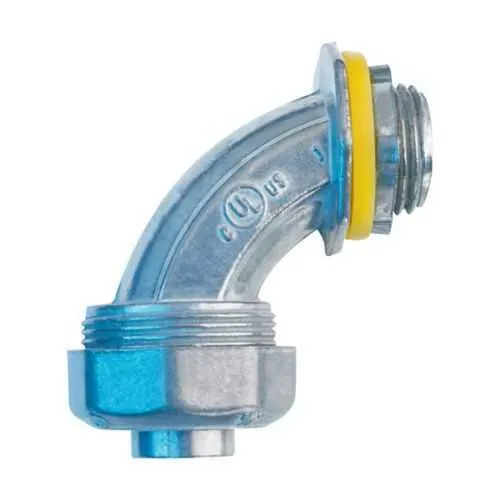

Eaton LTB7590DC Liquidtight Connector - 90° Zinc Die Cast
Part Number: LTB7590DC
Quick Summary
The Eaton LTB7590DC Liquidtight Connector provides a robust FMC termination for hazardous locations in industrial wiring. Installing in cramped panels or extreme temperatures often leads to leaks and misalignment; this connector is designed to minimize both. It complies with NEC/CEC standards and carries hazardous-location ratings: Class I, Division 2; Class II, Division 1 and 2; Class III, supported by UL certification for metallic liquidtight fittings. By combining a 3/4 inch trade size with a 90° angle and insulated zinc-cast body, it delivers reliable, code-compliant connections. This helps engineers reduce field rework and maintenance costs, while offering straightforward procurement through Eaton's Crouse-Hinds catalog.
Product Information
Extended Description
LTB7590DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Zinc die cast, 3/4"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB7590DC
UPC
662277000765
Product Length/Depth
1.36 in
Product Height
1.36 in
Product Width
1.27 in
Product Weight
0.03 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Insulated
Trade size
3/4"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB7590DC
The 90° angle design enables tighter routing and a smaller footprint, which reduces panel depth and speeds up wiring at the jobsite. This translates to shorter installation times, fewer misalignments, and lower labor costs on high-density control panels and machine enclosures. The FMC conduit compatibility ensures seamless integration with flexible metal conduit, simplifying inventory management and improving field adaptability. With a 3/4" trade size, it fits common FMC configurations, reducing the need for adapters and spare parts. The zinc die-cast, insulated body delivers durable protection against corrosion and arcing, extending service life in hazardous environments while maintaining safe terminations. A light 0.03 lb weight enhances handling during installation, contributing to faster pull-runs and reduced worker fatigue. UL certification for metallic fittings and cross-border Canada/USA approvals streamline procurement across multinational facilities. Catalog availability through the Crouse-Hinds line ensures consistent specifications and reliable sourcing for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds LTB7590DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB7590DC?
Enquire Now
FAQs
Yes. The LTB7590DC is designed for a 3/4" trade-size FMC conduit, featuring a 90° connector design and insulated zinc-die-cast body to ensure a secure, code-compliant termination suitable for panel wiring and machine enclosures.
The LTB7590DC carries NEC/CEC standards, Hazardous/Classified Locations ratings (Class I, Division 2; Class II Division 1 & 2; Class III), and UL certification for metallic liquidtight fittings, with cross-border compatibility for Canada and the USA.
Yes. It is rated for Hazardous/Classified Locations, including Class I, Division 2, making it suitable for electrical installations in hazardous environments while meeting applicable UL and NEC/CEC requirements.
The connector weighs only 0.03 lb and has compact dimensions (1.36 in length and height, 1.27 in width), accelerating field installation, reducing handling stress, and lowering labor time for panel builders and installers.
Specification sheets and catalogs are available through Eaton's Crouse-Hinds resources, including the Eaton Specification Sheet for LTB7590DC and the zinc die-cast liquidtight fittings catalog page for quick reference and procurement.
