Eaton Crouse-Hinds LTB7590GC Liquidator - Hazardous Locations
Part Number: LTB7590SS
Quick Summary
The Eaton Crouse-Hinds LTB7590GC Liquidator liquidtight connector provides a secure FMC connection for hazardous-location enclosures. In the field, installers often struggle to maintain enclosure integrity and meet NEC/CEC codes when routing cables in Class I/Division 2 or Class II/III environments. This connector carries NEC/CEC compliance and hazardous-area ratings, with a copper ground lug and a rugged malleable-iron body to ensure long-term reliability in demanding locations. Designed to simplify installation, it supports 3/4" trade-size fittings and lug options, reducing field wiring time and rework. By delivering a robust, compliant solution, it helps integral teams meet safety standards while accelerating panel assembly and reducing lifecycle costs.
Product Information
Extended Description

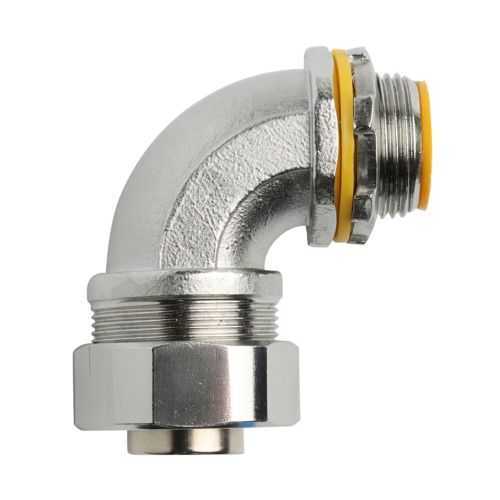

LTB7590SS Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Stainless steel, 3/4"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB7590SS
UPC
662277038287
Product Length/Depth
2.43 in
Product Height
2.43 in
Product Width
1.48 in
Product Weight
0.43 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Stainless steel
Insulator
Insulated
Trade size
3/4"
Crouse-Hinds stainless steel conduit, cable and wire management brochure
Crouse-Hinds series Steel and Stainless Steel Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB7590SS
Feature: 90° FMC liquidtight connector construction provides space-efficient routing in tight panels. Business Impact: Reduces panel footprint and installation time, improving wiring density and reliability in control enclosures. Application: Ideal for compact equipment racks and hazardous-location switchgear where 90-degree routing is required. Long-tail keywords: 90 degree liquidtight connector, FMC fittings, hazardous location wiring.Feature: Rugged malleable iron body with insulated design and copper ground lug. Business Impact: Enhances durability and ensures a solid ground path, minimizing leakage currents and grounding failures. Application: Instrument panels and process controls in Class I/II environments. Long-tail keywords: malleable iron conduit fittings, insulated connectors, copper ground lug.Feature: Lug size accommodating #4-14 AWG conductors. Business Impact: Supports common instrument and power wiring sizes, reducing the need for adapters or re-termination. Application: Field installations requiring a broad lug range in hazardous locations. Long-tail keywords: #4-14 AWG lug size, ground lug compatibility, wiring termination.Feature: 3/4" trade size and compact dimensions (2.13 in length, 2.125 in height, 1.56 in width) with modest weight (0.46 lb). Business Impact: Easy integration into crowded enclosures and minimizes added panel weight, aiding vibration resistance and ease of handling. Application: Control panels, junctions, and equipment housings in industrial sites. Long-tail keywords: 3/4" trade size, compact liquidtight connector, panel space savings.Feature: Compliance with NEC/CEC and Hazardous/Classified Locations ratings (Class I, Division 2; Class II, Division 1/2; Class III). Business Impact: Streamlines regulatory approval and inspection readiness, reducing project risk and rework. Application: Installation in hazardous-area facilities such as oil & gas, chemical processing, and mining environments. Long-tail keywords: NEC hazardous ratings, hazardous locations, regulatory compliance.Feature: Grounding and insulation integrity with copper lug and insulated body. Business Impact: Improves electrical safety margins and reduces the potential for moisture-induced faults in harsh environments. Application: Control panels and equipment housings exposed to dust, moisture, or chemical exposure. Long-tail keywords: copper ground lug, insulated connector, hazardous-location grounding.
Get a Quick Quote for a Eaton Crouse-Hinds LTB7590SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB7590SS?
Enquire Now
FAQs
The LTB7590GC is a 3/4" trade-size FMC liquidtight connector with an insulated body and copper ground lug, designed for Class I/II/III hazardous locations. It integrates with standard FMC conduits, simplifying installation and ensuring code-compliant sealing in control panels and enclosures.
This connector carries NEC/CEC standards and Hazardous/Classified Locations ratings, including Class I, Division 2; Class II, Division 1 and 2; and Class III, making it suitable for a wide range of hazardous-area applications.
The lug accepts #4-14 AWG conductors, allowing compatibility with common control and power wiring within hazardous-location panels.
Use the copper ground lug for a solid grounding path, ensure proper sealing with the insulated body, and verify 3/4" FMC connections are tightened to manufacturer torque specs to prevent moisture ingress and loosening in vibration-prone areas.
The connector measures 2.13 in in length, 2.125 in in height, and 1.56 in in width, with a weight of 0.46 lb, offering a compact footprint that fits tight enclosures and reduces panel space requirements.
