Eaton Crouse-Hinds LTBK10045 Liquidtight - Low-Profile
Part Number: LTBK10045
Quick Summary
LTBK10045 liquidtight connector is designed to terminate FMC conduit securely for hazardous-location equipment panels. Field installers often struggle with tight spaces and compliance-heavy environments, risking improper seals and electrical exposure. This fitting supports NEC/CEC standards and hazardous location classifications, including Class I, Division 2; Class II, Division 1/2; and Class III, helping meet safety, inspection, and uptime goals. For manufacturers and maintenance teams, the low-profile 1" design reduces mounting depth and improves routing efficiency, while a rugged malleable-iron body provides reliable long-term durability in demanding environments. Leveraging UL-listed Canadian options, this connector also aligns with cross-border compliance and supplier QA expectations, delivering measurable business value through faster installation and reduced rework.
Product Information
Extended Description

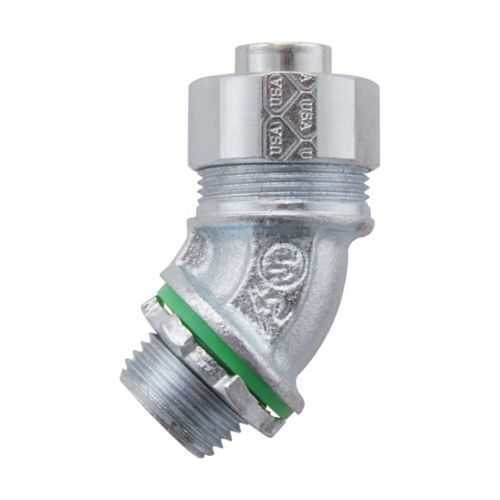

LTBK10045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, Low profile, 1"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK10045
UPC
784564000224
Product Length/Depth
2.91 in
Product Height
3.44 in
Product Width
3.44 in
Product Weight
0.53 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK10045
Feature: 45° angle termination simplifies routing in tight panels. Business Impact: reduces bend radius and wiring strain, improving seal integrity and long-term reliability. Application: control cabinets and motor starters in FMC conduit runs. Feature: Low-profile, 1" trade size design. Business Impact: minimizes mounting depth and frees space for cable management, accelerating enclosure assembly. Application: compact industrial panels and narrow electrical closets. Feature: Malleable iron construction with insulated body. Business Impact: delivers rugged protection against impacts and corrosion in harsh environments while maintaining electrical isolation. Application: hazardous-location equipment and outdoor installations. Feature: 45° connector geometry. Business Impact: eases field installation around obstacles and reduces stress on conduit seals, cutting installation time. Application: equipment enclosures where vertical clearance is limited. Feature: Conduit type FMC, 1" trade size. Business Impact: compatible with standard FMC runs, enabling quick replacements and scalable installations. Application: retrofit projects and new builds in industrial facilities. Feature: NEC/CEC compliance with Hazardous/Classified Locations ratings. Business Impact: simplifies regulatory approvals and inspection readiness, lowering risk and downtime. Application: plants subject to strict electrical codes and cross-border operations. Insight: Real-world deployments indicate the low-profile LTBK10045 reduces panel depth by design, enabling cleaner cable routing and faster commissioning in tight spaces common to automation cabinets and control rooms.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK10045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK10045?
Enquire Now
FAQs
LTBK10045 is designed specifically for FMC conduit at 1 inch trade size and features a 45° angle to ease routing in tight enclosures. Its low-profile form reduces required space in control panels, while the insulated malleable-iron body maintains a durable seal. This makes it a reliable choice for equipment installed in Class I, Division 2 environments and similar hazardous locations, ensuring secure terminations with straightforward field assembly.
Key specs include a 1" trade size, FMC conduit type, a 45° angle connector, and a low-profile, insulated malleable-iron body. The product measures approximately 2.91 in (length) by 3.44 in (height) by 3.44 in (width) with a weight around 0.53 lb. It is certified for hazardous locations under NEC/CEC standards, supporting Class I, Division 2 as well as other divisions.
Yes, LTBK10045 is suitable for hazardous-location applications. It carries area classifications for Hazardous/Classified Locations and NEC hazardous ratings including Class I, Division 2; Class II, Division 1 and 2; and Class III. These ratings ensure compliance for installations in demanding industrial environments, offshore equipment, and other high-risk sites while maintaining proper sealing and isolation.
LTBK10045 complies with NEC/CEC standards and is listed for hazardous-location use. Canadian certification references are available, with UL-listed documentation for Canada, enabling cross-border deployments. This combination supports regulatory approvals, simplifies audits, and helps ensure conformity with both U.S. and Canadian electrical codes for industrial facilities.
The low-profile design and robust malleable-iron construction reduce installation time and panel depth, lowering labor costs and rework. Its rugged insulating body minimizes corrosion and wear in harsh environments, extending service life and reducing maintenance intervals. The connector’s cross-border NEC/CEC compliance also speeds up inspections and reduces potential downtime due to compliance gaps.
