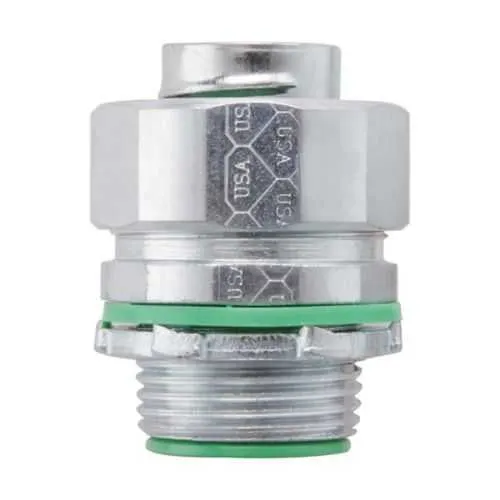

Eaton LTBK125 Liquidtight Connector - Low Profile
Part Number: LTBK125
Quick Summary
Eaton LTBK125 Liquidtight Connector provides rugged FMC sealing for hazardous-location electrical enclosures. Engineers often struggle with tight spaces and complex routing that slow installs and raise the risk of leaks. This low-profile, insulated steel connector is designed for NEC/CEC compliance and hazardous-location ratings, including Class I Division 2 and Class II/III classifications, simplifying approvals. By combining a compact footprint with a dependable seal, it reduces field rework and accelerates panel assemblies in industrial automation and power distribution. With a 1-1/4 inch trade size and straight configuration, it streamlines routing through compact panels, while its robust construction supports demanding environments. Operational cost is lowered through easier maintenance and fewer component changes over the life of the installation.
Product Information
Extended Description
LTBK125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, Straight, Insulated, Steel, Low profile, 1-1/4"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK125
UPC
784564000279
Product Length/Depth
1.84 in
Product Height
4.22 in
Product Width
4.22 in
Product Weight
0.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Steel
Insulator
Insulated
Trade size
1-1/4"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK125
Feature: Straight FMC connector with a 1-1/4 inch trade size. Business impact: Reduces bend complexity and speeds panel assembly, delivering measurable labor savings. Application: Ideal for compact control panels, machine frames, and power-distribution enclosures using FMC conduit. Feature: Low-profile design. Business impact: Frees enclosure space and simplifies component placement, reducing form-factor conflicts. Application: Beneficial where tight clearance is common in automation panels and industrial equipment. Feature: Insulated steel construction. Business impact: Provides durable sealing and temperature resistance for harsh environments, extending service life and reducing replacements. Application: Suitable for demanding factories and outdoor enclosures subject to contamination. Feature: NEC/CEC compliance with hazardous-location ratings. Business impact: Streamlines regulatory approvals and mitigates compliance risk across cross-border deployments. Application: Class I Division 2, Class II Division 1 and 2, Class III ratings support global installations in chemical plants and refineries. Feature: Broad compatibility and certified labeling. Business impact: Enables smoother procurement, reduces rework and improves maintenance planning. Application: Useful for multinational projects leveraging UL Canadian certifications and standard Eaton catalogs.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK125?
Enquire Now
FAQs
The LTBK125 is designed specifically for FMC conduit with a 1-1/4 inch trade size and a straight configuration. During installation, align the connector with the conduit, secure it to the enclosure, and use the recommended seals per Eaton’s specification sheet. This reduces leakage risk, speeds panel assembly, and improves reliability in tight spaces common to automation and control panels.
LTBK125 supports NEC/CEC compliance and hazardous-location ratings including Class I Division 2, Class II Division 1 and 2, and Class III, with area classifications for hazardous or classified locations. The insulated steel construction enhances durability and thermal resilience, helping maintain a reliable seal under challenging industrial conditions and facilitating regulatory approvals for global deployments.
Yes. The LTBK125 features a low-profile design combined with a straight 1-1/4 inch trade-size configuration, making it ideal for space-constrained panels. Its compact footprint supports closer component placement and easier routing in automation cabinets, reducing enclosure depth requirements while maintaining robust sealing against moisture and dust in FMC conduit installations.
LTBK125 meets NEC/CEC standards and hazardous-location ratings (Class I Division 2, Class II Division 1 and 2, Class III) with area classifications. It is compatible with UL-listed Canadian certifications and Eaton catalogs, enabling safer cross-border deployments without rework and aiding procurement across multinational facilities.
The LTBK125 offers faster panel builds due to its straight, low-profile design and reliable sealed connection, reducing labor costs and field rework. Its durable steel insulation resists harsh environments, extending service life and lowering maintenance downtime. Overall, it translates to lower total cost of ownership in automated production lines and heavy-industry facilities.
