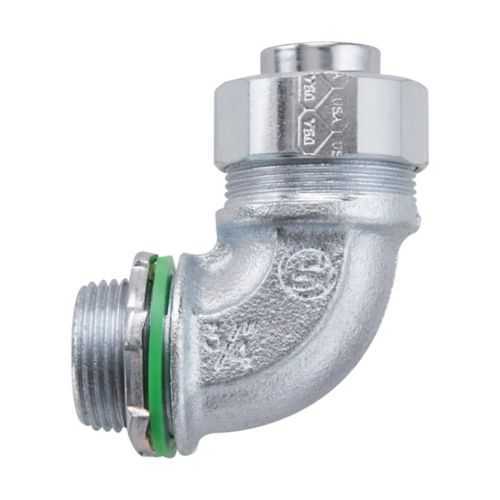

Eaton LTBK15090 Liquidtight Connector - Low Profile 90° FMC
Part Number: LTBK15090
Quick Summary
LTBK15090 is a liquidtight connector designed for FMC conduit in hazardous locations. In tight panel spaces and complex equipment layouts, installation reliability and weatherproofing often become chokepoints. It meets NEC/CEC standards and hazardous-location ratings such as Class I Division 2; Class II Division 1 and 2; Class III, ensuring safe operation in oil, gas, and chemical plants. Its low-profile form factor and rugged malleable-iron body deliver space-saving protection, while the insulated construction helps maintain integrity in challenging environments. For engineers and procurement teams, this combination translates to faster installs, fewer field failures, and easier compliance across projects.
Product Information
Extended Description
LTBK15090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, Low profile, 1-1/2"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK15090
UPC
784564000354
Product Length/Depth
3.38 in
Product Height
4.66 in
Product Width
4.66 in
Product Weight
1.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1-1/2"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK15090
Feature: 90° angle liquidtight design for FMC conduit translates to simplified routing, smaller bend radii, and faster panel wiring. Business impact: installation efficiency improves and misfits are minimized in crowded control panels. Application: ideal for OEM equipment and electrical enclosures where space is at a premium. Feature: Low-profile construction reduces panel depth and avoids interference with doors and gaskets. Business impact: tighter enclosure tolerances, easier maintenance access, and reduced tooling costs. Application: compact electrical panels and space-constrained machinery. Feature: Malleable iron body with insulated construction delivers rugged mechanical protection and reliable electrical isolation. Business impact: enhanced durability in harsh environments and improved safety in hazardous locations. Application: oil, gas, and chemical processing facilities. Feature: Trade size 1-1/2" fits standard FMC conduits with minimal need for adapters. Business impact: streamlined BOMs, faster sourcing, and straightforward field installs. Application: mid-size industrial equipment and panel feeders. Feature: NEC/CEC compliance with Class I Division 2, Class II Division 1/2, Class III ratings plus Canadian certification support. Business impact: reduces regulatory risk and supports cross-border projects. Application: regulated industrial environments and multi-site deployments. Feature: Low total weight (1.25 lb) and defined dimensions (3.38 in L, 4.66 in H, 4.66 in W) simplify handling and mounting. Business impact: faster field deployment and lower worker fatigue. Application: installation on rugged equipment cabinets and service panels.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK15090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK15090?
Enquire Now
FAQs
When installing the LTBK15090, ensure proper FMC conduit prep, gasket seating, and secure mounting to maintain a tight seal in hazardous locations. The 90° angle and low-profile body require precise alignment to prevent looseness and ensure long-term moisture and dust exclusion in compact panels.
Yes. The LTBK15090 carries NEC/CEC compliance with hazardous-location ratings including Class I Division 2, Class II Division 1/2, and Class III. These ratings support safe operation in regulated industrial environments and align with North American codes for hazardous areas.
LTBK15090 is specified for 1-1/2 inch trade size FMC conduit, and is designed to integrate with standard FMC fittings and accessories. This minimizes the need for adapters and simplifies sourcing, reducing install time on the shop floor and in the field.
The low-profile design saves panel depth, improves gasket seating, and reduces interference with doors and hardware. This translates to easier maintenance, faster assembly in dense control panels, and fewer clearance-related failures during service or upgrades.
Durable protection against dust, moisture, and hazardous exposure lowers field faults and downtime. The 1-1/2" size plus NEC/CEC compliance simplifies spare parts and regulatory alignment across sites, contributing to a lower total cost of ownership and a quicker return on investment for multi-site deployments.
