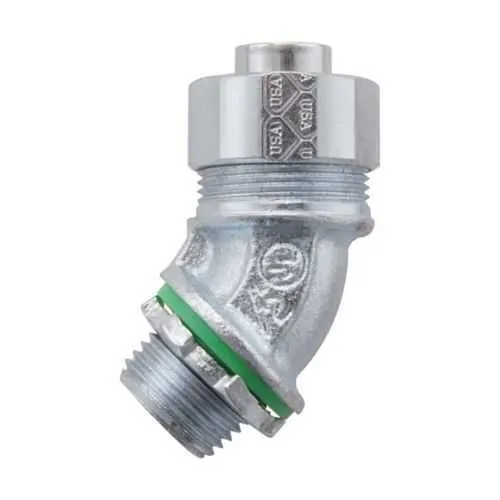

Eaton LTK Liquidtight Connector LTBK20045 - Low Profile
Part Number: LTBK20045
Quick Summary
The Eaton LTK Liquidtight connector is a 2-inch FMC fitting designed for fast, reliable enclosure entry in harsh, hazardous locations. Engineers seek compact, space-saving solutions, and this low-profile, 45° connector reduces panel intrusion while maintaining a robust seal. It carries NEC/CEC compliance with NEC hazardous ratings and Canadian certification, ensuring regulatory alignment across North American facilities. This combination supports safer installations, easier wiring, and maintenance-ready assemblies. By pairing durable malleable iron, insulated construction, and precise trade sizing with industry-standard conformance, it accelerates procurement, minimizes rework, and improves system reliability for power distribution, automation cabinets, and process-control networks.
Product Information
Extended Description
LTBK20045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, Low profile, 2"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK20045
UPC
784564000408
Product Length/Depth
3.91 in
Product Height
5.66 in
Product Width
5.66 in
Product Weight
1.55 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
2"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK20045
Feature: 45° angle, FMC conduit connection in a 2-inch trade size. Business Impact: Facilitates routing around equipment and tight panel cavities, reducing installation time and improving seal integrity. Application: Ideal for compact control panels and machine feeders where angled entries save space. Feature: Low-profile, insulated malleable iron body. Business Impact: Shrinks panel footprint while enhancing moisture and dust protection in harsh environments. Application: Suitable for confined installations in hazardous locations. Feature: Insulated, robust construction. Business Impact: Maintains dielectric integrity and resists corrosion, ensuring long-term reliability in adverse conditions. Application: Industrial processes, chemical facilities, and mining environments. Feature: NEC/CEC compliance with hazardous-location ratings (Class I Div 2; Class II/III). Business Impact: Simplifies code adherence and inspection readiness, reducing compliance risk. Application: Power distribution and automation cabinets in regulated facilities. Feature: 2" trade size with precise dimensions (3.91 in length, 5.66 in height, 5.66 in width). Business Impact: Predictable footprint supports accurate enclosure design and faster field fit-ups. Application: Systems requiring exact fit within standard FMC pathways. Feature: Broad certifications including Canadian UL certification. Business Impact: Enables cross-border procurement without redesign, lowering project timelines. Application: Global manufacturing plants and multi-site deployments.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK20045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK20045?
Enquire Now
FAQs
LTBK20045 is designed for standard FMC conduit systems and pairs with other LTK low-profile fittings. Its 2" trade size and 45° angle simplify routing in constrained enclosures, reducing the need for adapters or extensions. Proper alignment and a clean seal are key; torque to the manufacturer’s guidance to preserve the insulating and environmental protection features.
LTBK20045 carries NEC/CEC compliant designation with hazardous-location ratings including Class I, Division 2 (and related II/III classifications). It also includes Canadian certification via UL listings, and a hazardous-area area classification of Hazardous/Classified Locations, ensuring regulatory alignment across North American sites and cross-border projects.
Yes. The LTBK20045 is explicitly rated for hazardous/classified locations, including Class I Division 2, with NEC/CEC compliance and Canadian certification. It is well-suited for chemical processing environments where space is limited and reliable sealing, insulation, and durable construction are essential for long-term reliability.
The connector meets NEC/CEC standards for hazardous locations and is rated for Class I Division 2 (along with other divisions). Canadian certification is provided through UL listings, as reflected in the product’s certification documents, ensuring regulatory acceptance for Canadian projects and cross-border installations.
The low-profile design reduces panel intrusion, enabling tighter enclosures and smaller cabinet footprints. This can lower material costs and simplify heat management. Faster, tool-efficient installation reduces commissioning time, while durable malleable iron and insulation deliver longer service life, lowering maintenance costs and minimizing field rework over the system’s lifecycle.
