Eaton LTBK20090 Liquidtight Connector - Hazardous/Classified
Part Number: LTBK20090
Quick Summary
Eaton Crouse-Hinds LTK liquidtight connector provides rugged, moisture-tight termination for FMC conduits in hazardous locations. Engineers often fight limited installation space and misalignment during panel builds, which slows projects and increases rework. This high-strength, insulated 90-degree connector helps maintain seal integrity while accommodating tight bends. It meets NEC/CEC standards and offers hazard-rated performance for Class I, Division 2; Class II, Division 1 and 2; and Class III environments, with Canadian certification support. The low-profile design simplifies installations in cramped control panels and equipment rooms, while its malleable-iron construction withstands industrial vibration and temperature variations. In practice, this reduces install time, supports compliance, and lowers long-term maintenance costs in automation deployments.
Product Information
Extended Description

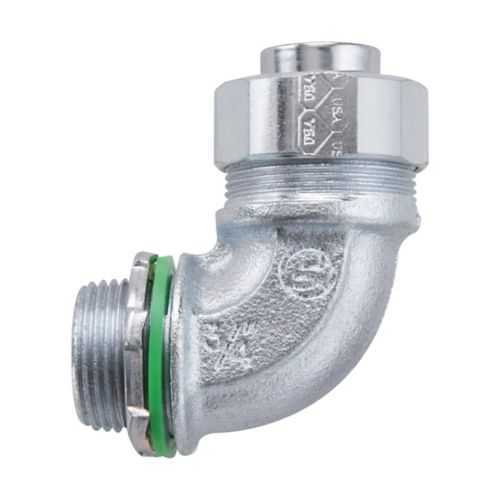

LTBK20090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, Low profile, 2"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK20090
UPC
784564000415
Product Length/Depth
4.3 in
Product Height
3.4 in
Product Width
6.7 in
Product Weight
1.85 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
2"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK20090
Feature: The 90° FMC liquidtight design minimizes bend radius, enabling shorter enclosure runs and neater wiring in automation cabinets. Business impact: faster cabinet builds and fewer rework items due to routing errors in control panels and machines. Application: ideal for tight spaces where conventional fittings would require additional clearance. Feature: Malleable iron construction with an insulated housing delivers rugged mechanical protection and reliable insulation. Impact: improved seal integrity under vibration and temperature swings, reducing failure risk in harsh industrial environments. Application: heavy-duty process lines and outdoor or factory floor installations. Feature: Low-profile footprint reduces protrusion into crowded enclosures. Impact: easier fit with other components, faster assembly, and better space utilization in space-constrained panels. Application: automation cabinets and switchgear with tight clearances. Feature: Area classification support with NEC hazardous ratings Class I Div 2, Class II Div 1/2, and Class III. Impact: ensures regulatory compliance and reduces inspection findings. Application: hazardous-area installations. Feature: 2" trade size with 4.3" length, 3.4" height, 6.7" width and 1.85 lb weight facilitates accurate BOM planning. Impact: simplifies inventory management and field provisioning. Application: assembly lines and service fleets relying on consistent fittings. Insight: Leveraging Eaton Specification Sheet LTBK20090 accelerates correct installation practices and compatibility across the LTK low-profile family.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK20090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK20090?
Enquire Now
FAQs
LTBK20090 is designed for FMC conduit and hazardous-location use, offering a 90° elbow that fits tight spaces. Ensure alignment with the enclosure and use appropriate sealing gaskets and tightening torque per the Eaton specification sheet to maintain a continuous seal in Class I, Division 2 environments.
The connector is 4.3 inches long, 3.4 inches high, and 6.7 inches wide, with a weight of approximately 1.85 pounds. It is a 2-inch trade-size fitting, suitable for mid-to-large FMC conduit runs in compact installations.
Yes. The LTBK20090 carries NEC hazardous ratings for Class I, Division 2, along with Class II Division 1 and 2 and Class III, aligning with NEC/CEC requirements and supporting Canadian certifications for multi-region deployments.
The connector adheres to NEC/CEC standards with hazardous-location ratings. It is designed for Hazardous/Classified Locations and has Canadian certification support, ensuring compliance across North American plant environments.
A low-profile, 90° design reduces space conflicts and allows faster wiring, decreasing cabinet-build time. Rugged malleable-iron construction and insulation improve durability, reducing maintenance and replacement needs in harsh environments, which translates to lower total cost of ownership.
