Eaton LTBK5045 LTK Liquidtight Connector - Class I Div 2
Part Number: LTBK5045
Quick Summary
LTK liquidtight connector by Eaton delivers a rugged FMC solution for industrial installations in hazardous locations. Many engineers struggle with space constraints and mounting clearance in enclosures, which this low-profile design helps alleviate. It carries NEC/CEC compliance with hazardous location ratings, including Class I Division 2, Class II Division 1 and 2, and Class III. For buyers focusing on installation speed and regulatory confidence, this connector pairs with 1/2 inch FMC conduit, offering reliable sealing and durable metal construction. In practice, contractors gain faster wiring runs and consistent performance under demanding conditions. Its 45° angle orientation reduces bend radius and simplifies routing in crowded panels. The low-profile body and insulated construction help maintain enclosure integrity and minimize heat buildup. Overall, it supports quicker, safer installs with strong lifecycle value.
Product Information
Extended Description

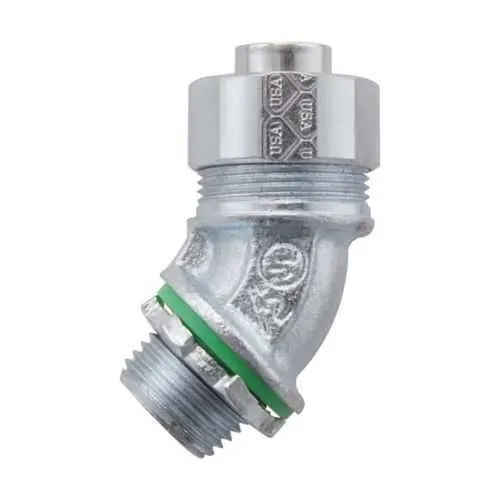

LTBK5045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, Low profile, 1/2"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK5045
UPC
784564000101
Product Length/Depth
2.34 in
Product Height
2.22 in
Product Width
2.22 in
Product Weight
0.21 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1/2"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK5045
Feature: The LTBK5045 delivers a 45° FMC liquidtight connector with a low-profile body. Business impact: The angled design reduces bend radius, enabling faster wiring and fewer mounting supports, especially in crowded panels. Application: Ideal for machine controls, panel feeds, and field installations where space is limited and reliable sealing is essential in hazardous environments. Feature: Malleable iron construction with insulated body. Business impact: Provides rugged durability and moisture sealing to protect conductors against vibration, impact, and corrosion in harsh environments, lowering maintenance costs and downtime. Application: Chemical plants, oil and gas facilities, and mining operations where equipment experiences heavy use and temperature swings. Feature: 1/2 inch trade size with compact footprint (2.34 in long, 2.22 in high, 2.22 in wide) and a light 0.21 lb weight. Business impact: Simplifies stocking and field replacement by aligning with common FMC components, accelerating installation and reducing inventory costs. Application: Wiring runs in control panels, compact machinery, and hazardous locations where space is constrained. Feature: NEC/CEC compliance with hazardous-location ratings including Class I Division 2, Class II Division 1 and 2, and Class III. Business impact: Enables safe operation in regulated environments and supports project approvals, reducing compliance risk and rework. Application: Electrical installations in chemical plants, refineries, water treatment, and other facilities requiring certified fittings for hazardous areas. Feature: Compatibility with FMC conduit types and a fixed 45° orientation simplifies field routing. Business impact: Reduces installation errors and rework by providing a consistent, pre-aligned connection. Application: New installations and retrofit projects in industrial plants, where quick, repeatable connections improve overall project timelines and reliability. Feature: High-quality Eaton construction and widely cataloged specs support long service life and straightforward parts replacement. Business impact: Fewer field failures, lower maintenance costs, and predictable budgeting across asset lifecycles. Application: Refurbishment projects and new builds across manufacturing, process industries, and energy sectors where reliability and supplier support matter.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK5045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK5045?
Enquire Now
FAQs
LTBK5045 is designed for 1/2 inch FMC conduit and insulated malleable iron construction, delivering a tight seal and robust mechanical connection. It supports Hazardous/Classified Locations per NEC/CEC with Class I Division 2 ratings, making it suitable for chemical plants, refineries, and mining installations. It integrates with standard FMC fittings for straightforward field assembly.
The 45° angle orientation reduces bend radius and clearance requirements, enabling cleaner routing through crowded electrical panels and confined enclosures. This translates to fewer mounting hooks and supports, faster terminations, and less time spent aligning straight fittings in the field, all while preserving a watertight, code-compliant seal.
Yes. The LTBK5045 carries NEC/CEC compliance with hazardous-location ratings, including Class I Division 2, Class II Division 1 and 2, and Class III, along with area classifications for Hazardous/Classified Locations. This alignment supports safe installation in chemical processing, mining, and energy facilities and helps streamline project approvals and regulatory audits.
Key dimensions for LTBK5045 include length 2.34 in, height 2.22 in, width 2.22 in, and weight 0.21 lb. The 1/2 inch trade size aligns with standard FMC conduit, and the UPC is 784564000101. These specs help engineers quickly verify fit and plan mounting clearances during design reviews. The rugged malleable iron body and insulated construction further support long-term reliability.
LTBK5045’s low-profile, 45° orientation reduces enclosure footprint and minimizes hardware while maintaining sealed connections, speeding installations and reducing labor costs. Its NEC/CEC and Class I Division 2 ratings help meet regulatory requirements from the outset, lowering risk of noncompliance fines and maintenance downtime. Quick, reliable field service translates into measurable ROI over asset lifecycles.
