Eaton LTBK5090 Liquidtight Connector - Low Profile
Part Number: LTBK5090
Quick Summary
LTBK5090 is a liquidtight connector for FMC conduits used in hazardous locations. Engineers often struggle to seal terminations in demanding environments while meeting NEC/CEC requirements and UL certifications. This low-profile, insulated malleable-iron fitting is rated for Hazardous/Classified Locations with NEC Class I, Division 2; Class II, Division 1 and 2; Class III, and it carries UL-listed certification for hazardous areas. The combination of a 1/2 inch trade size, compact footprint, and 1.66 inch length supports tight installations in congested control panels and equipment bays. By choosing this connector, maintenance and procurement teams can improve installation efficiency, reduce enclosure intrusion, and stay compliant across industrial facilities.
Product Information
Extended Description

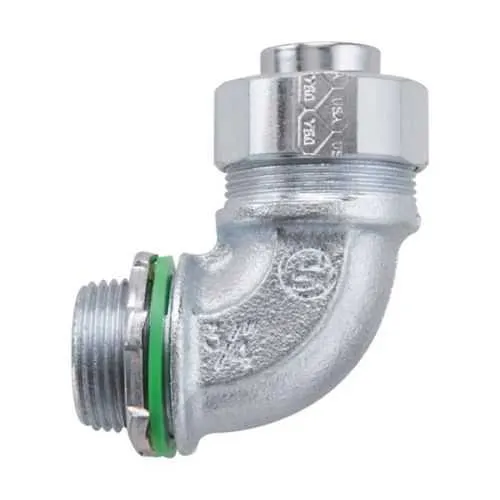

LTBK5090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, Low profile, 1/2"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK5090
UPC
784564000118
Product Length/Depth
1.66 in
Product Height
2.38 in
Product Width
2.31 in
Product Weight
0.24 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1/2"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings UL certification
LTK Low Profile Liquidtight Fittings UL certification
Eaton Specification Sheet - LTBK5090
Feature → Business Impact → Application: The LT BK5090 offers a 90° FMC connection that simplifies routing in compact control panels, reducing wiring complexities and enabling faster panel builds—translating to lower labor costs and shorter downtime during commissioning. This low-profile design minimizes enclosure intrusion and gland clearance issues, improving access for future inspections and service. Feature → Business Impact → Application: Malleable iron with insulated construction delivers rugged durability and enhanced protection against environmental ingress, which reduces maintenance cycles and replacement costs in harsh production areas. Feature → Business Impact → Application: A 1/2" trade size aligns with common FMC conduit sizing, enabling seamless compatibility with existing hardware and inventory, thereby lowering total cost of ownership and inventory carrying. Feature → Business Impact → Application: NEC/CEC compliance and hazardous-location ratings (Class I, Division 2; Class II/III) provide regulatory assurance and easier risk management during audits and plant reviews. Feature → Business Impact → Application: The low-profile, 90° configuration supports installation in tight spaces around equipment cabinets and sub-panels, improving airflow and containment while maintaining code compliance. Feature → Business Impact → Application: UL certification integration provides third-party validation, reducing procurement risk and speeding up approval cycles for industrial projects. Industry context: This connector suits FMC conduit installations in chemical, oil, gas, and manufacturing facilities where safety-critical connections and compact form factors are essential.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK5090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK5090?
Enquire Now
FAQs
Yes. The LTBK5090 is specified for FMC conduit and features a 1/2 inch trade size with a 90° angle, designed to integrate with common FMC fittings and standard enclosures. Its low-profile footprint helps fit into tight panel spaces, while remaining compatible with existing fastening patterns and installation practices used in industrial facilities.
The connector is rated for Hazardous/Classified Locations per NEC/CEC, including Class I, Division 2; Class II, Division 1 and 2; Class III. It is insulated and made of malleable iron, offering robust protection against environmental ingress. These ratings support compliance during audits and reduce risk when used in hazardous-area installations alongside UL-certification.
Industries with stringent safety and regulatory requirements—such as chemical processing, oil and gas, and heavy manufacturing—benefit most. The low-profile 1/2" FMC liquidtight connector enables reliable terminations in compact equipment cabinets, pump skids, and in-panel junctions where space is at a premium and hazardous-location compliance is mandatory.
LTBK5090 carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2 and related Class II/III classifications, complemented by UL certifications for hazardous areas. These certifications simplify regulatory approvals, enhance product traceability, and reduce risk during procurement and installation by ensuring third-party validation.
Using LTBK5090 can lower maintenance costs through durable materials (malleable iron) and insulated construction that resist harsh environments, reducing replacement frequency. The low-profile design saves panel space and simplifies future inspections. Standard 1/2" FMC sizing lowers inventory needs and speeds up future repairs, improving overall project ROI.
