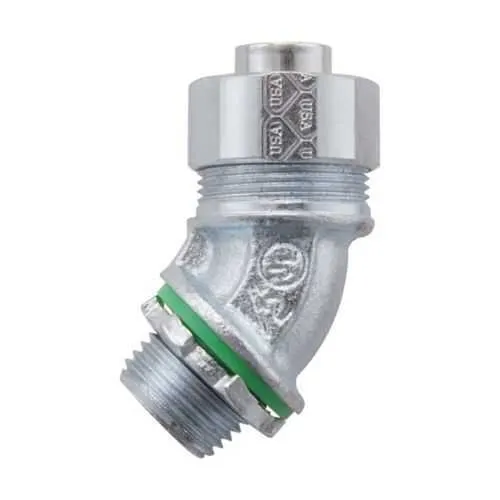

Eaton LTBK7545 Liquidtight Connector - Hazardous/Classified
Part Number: LTBK7545
Quick Summary
LTBK7545 liquidtight connector provides a robust FMC termination for hazardous-location equipment, enabling secure, compliant wiring in industrial settings. When space is tight and installation windows are short, its low-profile 45° design minimizes clearance issues and speeds assembly. This connector is rated for Hazardous/Classified Locations under NEC/CEC and UL-listed for Low Profile Liquidtight Fittings, supporting essential safety and regulatory compliance. In automation environments, that translates to faster panel builds, fewer site adjustments, and predictable safe operation. The combination of rugged malleable iron, insulated construction, and a 3/4" trade size delivers reliable performance across demanding installations while maintaining compatibility with standard FMC conduits and Eaton Crouse-Hinds ecosystems.
Product Information
Extended Description
LTBK7545 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, Low profile, 3/4"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK7545
UPC
784564000163
Product Length/Depth
2.5 in
Product Height
2.81 in
Product Width
2.81 in
Product Weight
0.31 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3/4"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings UL certification
LTK Low Profile Liquidtight Fittings UL certification
Eaton Specification Sheet - LTBK7545
Feature: Low-profile 2.5 inch length helps keep panel envelopes compact and simplifies routing in cramped electrical spaces. Business Impact: Reduces install time and trim requirements, improving overall project schedules. Application: Control panels, junction boxes, and equipment enclosures in tight automation spaces. Feature: 45° angle connector orientation facilitates neat FMC terminations around obstacles and bends. Business Impact: Minimizes bending radius and reduces cable strain, enhancing reliability. Application: Equipment racks and machine frames where space is at a premium. Feature: Malleable iron body with insulated construction. Business Impact: Delivers rugged durability in harsh industrial environments while protecting conductors from environmental exposure. Application: Manufacturing lines, processing plants, and outdoor installations. Feature: 3/4 inch trade size for broad compatibility with common FMC installations. Business Impact: Streamlines procurement and stock alignment with standard conduit fittings. Application: Typical industrial automation and process control wiring. Feature: Hazardous Location and NEC/CEC certifications. Business Impact: Ensures regulatory compliance and safe operation in Class I, Division 2 and related environments, reducing risk and inspection delays. Application: Hazardous locations in refineries, chemical plants, and energy facilities. Feature: Lightweight at 0.31 lb with compact dimensions. Business Impact: Easier handling and faster field adjustments, lowering labor costs. Application: On-site maintenance and retrofit projects where weight matters. Overall, LTBK7545 integrates with FMC conduit ecosystems, offering a proven balance of space efficiency, ruggedness, and regulatory confidence needed for modern industrial automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK7545
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK7545?
Enquire Now
FAQs
LTBK7545 is designed for FMC conduit terminations in hazardous or classified locations. It carries NEC/CEC compliance and UL certification, making it suitable for Class I, Division 2 environments as well as related classifications. Its 3/4 inch trade size and 45° orientation support tight routing in control panels, process enclosures, and equipment housings, reducing space and installation time while maintaining safety margins.
The 45° connector orientation enables smoother bends and clearance around components, lowering bending radii and potential conduit damage. This translates to easier field routing, fewer installation errors, and improved reliability in compact control cabinets and machinery frames where straight fittings would require excessive panel modification.
Yes. LTBK7545 carries UL certification and NEC/CEC compliance for low-profile liquidtight fittings, with area classification suitable for hazardous locations. This affirms adherence to safety standards, supports formal inspections, and helps ensure compliance across North American automation facilities.
The rugged malleable iron, insulated body and compact form factor contribute to durable service life in harsh environments, reducing replacement frequency. Its lightweight design facilitates faster in-field installations and easier maintenance. By enabling reliable FMC terminations in hazardous areas, it supports long-term cost savings through lower labor costs and reduced downtime.
Ensure FMC conduit is 3/4 inch compatible and that mounting provides the 2.5 inch length and 2.81 inch width/height fit. Use appropriate hardware and seals per system guidelines, confirm NEC/CEC and UL certifications for the specific location, and align with Eaton Crouse-Hinds compatibility to maintain continuity with existing fittings and panels.
