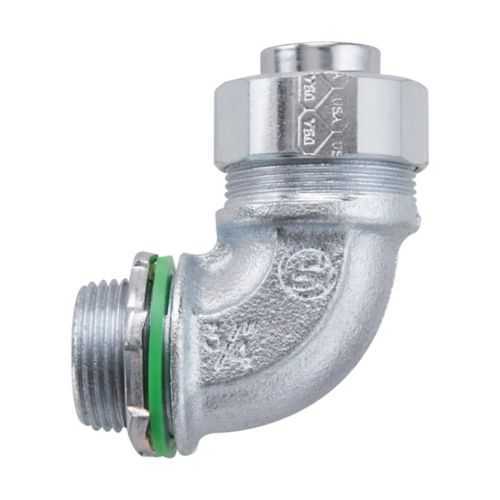

Eaton LTBK7590 Liquidtight Connector - Low Profile
Part Number: LTBK7590
Quick Summary
LTBK7590 is a liquidtight connector designed for FMC conduit applications in hazardous and classified locations. In field projects, installers often struggle with bulky fittings that hinder access and staging under tight clearances. This low-profile, 90° angle fitting reduces enclosure footprint and simplifies routing in crowded panels and junction boxes. It carries NEC/CEC conformity and includes Hazardous/Classified Locations ratings, with Class I, Division 2 and Class II/III provisions, plus Canadian certification options. By combining compact geometry with robust malleable iron construction, it delivers durable protection while streamlining inventory and labor. Use cases include control panels, motors, and process equipment where space is at a premium and reliability is non-negotiable.
Product Information
Extended Description
LTBK7590 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, Low profile, 3/4"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTBK7590
UPC
784564000170
Product Length/Depth
1.78 in
Product Height
2.91 in
Product Width
2.81 in
Product Weight
0.36 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3/4"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTBK7590
Feature → Business Impact → Application: 90° angle liquidtight connector enables tight-space routing, reducing enclosure size and installation time in FMC conduit systems for hazardous locations. This supports faster commissioning and lower labor costs on dense panels in refinery, chemical, and mining environments. Feature → High-quality malleable iron body and insulated construction provide mechanical strength and moisture resistance, improving durability in harsh industrial settings and lowering rework risk during maintenance. Feature → 3/4" trade size with precise threading ensures secure conduit interface, minimizing leak paths and improving dust/moisture protection in outdoor or wet environments. Feature → Low-profile design reduces mounting footprint on equipment cabinets, ideal for compact control panels and retrofit projects where space is limited. Feature → NEC/CEC compliance and Class I, II, III hazardous-location ratings address regulatory and safety requirements, supporting audit readiness and cross-border installations. Feature → Canadian certification options extend market reach and simplify international projects for process facilities, OEMs, and panel builders.
Get a Quick Quote for a Eaton Crouse-Hinds LTBK7590
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTBK7590?
Enquire Now
FAQs
LTBK7590 is certified for Hazardous/Classified Locations with NEC hazardous ratings including Class I, Division 2, Class II Division 1 and 2, and Class III. It also aligns with NEC/CEC standards and offers Canadian certification options, making it suitable for cross-border industrial deployments in chemical plants, refineries, and other demanding environments.
Yes, the LTBK7590 is a 3/4 inch trade-size FMC liquidtight connector. It features dimensions of 1.78 in (length) × 2.91 in (height) × 2.81 in (width) and weighs approximately 0.36 lb, providing a compact, robust fitting for space-constrained installations.
The low-profile profile reduces the mounting footprint on enclosures and panels, enabling easier routing of FMC conduit in crowded control cabinets and retrofit projects. This translates to faster assembly, simplified wiring management, and reduced risk of interference with nearby components.
Install the LTBK7590 by aligning with the FMC conduit, securing with compatible fittings, and ensuring proper enclosure sealing per NEC/CEC guidelines. Verify Class I, II, III ratings are appropriate for the site, and confirm any Canadian certification requirements for regional use. Ensure torque and sealing specifications are followed to maintain integrity in moisture-prone environments.
The LTBK7590 reduces field labor with its straightforward 90° mating and compact form factor, lowering installation time and inventory counts for hazardous-location projects. Its durable malleable iron construction and insulated body resist environmental wear, reducing maintenance cycles and lifecycle costs while improving reliability in harsh industrial settings.
