Eaton LTK10090 Liquidtight Connector - Class I/Div 2
Part Number: LTK10090
Quick Summary
LTK10090 liquidtight connector provides rugged, reliable FMC conduit connections for hazardous-location installations. Too often, tight spaces and incomplete seals lead to leaks, maintenance delays, and safety concerns on critical lines. This part supports NEC/CEC compliance and hazardous location ratings, including Class I, Division 2 (with additional Class II and III coverage in compatible configurations), helping you meet strict industrial codes with confidence. Designed by Eaton Crouse-Hinds, it features a compact, low-profile form that minimizes protrusion in crowded panels and enables faster, safer installations across oil refineries, chemical plants, and mining sites. Its proven construction translates to lower lifecycle costs and reduced maintenance.
Product Information
Extended Description

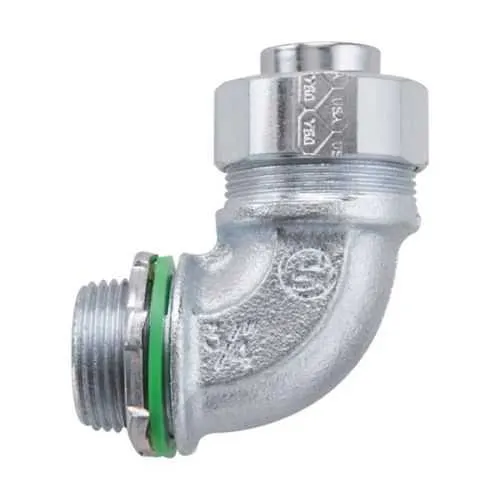

LTK10090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LTK liquidtight connector, FMC, 90° angle, Non-insulated, Malleable iron, Low profile, 1"
Product Name
Eaton Crouse-Hinds series LTK liquidtight connector
Catalog Number
LTK10090
UPC
784564000200
Product Length/Depth
2.19 in
Product Height
3.53 in
Product Width
3.44 in
Product Weight
0.68 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Non-insulated
Trade size
1"
Special features
Low profile
Crouse-Hinds series LTK Low Profile Liquidtight Fittings catalog page
LTK Low Profile Liquidtight Fittings Canadian certification
LTK Low Profile Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTK10090
The 90° FMC liquidtight design with a malleable iron body delivers a rugged elbow connection that fits into tight enclosures, reducing installation time and rework by providing precise alignment and a dependable seal. It is well-suited for panel penetrations and equipment enclosures in manufacturing plants, chemical facilities, and mining operations where space is limited and reliability matters. Regulatory readiness is built in: NEC/CEC compliance and hazardous-location ratings help you stay compliant with minimal field documentation. With Class I, Division 2 (and related classifications in compatible configurations), you can confidently deploy this connector in oil, gas, and chemical processing areas without swapping hardware. The non-insulated, low-profile construction offers straightforward field servicing and reduced snag risk in busy switchgear. Size and weight are optimized for handling: 1 inch trade size, 2.19 in length, 3.53 in height, and 3.44 in width, with a compact 0.68 lb weight for easier installation. Availability of Eaton catalogs, spec sheets, and certification reports ensures fast procurement and traceable compliance documentation for QA processes.
Get a Quick Quote for a Eaton Crouse-Hinds LTK10090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTK10090?
Enquire Now
FAQs
LTK10090 is specifically designed for FMC conduit and a 1 inch trade size. Its 2.19 inch depth, 3.53 inch height, and 3.44 inch width provide a defined fit, while the 0.68 lb weight supports easy field handling and reliable, tight seals in harsh environments.
LTK10090 carries NEC/CEC compliance with hazardous-location ratings including Class I, Division 2, and compatible configurations can extend to Class II and Class III. This enables safe installation in chemical, oil and gas, and mining environments while meeting regulatory requirements.
Commonly installed at panel penetrations and equipment enclosures in chemical plants, refineries, and other industrial facilities. Its 90° elbow and low-profile design simplify routing in crowded spaces, improving reliability in tight, vibration-prone areas.
LTK10090 adheres to NEC/CEC standards for hazardous locations and is supported by certification documents from UL. This helps expedite approvals and ensures traceable compliance data for QA and regulatory audits.
The 90° elbow, durable malleable iron, and low-profile form minimize protrusion and handling challenges in confined spaces. Referencing the Eaton specification sheet and catalog pages streamlines pre-install planning, ensuring quick, compliant field assembly with reduced rework.
