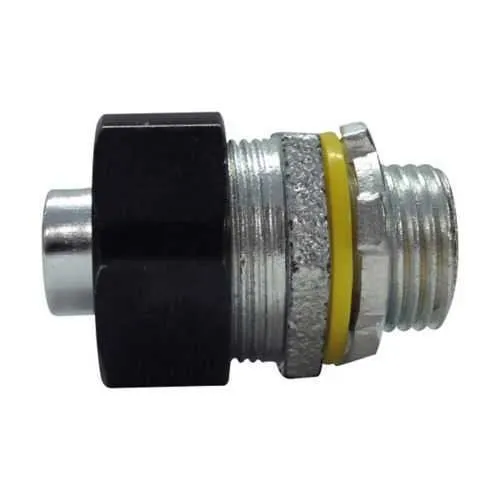

Eaton LTQ50 LiQuik Liquidtight Connector - Class I/II/III
Part Number: LTQ50
Quick Summary
LTQ50 LiQuik liquidtight connector from Eaton provides secure, code-compliant conduit connections for hazardous-location applications. Engineers often struggle with fast, leak-proof installations in demanding Class I/II environments, especially where space is tight and inspections are routine. This model carries NEC/CEC compliance and UL-listed certifications for LiQuik no-disassembly fittings, along with clear hazardous-location ratings. Together, these credentials streamline procurement, speed up commissioning, and reduce rework while delivering durable protection in rugged industrial settings.
Product Information
Extended Description
LTQ50 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LiQuik LTQ liquidtight connector, FMC, Straight, Non-insulated, Malleable iron, 1/2"
Product Name
Eaton Crouse-Hinds series LiQuik LTQ liquidtight connector
Catalog Number
LTQ50
UPC
662277000123
Product Length/Depth
1.81 in
Product Height
1.25 in
Product Width
1.25 in
Product Weight
0.18 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Malleable iron
Insulator
Non-insulated
Trade size
1/2"
Crouse-Hinds series LiQuik No Disassembly Liquidtight Fittings catalog page
LiQuik No Disassembly Liquidtight Fittings UL certification
LiQuik No Disassembly Liquidtight Fittings UL certification
Eaton Specification Sheet - LTQ50
Feature: Straight FMC LiQuik LTQ50 body made from malleable iron provides rugged mechanical strength and a reliable seal. Business Impact: Reduces maintenance intervals and improves reliability in harsh environments, lowering total cost of ownership. Application: Suitable for rugged manufacturing floors, chemical plants, and water treatment facilities where vibration and moisture are common. Feature: Non-insulated insulator minimizes material complexity while maintaining a compact footprint. Business Impact: Simplifies installation in tight spaces and simplifies insulation handling in confined areas. Application: Pipe racks and confined spaces in offshore platforms or refineries. Feature: 1/2" trade size with a compact 1.81 in length and 1.25 in width/height (0.18 lb weight). Business Impact: Improves routing efficiency and enables precise layout planning, reducing conduit misfits and rework. Application: Electrical rooms, control panels, and machine enclosures. Feature: NEC/CEC compliance and UL listings for LiQuik no-disassembly fittings. Business Impact: Accelerates approvals, ensures regulatory alignment, and minimizes procurement risk. Application: Projects targeting NEC/CEC compliance across North America and UL-certified installations. Feature: Compatibility with FMC conduits and straight connector configuration. Business Impact: Enhances installation speed and simplifies field adjustments. Application: Panel wiring and field installs in hazardous locations. Insight: The LiQuik family is known for streamlined assembly, reducing on-site labor time by eliminating unnecessary disassembly steps while maintaining seal integrity in harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds LTQ50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTQ50?
Enquire Now
FAQs
LTQ50 is designed for FMC conduit with a straight LiQuik configuration, offering a robust malleable iron body and non-insulated insulator. Its 1/2 inch trade size and compact profile support secure, code-compliant connections in hazardous locations, reducing field adjustments and ensuring a reliable seal in Class I/Division 1 environments.
LTQ50 carries NEC/CEC compliance for hazardous locations and UL certifications for LiQuik no-disassembly fittings, including Class I, Division 2; Class II, Division 1/2; and Class III ratings. These certifications help streamline procurement, validation, and installation approvals across North American facilities.
Yes. As part of the LiQuik family, LTQ50 supports straightforward assembly with a straight connector design, reducing disassembly needs and field rework. This leads to faster commissioning, fewer lockout steps, and less downtime during panel wiring and control enclosure installations in hazardous locations.
LTQ50 carries UL-based certifications appropriate for North American markets, including UL-listed fittings. For Canada-specific compliance, verify the UL Canada listing referenced in the product documentation and confirm local authority approvals prior to installation.
LTQ50 has a length of 1.81 inches, a width of 1.25 inches, a height of 1.25 inches, and a weight of 0.18 pounds. These compact dimensions support tight conduit routing, enabling tighter panel layouts and easier clearance in crowded electrical rooms without compromising seal integrity in hazardous areas.
