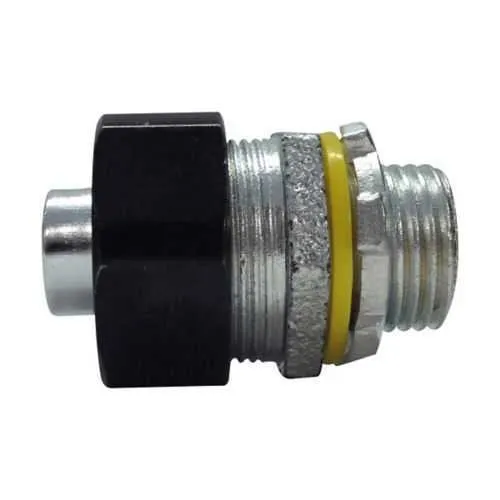

Eaton LTQB100 LiQuik FMC Connector - Hazardous Locations
Part Number: LTQB100
Quick Summary
LTQB100 LiQuik liquidtight connector from Eaton provides a rugged FMC straight fitting for hazardous-location control panels. In harsh production environments, installers contend with seals that degrade from vibration, moisture, and tight space routes, causing leaks and downtime. This unit meets NEC/CEC requirements and is rated for Class I, Division 2 as well as Class II and III locations, helping you stay compliant while simplifying approvals. With a 1" trade size and a malleable iron, insulated body, it delivers durable sealing and long service life, reducing maintenance cycles and warranty exposure. The combination of precise dimensions and robust construction supports faster wiring and easier field assembly, delivering tangible business value in safety-critical applications.
Product Information
Extended Description
LTQB100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LiQuik LTQ liquidtight connector, FMC, Straight, Insulated, Malleable iron, 1"
Product Name
Eaton Crouse-Hinds series LiQuik LTQ liquidtight connector
Catalog Number
LTQB100
UPC
662277000215
Product Length/Depth
2.13 in
Product Height
1.81 in
Product Width
1.81 in
Product Weight
0.36 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Crouse-Hinds series LiQuik No Disassembly Liquidtight Fittings catalog page
LiQuik No Disassembly Liquidtight Fittings UL certification
LiQuik No Disassembly Liquidtight Fittings UL certification
Eaton Specification Sheet - LTQB100
Feature: Straight FMC connector designed for 1" trade size installations. Business impact: simplifies routing in compact control panels and reduces installation time. Application: ideal for straight-line FMC conduit runs in hazardous-location enclosures. The LTQB100’s rugged construction translates to lower commissioning risk and fewer field rework instances. Long-tail keywords addressed: LiQuik straight liquidtight connector, FMC conduit fittings, 1 inch liquidtight connector, hazardous location FMC, Eaton LiQuik connectors. Feature: Insulated malleable-iron body with a durable seal. Business impact: improves corrosion resistance and environmental sealing in harsh industrial settings, lowering maintenance costs and extending service life. Application: chemical plants, mining equipment, and refineries where moisture and vibration are common. Feature: 1" trade size with compact dimensions (2.13 in length, 1.81 in height, 1.81 in width) and 0.36 lb weight. Business impact: easier handling and faster field installation, reducing labor hours. Application: panel assemblies with tight clearances and frequent plug-and-seal cycles. Feature: NEC/CEC compliance and hazardous-location rating. Business impact: reduces compliance risk and accelerates approvals during audits. Application: general industrial installations in Class I/II/III environments. Feature: Compatibility with LiQuik family fittings and standard UL-certified specifications. Business impact: seamless integration into existing LiQuik installations, predictable performance, and simplified spare parts management. Application: ongoing maintenance programs and retrofits, ensuring consistent performance across asset fleets.
Get a Quick Quote for a Eaton Crouse-Hinds LTQB100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTQB100?
Enquire Now
FAQs
LTQB100 is designed for 1" FMC conduit in straight installations. Ensure the conduit is clean and fully seated into the insulated malleable-iron body, follow LiQuik guidelines for sealing, and verify alignment before tightening to the recommended torque. This approach minimizes leaks and rework during panel wiring.
Key specs include 1" trade size, 2.13 in length, 1.81 in height, 1.81 in width, and a weight of 0.36 lb. Conduit type is FMC, connector type Straight, material is malleable iron with an insulated body. UPC: 662277000215. These factors contribute to reliable sealing, mechanical stability, and predictable installation in hazardous locations.
Yes. LTQB100 is rated for hazardous/classified locations per NEC/CEC, with NEC hazardous ratings including Class I, Division 2 and Class II/III designations. This makes it appropriate for installations requiring compliance and safety in hazardous environments such as chemical processing, oil, and mining applications.
LTQB100 is listed under NEC/CEC standards and has UL certifications for LiQuik fittings. Access the Eaton specification sheet LTQB100 and UL certification pages referenced in the product downloads for full test data, installation guidance, and compliance statements.
The LTQB100’s durable insulated malleable-iron construction, along with NEC/CEC compliance for hazardous locations, reduces maintenance cycles and inspection findings. Its robust sealing and reliable performance translate to lower downtime, more predictable wiring results, and improved asset uptime in safety-critical equipment.
