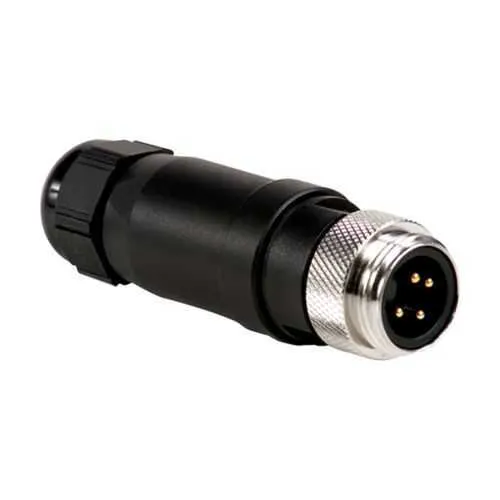

Eaton Crouse-Hinds MF3C1 Mini-Line field attachable - IP68
Part Number: MF3C1
Quick Summary
MF3C1 is a field-attachable LynxPOWER connector that enables reliable three-pole power connections in industrial wiring applications. Many engineers struggle with rugged, weatherproof terminations that are difficult to install and maintain in the field. It meets IP68 ingress protection and NEC/CEC IEC standards, with NEMA 6P ratings supporting dependable performance in harsh environments. By supporting 0.20–0.48 inch cables and #16 AWG conductors, MF3C1 enables faster, safer field terminations and longer lifecycle in control panels and equipment rooms. The nickel-plated brass design delivers durable corrosion resistance, while its passive, internal-thread connector configuration simplifies installation across LynxPOWER mini-line systems. This combination reduces maintenance downtime and lowers total cost of ownership for automated facilities.
Product Information
Extended Description
MF3C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable, 13A, 0.20-0.48", #16 AWG, Female, internal thread, straight, Passive, Nickel-plated brass, Three-pole, Style I
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable
Catalog Number
MF3C1
UPC
662275960078
Product Length/Depth
3.54 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
6P 1 4 13 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Three-pole
Style
Style I
Gender
Female
Configuration
Female, internal thread, straight
Cable range
0.20-0.48"
Cable/wire size
#16 AWG
Material
Nickel-plated brass
Amperage Rating
13 A
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - MF3C1
Feature: Amperage rating of 13 A supports typical automation loads in control panels and small motor circuits. Business Impact: Enables correct sizing without overspecifying parts, reducing material cost and inventory complexity. Application: Use in LynxPOWER Mini-Line harnesses to streamline panel wiring. Feature: Three-pole, Style I, female, internal thread, straight configuration standardizes mating and simplifies installation. Business Impact: Improves reliability and reduces commissioning time by ensuring consistent connections during field assembly. Application: Suitable for plug-and-play cordsets in control and power distribution networks. Feature: IP68 ingress protection combined with NEMA 6P ratings. Business Impact: Delivers washdown and harsh-environment durability, lowering failure rates in manufacturing and packaging lines. Application: Ideal for environments with moisture, dust, or frequent cleaning. Feature: Nickel-plated brass body provides corrosion resistance. Business Impact: Extends service life in challenging environments, lowering replacement costs. Application: Field assemblies exposed to moisture or mild chemicals. Feature: Cable range 0.20–0.48 inches with #16 AWG conductors. Business Impact: Enables flexible field terminations with common industrial cables, reducing cabling waste. Application: Quick terminations in field wiring for LynxPOWER connectors.
Get a Quick Quote for a Eaton Crouse-Hinds MF3C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds MF3C1?
Enquire Now
FAQs
MF3C1 uses a female internal-thread, straight connector with a 0.20-0.48 inch cable range and #16 AWG conductors. For best results, pair with a compatible LynxPOWER receptacle, align the three-pole mating faces, and torque to the specified value to ensure a reliable IP68 seal and long lifecycle in control panels and harnesses.
MF3C1 is rated for 13 A in a three-pole configuration, with passive connector type. It uses nickel-plated brass for durability, features IP68 protection, and aligns with NEC/CEC IEC standards. The connector is designed for field termination with internal threading and Style I orientation, ensuring consistent performance in automation assemblies.
Yes. MF3C1 carries IP68 ingress protection and a NEMA 6P rating, making it well-suited for washdown and harsh environments found in manufacturing, packaging, and outdoor automation applications. Its ordinary/non-hazardous location classification supports typical industrial facilities while maintaining robust protection against dust and water ingress.
MF3C1 supports NEC/CEC IEC standards and NEMA 6P ratings, with IP68 protection and an Ordinary/Non-Hazardous Locations area classification. These certifications help ensure regulatory compliance for industrial automation projects and simplify audits for safety, quality, and environmental readiness.
Technical resources for MF3C1 are available on Eaton/Crouse-Hinds LynxPOWER pages. Look for the LynxPower industrial connectivity brochure, the relevant catalog pages for Mini-Line and Micro-Mini cordsets, and the MF3C1 datasheet to review electrical, dimensional, and installation details before procurement.
