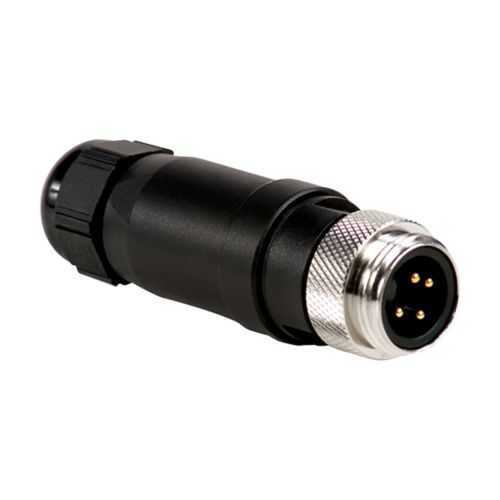

Eaton MF4B1 LynxPOWER Mini-Line field attachable - IP68
Part Number: MF4B1
Quick Summary
Eaton MF4B1 LynxPOWER Mini-Line field attachable connectors enable fast, reliable wiring terminations in rugged control cabinets. Engineers often struggle with limited space, vibration, and moisture that can degrade field connections over time. This device delivers IP68 protection and is designed to meet NEC/CEC/IEC standards with NEMA ratings 1, 13, 3, 4, and 6P, providing assurance across a range of installations. The field-attachable format supports common #16 AWG cables in a 0.20–0.48 inch range, reducing assembly complexity and spare-part requirements. For maintenance and uptime, lower wiring costs and consistent contact reliability translate to shorter downtime and improved total cost of ownership, while keeping compatibility with other LynxPOWER passive connectors.
Product Information
Extended Description
MF4B1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable, 10A, 0.20-0.48", #16 AWG, Male in-line, external thread, straight, Passive, Nickel-plated brass, Four-pole, Style I
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable
Catalog Number
MF4B1
UPC
662275951816
Product Length/Depth
3.7 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 13 3 4 6P
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Four-pole
Style
Style I
Gender
Male
Configuration
Male in-line, external thread, straight
Cable range
0.20-0.48"
Cable/wire size
#16 AWG
Material
Nickel-plated brass
Amperage Rating
10 A
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - MF4B1
Feature: Four-pole, male in-line, external thread, straight configuration. Business Impact: Ensures robust multi-conductor connections with secure mating, reducing miswiring risk and168 downtime during assembly. Application: Ideal for compact automation panels and motor control stations where space is at a premium and reliable power/SR connections are essential. long-tail keywords: four-pole connector, male inline, external thread, field attachable. Feature: Nickel-plated brass housing. Business Impact: Delivers corrosion resistance in washdown and humid environments, extending component life and lowering maintenance cost. Application: Food-processing lines, water treatment, outdoor equipment enclosures. long-tail keywords: nickel-plated brass, corrosion resistance, rugged connectors.Feature: Cable range 0.20–0.48 in (#16 AWG). Business Impact: Supports common control wiring while preserving a compact footprint, enabling flexible on-site terminations. Application: Sensors, actuators, small drives where space is constrained. long-tail keywords: 0.20-0.48 in cable range, #16 AWG, field installable.Feature: IP68 and NEMA/IEC compliance. Business Impact: Delivers dependable performance in ordinary and washdown locations, reducing compliance risk and warranty exposure. Application: Industrial automation cells, outdoor panels, washdown zones. long-tail keywords: IP68, NEC/CEC/IEC, NEMA ratings.Feature: Passive, field attachable design. Business Impact: Minimizes downtime with on-site assembly and reduces need for specialized tooling, lowering total installation costs. Application: Quick field upgrades, maintenance-driven wiring changes. long-tail keywords: field attachable connectors, passive, on-site termination.Feature: Cable/wire size compatibility and dimensions. Business Impact: Predictable footprint (3.7 in length, 1 in width/height, ~1 lb weight) simplifies cabinet planning and stocking. Application: Control panels, multi-port boxes, and remote IO junctions. long-tail keywords: 3.7 in length, four-pole, compact connector.
Get a Quick Quote for a Eaton Crouse-Hinds MF4B1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds MF4B1?
Enquire Now
FAQs
For MF4B1 field terminations, trim conductors to the recommended length, strip insulation to expose the conductor and insert into the four-pole contact cavity. Align the male inline connector with the external thread, then tighten to a secure, vibration-resistant fit. Verify proper seating and perform a continuity check. Use the nickel-plated brass housing to resist corrosion in washdown or humid environments. This approach minimizes rework and ensures a consistent, rugged connection even in dynamic automation environments.
MF4B1 is a four-pole, male in-line, field attachable connector rated for 10 A. It features an external thread and straight mating configuration, designed for reliable, compact power and signal terminations in industrial panels. The design supports #16 AWG conductors within a 0.20–0.48 in cable range, enabling flexible wiring while maintaining a tight, vibration-resistant connection.
MF4B1 is suited for ordinary/Non-Hazardous locations with IP68 protection, making it appropriate for washdown zones, humid industrial spaces, and outdoor enclosures. Its nickel-plated brass body resists corrosion, and the connector meets NEC/CEC/IEC standards with compatible NEMA ratings, ensuring dependable operation in typical automation cells and panel installations.
MF4B1 complies with NEC/CEC/IEC standards and carries NEMA ratings 1, 13, 3, 4, and 6P. It achieves IP68 ingress protection, and its ordinary location classification supports reliable performance in standard industrial environments. These certifications help streamline compliance documentation and support broader deployability across automation projects.
The field attachable design enables on-site terminations without specialized tooling, cutting installation time and reducing downtime. Common #16 AWG cables and a 0.20–0.48 in range simplify parts management, while corrosion-resistant nickel-plated brass extends service life in washdown environments. Together, these factors lower maintenance costs and improve uptime for automation systems.
