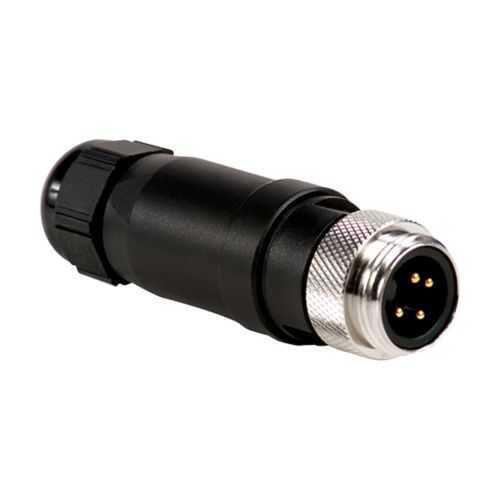

Eaton Crouse-Hinds MF4C1 LynxPOWER Mini-Line field attachable - IP68 & Four-Pole
Part Number: MF4C1
Quick Summary
MF4C1 LynxPOWER Mini-Line field attachable provides reliable four-pole power and signal termination for industrial panels. Field technicians often grapple with moisture ingress, loose terminations, and slow on-site assembly; this field-attachable design simplifies installation and reduces downtime for panel builders and field service teams. It meets IP68 sealing, NEC/CEC/IEC standards, and NEMA ratings for Ordinary/Non-Hazardous Locations, ensuring compliance across diverse regions and safe operation in wet environments. Designed for #16 AWG cables in the 0.20–0.48 in range and manufactured from nickel-plated brass, MF4C1 improves durability and reduces maintenance costs while fitting neatly into the LynxPOWER ecosystem.
Product Information
Extended Description
MF4C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable, 10A, 0.20-0.48", #16 AWG, Female, internal thread, straight, Passive, Nickel-plated brass, Four-pole, Style I
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line field attachable
Catalog Number
MF4C1
UPC
662275951823
Product Length/Depth
3.54 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
3 1 6P 13 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Four-pole
Style
Style I
Gender
Female
Configuration
Female, internal thread, straight
Cable range
0.20-0.48"
Cable/wire size
#16 AWG
Material
Nickel-plated brass
Amperage Rating
10 A
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - MF4C1
Feature: Field-attachable, four-pole connector design. Benefit: Simplifies installation and field maintenance, reducing downtime and labor costs for panel builds and machine installations. Application: Control panels, motor starters, and remote I/O in automation environments. Feature: Nickel-plated brass housing. Benefit: Superior corrosion resistance and durability in washdown or harsh environments, extending component life. Application: Food & beverage, chemical processing, and outdoor enclosures. Feature: Cable range 0.20–0.48 inches with #16 AWG conductors. Benefit: Broad compatibility with common industrial cabling, enabling quick termination and consistent performance. Application: Modular automation assemblies and machine upgrades. Feature: Internal thread, straight configuration with female gender. Benefit: Secure, vibration-resistant connections that resist loosening during operation. Application: Mounted panels and equipment subject to vibration in robotics and material handling. Feature: IP68 ingress protection and NEMA ratings (3, 1, 6P, 13, 4). Benefit: Reliable sealing against dust and water ingress, ensuring safe operation in ordinary/non-hazardous locations. Application: Washdown zones, outdoor installations, and rugged factory floors. Feature: Style I, passive connector with four poles. Benefit: Compatibility with LynxPOWER passive cordsets and quick field integration. Application: System integration across LynxPOWER ecosystems for scalable automation deployments. This combination supports scalable installations across automation, packaging, and machine-building environments.
Get a Quick Quote for a Eaton Crouse-Hinds MF4C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds MF4C1?
Enquire Now
FAQs
MF4C1 is a four-pole, field-attachable, female connector used to terminate #16 AWG cables in the 0.20–0.48 inch range. It provides reliable power and signal paths in industrial panels and automation installations, enabling quick field terminations without compromising sealing or mechanical stability.
Yes. MF4C1 features IP68 ingress protection and is designed for Ordinary/Non-Hazardous Locations per NEMA ratings. Its nickel-plated brass body and internal-thread configuration deliver robust sealing against moisture and dust, making it suitable for washdown areas and damp environments.
MF4C1 is rated for 10 A and accepts cables from 0.20 to 0.48 inches with #16 AWG conductors. It is a four-pole, passive connector, Female, internal thread, Straight configuration, Style I, made from nickel-plated brass for durability in industrial settings.
MF4C1 complies with NEC/CEC/IEC standards and carries NEMA ratings of 3, 1, 6P, 13, 4, with an IP68 ingress protection rating. It is intended for Ordinary/Non-Hazardous Locations, aligning with common industrial and automation compliance requirements.
By providing a field-attachable, four-pole, moisture-resistant connection with a nickel-plated brass body, MF4C1 reduces现场 splicing, speeds panel wiring, and lowers maintenance costs through improved sealing, reduced corrosion risk, and easier replacement within the LynxPOWER ecosystem.
