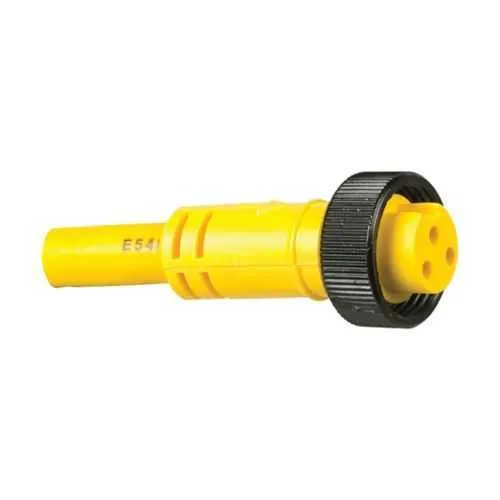

Eaton Crouse-Hinds ML2F4WC120F Mini-Line Cordset - IP68
Part Number: ML2F4WC120F
Quick Summary
ML2F4WC120F is a LynxPOWER Mini-Line cordset designed for reliable field wiring in industrial automation equipment. When wiring in tight panels or washdown environments, compatibility and installation speed are common pain points. This cordset carries IP68 ingress protection, NEC/CEC IEC standards, and a broad NEMA rating (1, 6P, 3, 4, 13), ensuring durable performance in ordinary/non-hazardous locations. Designed with zinc housing, STOOW cable, and a 12 ft length, it provides robust power delivery while resisting environmental exposure. The female, 90° plug with internal thread and pigtail simplifies mounting and reduces wiring errors, delivering predictable maintenance intervals and lower lifecycle costs. For engineers and procurement teams, this offers a practical balance of compliance, flexibility, and install efficiency.
Product Information
Extended Description
ML2F4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 13A, STOOW cable, #16 AWG, Female, 90° plug, internal thread, pigtail, Passive, Zinc, Two-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML2F4WC120F
UPC
662275375292
Product Length/Depth
1.62 in
Product Height
1.16 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 6P 3 4 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Two-pole
Style
Style I
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
13 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML2F4WC120F
Feature: 13 A amperage rating with #16 AWG STOOW conductors and a 12 ft length. Business impact: supports typical automation loads with robust current capability while maintaining flexibility in compact installations, reducing the need for jumpers or rework. Application: conveyors, robots, and machine tools in controlled environments benefit from predictable current delivery and easy field wiring. Feature: IP68 ingress protection and NEC/CEC IEC compliance. Business impact: ensures reliable operation in washdown areas and non-hazardous locations, lowering risk of downtime and accelerating safety audits. Application: panel-mounted power connections in food processing, packaging lines, and outdoor equipment. Feature: Passive, two-pole, Style I connector with female 90° plug and internal thread. Business impact: simplifies mounting in tight spaces, improves seal integrity, and minimizes assembly time. Application: remote sensors, actuators, and control panels where space and sealing matter. Feature: Zinc housing and STOOW cable interface for durability. Business impact: resists corrosion and chemical exposure, extending service life in demanding environments. Application: industrial automation enclosures, machinery housings, and washdown-ready equipment.
Get a Quick Quote for a Eaton Crouse-Hinds ML2F4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML2F4WC120F?
Enquire Now
FAQs
Install the female, 90° plug into the panel receptacle and secure the internal-thread connection to ensure a tight seal. Use the pigtail for neat wire terminations, verify the STOOW cable routing for strain relief, and maintain IP68 integrity with appropriate gaskets and enclosure seals for reliable operation in non-hazardous locations.
Its IP68 ingress protection rating, zinc housing, and STOOW cable provide robust resistance to water, oil, and grime. The 12 ft length accommodates typical equipment layouts, while the 13 A rating handles standard automation loads without compromising safety or compliance in ordinary locations.
The cordset complies with NEC/CEC IEC standards and NEMA configurations including 1, 6P, 3, 4, 13, ensuring electrical safety and interoperability across North American and international equipment. This simplifies procurement, reduces rework, and supports regulatory audits in industrial facilities.
Yes. With #16 AWG conductors and a 12 ft length, the ML2F4WC120F delivers up to 13 A of current safely, balancing voltage drop considerations with a compact cordset footprint suitable for conveyors, robotics, and other automation components in non-hazardous environments.
The rugged zinc housing, IP68 protection, and passive two-pole design reduce maintenance downtime and component failures. The 12 ft STOOW cable minimizes field rewiring needs, while standardization with LynxPOWER parts lowers spare-part requirements and speeds replacements, improving overall equipment uptime and total cost of ownership.
