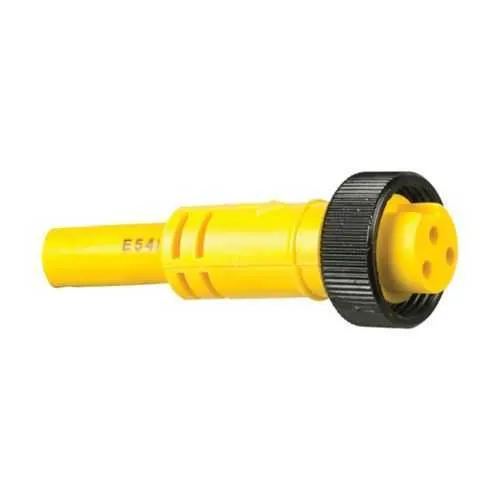

Eaton Crouse-Hinds ML3F4WC120F Mini-Line Cordset - IP68
Part Number: ML3F4WC120F
Quick Summary
ML3F4WC120F is a LynxPOWER Mini-Line cordset designed for quick, reliable power connections in industrial equipment. Engineers often struggle with durable, weatherproof wiring that fits tight panel spaces and rugged environments. This cordset delivers IP68 protection, IEC/NEC/CEC compliance, and versatile NEMA configurations for ordinary/non-hazardous locations. Its three-pole, passive connector paired with a 12 ft STOOW cable and a 90° plug simplifies installation and reduces wiring errors. From panel builders to maintenance crews, this solution helps minimize downtime and inventory while meeting rigorous industry standards. With its robust housing and clear certifications, it supports scalable automation projects across ordinary locations. It is compatible with standard installation practices and OEM wiring strategies.
Product Information
Extended Description
ML3F4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 13A, STOOW cable, #16 AWG, Female, 90° plug, internal thread, pigtail, Passive, Zinc, Three-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML3F4WC120F
UPC
662275942746
Product Length/Depth
1.62 in
Product Height
1.16 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 13 3 6P 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Three-pole
Style
Style I
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
13 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML3F4WC120F
Feature: IP68 ingress protection and broad NEMA coverage deliver rugged reliability in wash-down zones and damp factory floors. Business Impact: Minimizes ingress risk, extends service life, and lowers maintenance costs; Application: Control panels and motor starters in non-hazardous environments where moisture exposure is common. Feature: STOOW cable with #16 AWG conductors and a 12 ft length. Business Impact: Provides flexible, durable portability for machine tooling and portable power needs, reducing setup time and inventory. Application: Portable tools, test benches, and remote connections in assembly lines. Feature: Three-pole passive connector with a 90° plug and internal thread. Business Impact: Simplifies mating, lowers replacement costs, and enables secure, space-efficient installations. Application: Panel-mounted receptacles in compact enclosures. Feature: Zinc housing and IP68-rated construction. Business Impact: Improves corrosion resistance and longevity in challenging environments, lowering lifecycle costs. Application: Outdoor or damp locations, conveyors, and machine enclosures. Feature: IEC NEC/CEC compliance and NEMA ratings (1, 13, 3, 6P, 4) plus Ordinary/Non-Hazardous area classification. Business Impact: Eases regulatory compliance and qualification processes, reduces risk of noncompliance penalties, and supports cross-border deployments. Application: OEM machines, robotics workstations, and cabinet assemblies needing standard-compliant cordsets. Feature: General compatibility and installation advantages including pigtail design and internal threading. Business Impact: Accelerates installation, minimizes field wiring errors, and supports scalable automation integration. Application: OEM integration, machine builders, and service teams deploying LynxPOWER components.
Get a Quick Quote for a Eaton Crouse-Hinds ML3F4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML3F4WC120F?
Enquire Now
FAQs
ML3F4WC120F uses a three-pole passive connector with an internal thread and 90° plug, designed to mate with standard LynxPOWER receptacles and compatible panel mounting limits. Confirm panel cutouts match the 1 in width and 1.62 in depth profile, and ensure the enclosure is rated for Ordinary/Non-Hazardous locations with IP68 protection to maintain the seal.
The cordset is rated for 13 A and uses #16 AWG STOOW cable with a 12 ft length. This combination supports typical automation loads while maintaining flexibility for routing inside machines. The IP68 rating and NEMA configurations (1, 13, 3, 6P, 4) provide robust protection against moisture, dust, and mild impact environments, enhancing uptime and safety.
Yes. The three-pole passive connector with a 90° plug is well-suited for compact robotic cells and conveyors where space is at a premium. The 12 ft length offers room to connect equipment without overextending cables, while Ordinary/Non-Hazardous area classification ensures compliance in typical factory settings.
The ML3F4WC120F aligns with IEC NEC/CEC standards and features IP68 ingress protection, along with NEMA ratings 1, 13, 3, 6P, and 4. These certifications support safe operation in non-hazardous environments and facilitate cross-border manufacturing deployments.
Its rugged zinc housing, IP68 sealing, and passive design reduce maintenance intervals and replacement parts. The 12 ft length and secure 90° connector simplify wiring in panel assemblies, which lowers installation time and labor costs, offering a favorable return on investment over typical machine lifecycles.
