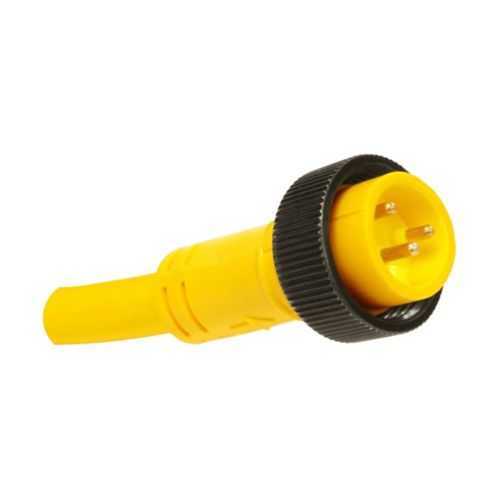

Eaton ML4A4WC120F LynxPOWER Mini-Line cordset - IP68
Part Number: ML4A4WC120F
Quick Summary
ML4A4WC120F is a LynxPOWER Mini-Line cordset delivering reliable power connections in compact automation enclosures. Engineers often contend with moisture ingress, vibration, and tight panel spaces that threaten reliability and maintenance cycles. This cordset addresses those challenges with IP68 protection and IEC/NEC compliance, along with compatible NEMA configurations for ordinary-location installations. By integrating a 12 ft STOOW cable, #16 AWG conductors, and a four-pole male straight plug with an internal thread and pigtail, it streamlines field wiring and reduces assembly time. The zinc housing adds rugged durability for harsh environments, while passive connectors simplify inventory management and spare-part planning for automation projects across robotics, material handling, and packaging lines.
Product Information
Extended Description
ML4A4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 10A, STOOW cable, #16 AWG, Male, straight plug, internal thread, pigtail, Passive, Zinc, Four-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML4A4WC120F
UPC
662275943781
Product Length/Depth
1.93 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
3 1 6P 13 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Four-pole
Style
Style I
Configuration
Male, straight plug, internal thread, pigtail
Gender
Male
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
10 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML4A4WC120F
STOOW rated 12 ft cable with #16 AWG conductors delivers dependable current capacity while enabling flexible routing in confined panels, reducing the need for field splices and minimizing voltage drop across lengthier harnesses. This translates to shorter installation times and lower commissioning costs in automated lines, conveyors, and robotic workcells. Four-pole passive connectors with a male straight plug, internal thread, and pigtail provide a secure, vibration-resistant interface that simplifies maintenance and hot-swapping of drives or sensors without disturbing fixed wiring. IP68 ingress protection protects against dust and washdown exposure, preserving performance in wet or harsh environments and extending component life in manufacturing floors. A zinc housing reinforces rugged durability, supporting repetitive assembly and disassembly cycles typical in OEM, service, and retrofit projects. Compatibility with the LynxPOWER ecosystem delivers consistent part availability and streamlined spares management, improving overall project ROI.
Get a Quick Quote for a Eaton Crouse-Hinds ML4A4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML4A4WC120F?
Enquire Now
FAQs
When wiring ML4A4WC120F, verify the internal thread mating surface and ensure the pigtail is routed without sharp bends. The 12 ft length suits medium panel depths, while the #16 AWG conductors support stable current delivery up to 10 A. Use proper strain relief and torque to maintain IP68 integrity, and verify connector alignment before final seating to prevent cross-threading or damage.
ML4A4WC120F is rated for 10 A with #16 AWG STOOW conductors and a 12 ft cable length. It provides a four-pole, passive male straight plug configuration with internal thread and pigtail, suitable for durable control panel wiring in ordinary-location environments.
Yes, the CM cordset carries IP68 ingress protection, which supports dust-tight and moisture-resistant operation in washdown or damp environments. It is designed for ordinary locations and non-hazardous settings, making it a solid choice for outdoor enclosures and exposed panels when used within its certification scope.
ML4A4WC120F aligns with IEC and NEC/CEC standards and carries NEMA-type compatibility for common industrial installations. It also features an IP68 rating for protection against dust and water intrusion, supporting reliable operation in demanding environments.
By combining a durable zinc housing with a robust four-pole connector and a field-friendly internal-thread design, ML4A4WC120F reduces wiring time and spares inventory needs. Its reliability under washdown and dusty conditions lowers maintenance costs and downtime, improving overall project ROI in robotics, conveyors, and packaging lines.
