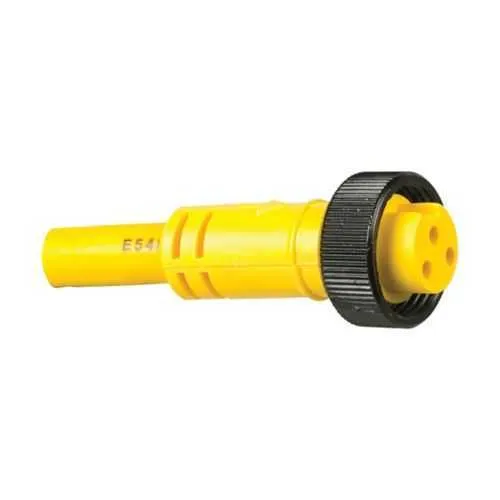

Eaton Crouse-Hinds ML4C4AC200F Cordset - IP68
Part Number: ML4C4AC200F
Quick Summary
The Eaton Crouse-Hinds LynxPOWER Mini-Line cordset ML4C4AC200F provides a robust, 10 A power connection for industrial control panels and automation equipment. This cordset delivers reliable performance in rugged environments, reducing field wiring complexity and connection failures. Field technicians often face moisture, dust, and mis-mating risks that complicate installations; ML4C4AC200F addresses these challenges with a weatherproof, four-pole design and a secure, pigtail configuration. It carries IP68 protection and complies with IEC NEC/CEC standards, while offering selectable NEMA configurations to fit common industrial systems. From standard control panels to automated machinery, this cordset supports consistent, compliant connectivity. The combination of 20 ft length, SEOW cable, and zinc housing translates into faster deployments, lower rewiring costs, and easier maintenance in capital-intensive facilities.
Product Information
Extended Description
ML4C4AC200F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 10A, SEOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Zinc, Four-pole, Style I, 20 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML4C4AC200F
UPC
662275000200
Product Length/Depth
1.93 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 6P 4 13 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Four-pole
Style
Style I
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
SEOW
Cable/wire size
#16 AWG
Cable length
20 ft
Amperage Rating
10 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML4C4AC200F
Feature: IP68-rated zinc housing and sealed four-pole connectors. Business Impact: This protection reduces moisture-related failures and field maintenance costs, increasing uptime on critical equipment such as control panels and automation modules. Application: Ideal for machine builders and system integrators wiring panels, robots, and conveyors in washdown or humid environments. Feature: SEOW cable with #16 AWG conductors for flexible, abrasion-resistant wiring. Business Impact: Delivers reliable, low-impedance connections with excellent bend tolerance, reducing voltage drop and rework in dynamic installations. Application: Suitable for panel-to-device runs, remote I/O, and motor starters where cables must survive flexing and occasional misalignment. Feature: Four-pole female straight plug with internal thread and pigtail. Business Impact: Enables fast, secure mating and straightforward serviceability in tight panel spaces, lowering commissioning time and risk of loose connections. Application: Receptacles on control panels, remote power supplies, and multi-port boxes where a compact, secure connector is required. Feature: 10 A amperage rating with Style I configuration. Business Impact: Supports common automation loads without oversizing harnesses or increasing panel cabinet capacity, reducing material cost and energy use. Application: Control circuits, sensors, actuators, and small drives in industrial automation. Feature: 20 ft cord length for reduced field splicing. Business Impact: Fewer field joints save labor and inventory, speeding installation across machines and line upgrades. Application: Medium-range cable runs between equipment in factories, packaging lines, and other ordinary-location setups.
Get a Quick Quote for a Eaton Crouse-Hinds ML4C4AC200F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML4C4AC200F?
Enquire Now
FAQs
This ML4C4AC200F is a four-pole passive cordset with a female straight plug, internal thread, and pigtail, built around SEOW #16 AWG conductors. It mates with compatible LynxPOWER receptacles and standard control-panel connectors, making it suitable for power and control runs between panels, remote I/O, motor starters, and automation devices in non-hazardous environments. Its four-pole arrangement supports common automation circuits while maintaining compact installation footprints.
The ML4C4AC200F carries IP68 ingress protection and is designed for ordinary/non-hazardous locations. It aligns with IEC NEC/CEC standards and supports multiple NEMA configurations for compatibility with a wide range of industrial equipment. When selecting a configuration, verify the exact NEMA option and environmental requirements in the product catalog to ensure full regulatory compliance for your installation.
Electrical: 10 A amperage rating and #16 AWG SEOW conductors; Mechanical: four-pole, zinc housing, Style I, with a female straight plug and internal thread plus a pigtail; Cable length: 20 ft. This combination provides a compact, robust power/control link suitable for standard automation loads in ordinary locations.
The internal thread and pigtail simplify secure mounting and wiring in tight spaces, while the 20 ft length reduces the number of field splices and parts needed. Quick mating and a rugged IP68 seal minimize commissioning time and maintenance downtime, translating into faster line changeovers, lower labor costs, and higher overall equipment availability in automated facilities.
You can access Eaton’s ML4C4AC200F datasheet and related LynxPOWER catalogs from the product downloads: LynxPOWER industrial connectivity solutions brochure, the Mini-Line and Micro-Mini catalog page, and the ML4C4AC200F specification sheet. These resources include wiring diagrams, catalog references, IEC/NEC compatibility notes, and installation guidance to support procurement and engineering reviews.
