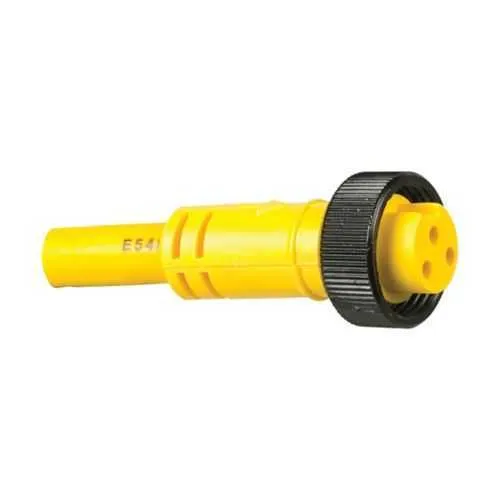

Eaton ML4C4SC120F LynxPOWER Mini-Line cordset - IP68
Part Number: ML4C4SC120F
Quick Summary
LynxPOWER Mini-Line cordset ML4C4SC120F provides rugged power and control for industrial equipment. Engineers often contend with leaks, corrosion, and downtime from inadequate connectivity in harsh plants. It is IP68 rated and compliant with NEC/CEC/IEC standards, with NEMA ratings 1, 3, 4, 6P and 13, ensuring reliable service in ordinary locations. With 12 ft of #16 AWG SOOW cable, a female straight plug, internal thread, pigtail configuration, and zinc housing, this cordset delivers fast field installation, robust protection, and long service life, helping project teams meet uptime targets and stay compliant while simplifying inventory and maintenance planning.
Product Information
Extended Description
ML4C4SC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 10A, SOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Zinc, Four-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML4C4SC120F
UPC
662275332196
Product Length/Depth
145.93 in
Product Height
1 in
Product Width
1 in
Product Weight
2.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Four-pole
Style
Style I
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
SOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
10 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML4C4SC120F
Feature: 10 A amperage rating. Benefit: Supports common machine loads while enabling safe, compliant operation across control and power circuits. Application: conveyors, motors, and sensors in manufacturing lines. Feature: 12 ft SOOW #16 AWG cable. Benefit: Extended reach reduces splices and improvised extensions, cutting installation time and inventory complexity. Application: equipment located away from power sources in panel areas. Feature: Four-pole, passive connector with female straight plug and internal thread. Benefit: Secure, vibration-resistant connections that withstand harsh environments and frequent cleanings. Application: panel-to-device terminations in washdown or dusty spaces. Feature: IP68 protection and NEMA ratings (1, 3, 4, 6P, 13). Benefit: Superior ingress protection for reliable operation in non-hazardous locations. Application: outdoor, wet, or dirty environments requiring long-term sealing. Feature: Zinc housing. Benefit: Corrosion resistance and rugged durability extending product life. Application: industrial installations exposed to moisture or corrosive atmospheres. Feature: NEC/CEC IEC certifications. Benefit: Simplified regulatory compliance and design validation. Application: North American and international projects needing standardization. Feature: Passive connector configuration. Benefit: Low-maintenance, straightforward installation with fewer moving parts. Application: fixed connectivity in automation and equipment setups.
Get a Quick Quote for a Eaton Crouse-Hinds ML4C4SC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML4C4SC120F?
Enquire Now
FAQs
Begin with the female straight plug aligned for internal-thread mating, then secure the connection to the panel receptacle. Ensure the pigtail is properly routed to minimize strain, tighten all threaded interfaces to maintain IP68 integrity, and verify the 12 ft SOOW cable reaches the device without tension. Confirm alignment with the equipment’s enclosure and adhere to NEC/CEC/IEC guidelines during installation.
The cordset combines IP68 ingress protection, robust zinc housing, and four-pole passive connectivity to withstand washdown, dust, and moisture in non-hazardous environments. Its NEC/CEC/IEC compliance ensures it meets standard electrical codes, while the NEMA ratings provide additional assurance for reliable operation across common industrial applications.
Yes. This model is a four-pole passive cordset with a female straight plug and internal thread, paired with SOOW cable rated at #16 AWG and 12 ft in length. The combination supports secure, vibration-resistant connections suitable for harsh environments, making it compatible with standard LynxPOWER ecosystems and field-mounted equipment.
It carries NEC/CEC/IEC standards alignment, IP68 ingress protection, and multiple NEMA ratings (1, 3, 4, 6P, 13). These certifications simplify design validation, speed up procurement approvals, and support installation in ordinary/non-hazardous locations without special adaptation, helping maintain regulatory compliance across North American and international projects.
The ML4C4SC120F reduces downtime through robust sealing and fewer splices, while its 12 ft length and pigtail configuration simplify field installation and future replacements. With a 10 A rating and durable zinc housing, maintenance costs drop due to longer service life and easier stock management, delivering measurable total cost of ownership benefits over time.
