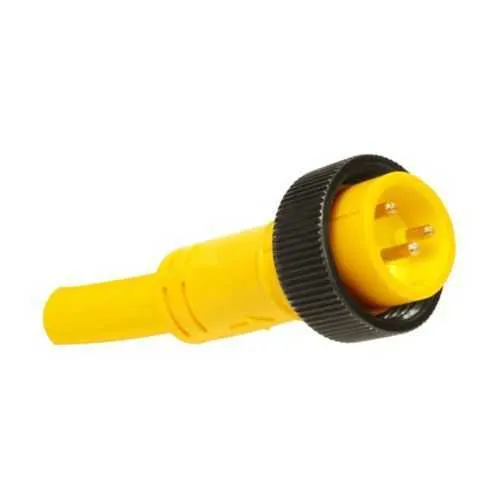

Eaton ML5A4WC120F LynxPOWER Mini-Line - IP68
Part Number: ML5A4WC120F
Quick Summary
ML5A4WC120F is a rugged LynxPOWER Mini-Line cordset designed for durable, plug-and-play power connections in industrial automation environments. Engineers frequently confront moisture, vibration, and strain-relief challenges that shorten cordset life and increase downtime. This model delivers IP68 ingress protection and compliance with IEC, NEC, and CEC standards, along with NEMA ratings for ordinary locations, offering robust performance in harsh but non-hazardous settings. With a 12 ft STOOW cable, #16 AWG conductors, and a five-pole male straight plug configuration, it enables faster panel installations and safer, more reliable connections. The result is reduced maintenance costs, improved uptime, and a straightforward path to scalable connectivity across machines and control panels.
Product Information
Extended Description
ML5A4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 8A, STOOW cable, #16 AWG, Male, straight plug, internal thread, pigtail, Passive, Zinc, Five-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML5A4WC120F
UPC
662275973900
Product Length/Depth
1.93 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
3 4 6P 13 1
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Five-pole
Style
Style I
Configuration
Male, straight plug, internal thread, pigtail
Gender
Male
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
8 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML5A4WC120F
Feature: Five-pole passive connector with internal thread and pigtail; Business Impact: Secure mating and robust vibration resistance reduce connection failures and rework; Application: Control panels and automation equipment where frequent disconnects occur. Feature: STOOW cable, #16 AWG, 12 ft length; Business Impact: Durable, oil- and solvent-resistant wiring with flexible routing lowers installation time and field maintenance; Application: Industrial enclosures and machine wiring harnesses. Feature: IP68 ingress protection; Business Impact: Water and dust resistance extend service life in non-hazardous locations, lowering downtime; Application: Outdoor or damp environments in ordinary facilities. Feature: IEC NEC/CEC compliance and NEMA ratings 3, 4, 6P, 13, 1; Business Impact: Regulatory alignment and environmental suitability reduce risk and testing costs; Application: New installations and retrofit projects in controlled industrial settings. Feature: Zinc housing and passive connector design; Business Impact: Durable enclosure that resists corrosion and simplifies field upgrades; Application: Control panels requiring reliable, maintenance-friendly connectivity. Feature: 12 ft length with 8 A rating; Business Impact: Balanced reach and current capability support common automation loads while keeping cable runs tidy; Application: Equipment assemblies and plug-in modules in mid-scale systems.
Get a Quick Quote for a Eaton Crouse-Hinds ML5A4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML5A4WC120F?
Enquire Now
FAQs
ML5A4WC120F uses a male, straight plug with internal thread and a pigtail configuration on a 12 ft STOOW cable (#16 AWG). Ensure mating receptacles support the five-pole, passive connector and that enclosure sealing remains intact to preserve IP68 protection. This setup simplifies panel integration and reduces field modification time.
The cordset is rated for 8 A with #16 AWG STOOW conductors and a 12 ft length. It uses a five-pole, male, straight plug configuration with internal thread and pigtail, suitable for ordinary-location control panels in non-hazardous environments.
Yes. The ML5A4WC120F features IP68 ingress protection and is intended for ordinary/non-hazardous locations, providing reliable operation in damp, washdown, or light outdoor applications where non-hazardous conditions exist.
The cordset complies with IEC and NEC/CEC standards and carries multiple NEMA ratings including 3, 4, 6P, 13, and 1, ensuring regulatory alignment and suitability for a range of industrial environments in ordinary locations.
By delivering IP68 protection, robust zinc housing, and a durable STOOW cable with a secure five-pole connection, the ML5A4WC120F reduces maintenance frequency, minimizes downtime, and simplifies installation—translating to lower total cost of ownership over panel and machine wiring.
