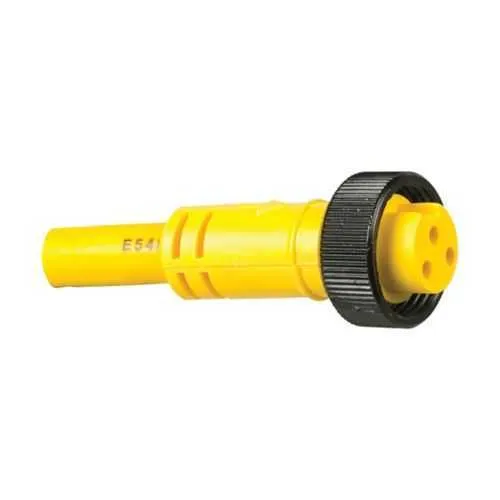

Eaton LynxPOWER Mini-Line cordset ML5C4SC200F - IP68
Part Number: ML5C4SC200F
Quick Summary
LynxPOWER Mini-Line cordset is a rugged power connectivity solution for industrial automation panels and equipment. Engineers often grapple with durable, compliant connections that survive washdowns, dust, and frequent field maintenance. This ML5C4SC200F delivers IP68 ingress protection, plus NEMA 4, 6P, and 13 ratings, alongside IEC NEC/CEC conformity, to help you meet harsh environmental requirements. Designed for OEMs and integrators, it supports 20 ft runs, #16 AWG SOOW cable, and an 8 A rating, delivering reliable power to motors, sensors, and control panels while minimizing wiring errors and downtime.
Product Information
Extended Description
ML5C4SC200F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 8A, SOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Zinc, Five-pole, Style I, 20 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML5C4SC200F
UPC
662276966062
Product Length/Depth
1.93 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
4 1 3 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Five-pole
Style
Style I
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
SOOW
Cable/wire size
#16 AWG
Cable length
20 ft
Amperage Rating
8 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML5C4SC200F
Feature: Five-pole, Style I, female, straight plug with internal thread and pigtail. Business Impact: Ensures secure mating and robust multi-pin connections, reducing miswiring and field wiring errors. Application: Control panels, motor starters, and distributed I/O in automated lines. Feature: 8 A amperage rating with #16 AWG SOOW cable. Business Impact: Supports standard control circuits with adequate headroom, lowering the risk of overheating and nuisance trips. Application: Sensors, relays, and actuators in conveyors and manufacturing equipment. Feature: 20 ft cable length. Business Impact: Flexible routing across machinery and cabinets, minimizing the need for additional junctions. Application: Interconnects between machines and control cabinets in compact OEM installations. Feature: IP68 ingress protection and NEMA ratings 4, 1, 3, 6P, 13. Business Impact: Meets washdown, outdoor, and harsh-environment requirements, improving uptime and compliance. Application: Environments with dust, moisture, and washdown cycles in factories. Feature: Zinc housing and passive connector design. Business Impact: Corrosion resistance and low-maintenance durability in demanding locations. Application: Outdoor and indoor industrial settings where longevity matters. Feature: Internal thread, pigtail configuration for secure field wiring. Business Impact: Streamlines mounting and termination, reducing install time and rework. Application: OEM panel builds and aftermarket installations within the LynxPOWER ecosystem. Feature: IEC NEC/CEC conformity. Business Impact: Regulatory alignment simplifies procurement and reduces compliance risk. Application: Global industrial automation projects and multinational facilities.
Get a Quick Quote for a Eaton Crouse-Hinds ML5C4SC200F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML5C4SC200F?
Enquire Now
FAQs
The ML5C4SC200F is designed for use with control panels, motors, sensors, and automation devices that require a five-pole, passive, female straight-plug connection. It features internal threading for secure mating and a pigtail termination suitable for IEC NEC/CEC compliant installations within LynxPOWER ecosystems. The 20 ft length and #16 AWG SOOW cable support common industrial control circuits while ensuring reliable field wiring.
IP68 indicates complete dust ingress protection and protection against prolonged immersion in water, while NEMA ratings 4, 1, 3, 6P, and 13 cover outdoor, washdown, and harsh-environment use. In ordinary/non-hazardous locations, these ratings translate to durable performance in factories, outdoor enclosures, and washdown corridors, helping minimize downtime from moisture, dust, and corrosion.
Yes, the ML5C4SC200F uses a robust five-pole, zinc-housed passive connector with an internal-threaded plug and secure pigtail termination, designed to resist loosening under typical industrial vibration. Its rugged SOOW cable (#16 AWG) and IP68/NEMA-rated housing further enhance resistance to movement-induced wear, making it well-suited for conveyors, robotics, and equipment with moving parts.
This model offers a 20 ft length with SOOW cable specified as #16 AWG. It is part of the LynxPOWER Mini-Line family, which includes various configurations for length, connector style, and pole count. For longer runs or alternative terminations, consult Eaton’s LynxPOWER catalog pages for compatible 20 ft and shorter/longer variants.
The internal thread on the female straight plug provides secure mating with the corresponding receptacle. The pigtail configuration simplifies field wiring by enabling direct termination at the control panel or junction box. When installing, ensure a proper torque on threaded connections per manufacturer guidelines and verify compatibility with IEC NEC/CEC standards to maintain IP68 and NEMA protection levels.
