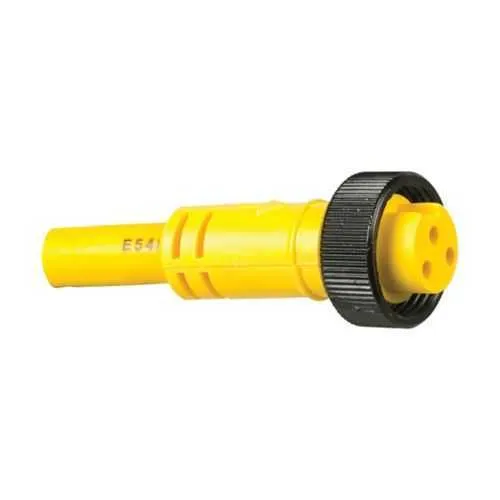

Eaton Crouse-Hinds ML5C4WC120F Mini-Line Cordset - IP68
Part Number: ML5C4WC120F
Quick Summary
ML5C4WC120F is a LynxPOWER Mini-Line cordset that provides reliable power connections for industrial automation equipment. This compact, IP68-rated unit helps overcome installation challenges like long cabling runs, exposure to dust, and moisture in harsh environments. It carries critical certifications for reliability and safety, including IP68 ingress protection, NEMA ratings 1, 3, 4, 6P, 13, and NEC/CEC IEC standards, supporting compliance across North American and international projects. Designed for field-ready assembly, the five-pole, female straight-plug configuration with internal thread and pigtail simplifies mounting in control panels and equipment racks, while STOOW cable and #16 AWG conductors optimize current handling and flexibility. This cordset aligns with LynxPOWER connectivities for scalable industrial connectivity and reduced downtime.
Product Information
Extended Description
ML5C4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 8A, STOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Zinc, Five-pole, Style I, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML5C4WC120F
UPC
662275944542
Product Length/Depth
145.93 in
Product Height
1 in
Product Width
1 in
Product Weight
2.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Five-pole
Style
Style I
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
8 A
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML5C4WC120F
Feature: IP68 ingress protection and zinc housing protect against water ingress and corrosion in washdown and outdoor environments. Business Impact: minimizes maintenance, reduces field failures, and extends service intervals for critical equipment. Application: control panels in food processing, water treatment, and mining installations where exposure to moisture is expected. Feature: STOOW cable with #16 AWG conductors delivers robust current handling up to 8 A while preserving flexibility. Business Impact: supports reliable operation of motors, sensors, and actuators without over-sizing harnessing. Application: machine controls and remote sensing in compact panels. Feature: Five-pole Passive connector with female straight plug and internal thread, plus pigtail. Business Impact: simplifies field installation, ensures vibration resistance, and lowers installation time. Application: modular power and signal interconnections in LynxPOWER ecosystems. Feature: IP68 together with NEC/CEC IEC compliance and NEMA ratings 1, 3, 4, 6P, 13 expands regulatory coverage. Business Impact: streamlines cross-border compliance and safer operation in ordinary locations. Application: global automation deployments in control cabinets and equipment enclosures. Feature: 12 ft cord length provides flexible routing for larger machines and remote modules. Business Impact: reduces the need for additional adapters or junctions, cutting labor and inventory costs. Application: large automated lines and panel installations. Feature: Style I, internal thread, and pigtail configuration support straightforward compatibility with existing LynxPOWER components. Business Impact: lowers total cost of ownership by standardizing connectors and simplifying stocking. Application: scalable connectivity upgrades across plant networks.
Get a Quick Quote for a Eaton Crouse-Hinds ML5C4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML5C4WC120F?
Enquire Now
FAQs
ML5C4WC120F uses a female straight-plug, internal-thread configuration with pigtail and STOOW cable. When planning installation, ensure panel cutouts accommodate the five-pole connector and that the 12 ft cord length reaches the device without excessive tension. Verify panel environments match IP68 protection expectations and that NEC/CEC IEC standards apply to your region.
Yes. The ML5C4WC120F is IP68 rated and built with a zinc housing to resist moisture and dust ingress. This makes it well-suited for washdown zones, outdoor equipment, and damp industrial environments where reliable power connectivity must endure moisture exposure.
Absolutely. The cordset is rated for 8 A and uses #16 AWG STOOW conductors. This sizing supports common automation loads such as control relays, sensors, small motors, and compact actuators while maintaining flexibility for routing within control panels.
The ML5C4WC120F carries NEC/CEC IEC standards alignment and NEMA ratings 1, 3, 4, 6P, 13, with IP68 ingress protection. These certifications help ensure regulatory compliance for North American and international deployments in ordinary locations.
By standardizing a robust, long-length cordset with a secure internal-thread plug, you reduce field assembly time, minimize maintenance events due to ingress, and lower stock diversity thanks to cross-compatibility within the LynxPOWER ecosystem. The result is faster deployments and lower total cost of ownership across plant networks.
