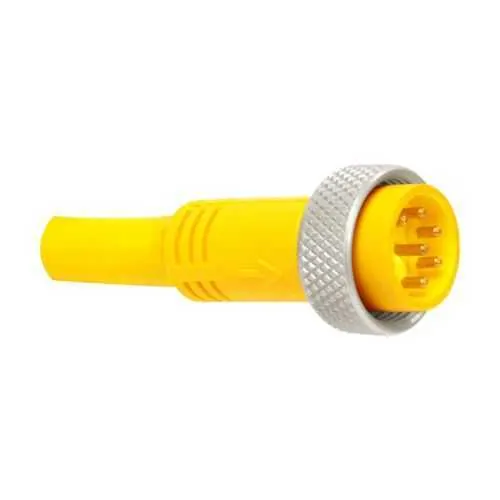

Eaton Crouse-Hinds ML8A4WC120F Mini-Line Cordset - IP68
Part Number: ML8A4WC120F
Quick Summary
Eaton Crouse-Hinds LynxPOWER Mini-Line cordset powers and connects control panels in harsh industrial environments. In the field, moisture, dust, and vibration disrupt connections and drive costly downtime; this cordset mitigates that risk with rugged sealing, a durable aluminum housing, and a robust eight-pole configuration. It carries IP68 protection, plus NEMA ratings 4, 13, and 6P with IEC/NEC/CEC compliance, ensuring reliable performance in ordinary/non-hazardous locations. For system integrators and maintenance teams, the combination of 12 ft STOOW cable, #16 AWG conductors, and a passive, internal-thread, pigtail connector translates to faster installations, easier replacements, and lower total cost of ownership in automation builds.
Product Information
Extended Description
ML8A4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Male, straight plug, internal thread, pigtail, Passive, Aluminum, Eight-pole, Style II, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML8A4WC120F
UPC
662275359575
Product Length/Depth
2.05 in
Product Height
1.12 in
Product Width
1.12 in
Product Weight
2.52 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
4 13 6P 1 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Eight-pole
Style
Style II
Configuration
Male, straight plug, internal thread, pigtail
Gender
Male
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML8A4WC120F
Feature: Rugged IP68-rated construction with aluminum housing. Business Impact: Delivers dependable ingress protection in washdown and outdoor environments, reducing repair frequency and downtime. Application: Ideal for control panels and field devices in non-hazardous locations where moisture exposure is a concern. Feature: STOOW cable with #16 AWG conductors, 12 ft length. Business Impact: Provides flexible routing and sufficient conductor capacity for low-power control and signaling without voltage drop, improving wiring efficiency. Application: Robots, conveyors, and panel-mounted controllers requiring reliable power and control links. Feature: Eight-pole, Style II, passive connector with male straight plug and internal thread, pigtail. Business Impact: Simplifies mating and installation while ensuring secure, vibration-tolerant connections. Application: Industrial I/O assemblies and multi-pin interconnects in compact enclosures. Feature: Compliance with IEC, NEC/CEC standards and NEMA ratings 4, 13, 6P. Business Impact: Aligns with global safety and performance requirements, easing regulatory approvals and supplier qualifications. Application: Suitable for ordinary/non-hazardous locations across diverse markets. Feature: Passive connector design with pigtail configuration. Business Impact: Reduces maintenance complexity and spare-part costs, enabling rapid field swaps and consistent performance. Application: Maintenance-centric environments where uptime matters and quick replacements are essential.
Get a Quick Quote for a Eaton Crouse-Hinds ML8A4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML8A4WC120F?
Enquire Now
FAQs
The ML8A4WC120F uses a male straight plug with an internal thread and pigtail, designed to mate with compatible LynxPOWER receptacles. Ensure the mating connector is clean, torque to the specified limits, and route the 12 ft STOOW cable to avoid sharp bends. This design simplifies field installation and reduces assembly time while maintaining IP68 protection.
Key specs include a 7A amperage rating, STOOW cable type, #16 AWG conductors, and an overall length of 12 ft. The eight-pole configuration supports multi-line signaling/power with a passive connector, suitable for non-hazardous locations and standard industrial control circuits.
Yes. The ML8A4WC120F features IP68 ingress protection and aluminum housing, along with NEMA ratings 4, 13, and 6P, making it well-suited for outdoor, washdown, and harsh plant environments while maintaining reliable operation.
The product aligns with IEC and NEC/CEC standards and carries NEMA ratings 4, 13, 6P, in addition to IP68 protection. Its area classification is Ordinary/Non-Hazardous Locations, which facilitates use in typical industrial facilities and reduces compliance hurdles during audits.
The passive, simple-mating design minimizes maintenance and spare-part needs. A 12 ft cable length with rugged connector reduces downtime during replacements, while IP68/NEMA-rated protection lowers failure rates in challenging environments, contributing to lower total cost of ownership and higher equipment uptime.
