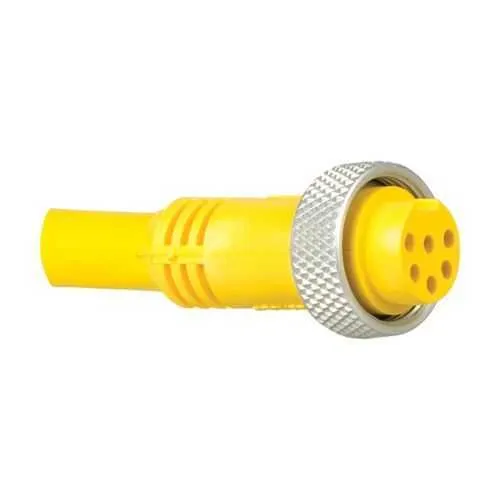

Eaton ML8C4WC120F LynxPOWER Mini-Line Cordset - IP68
Part Number: ML8C4WC120F
Quick Summary
LynxPOWER Mini-Line cordset delivers rugged power connections for industrial automation equipment, enabling reliable starts and steady operation in demanding environments. Engineers often face downtime from misaligned assemblies and moisture ingress; this eight-pole, passive connector reduces mis-wiring risk and sharpens reliability in daily line operations. It carries IP68 protection and IEC/ NEC/CEC compliance for Ordinary/Non-Hazardous locations, providing regulatory confidence across global sites. With a 12 ft STOOW cable, #16 AWG conductors, internal-thread plug, pigtail configuration, and 7A rating, installation is straightforward and service-friendly, lowering wiring time and maintenance costs. This combination directly translates to reduced commissioning time, predictable electrical performance, and lower total cost of ownership across automation projects.
Product Information
Extended Description
ML8C4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Aluminum, Eight-pole, Style II, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML8C4WC120F
UPC
662275962539
Product Length/Depth
2.05 in
Product Height
1.12 in
Product Width
1.12 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 6P 13 3 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Eight-pole
Style
Style II
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML8C4WC120F
Feature is an IP68-rated, eight-pole LynxPOWER passive connector assembly; Business Impact is enhanced environmental protection and reliable multi-line connectivity, resulting in reduced downtime and maintenance costs; Application is on conveyors, robotics, and panel systems in harsh or dusty industrial settings. Feature is a 12 ft STOOW cable with #16 AWG conductors; Business Impact is flexible routing and capable current-paths that minimize field splices and signal loss; Application is primary for long runs between control panels and field devices. Feature is internal-thread, pigtail configuration with a female straight plug; Business Impact is easier installation, quicker field assembly, and safer servicing; Application is retrofit and new builds where rapid wiring and serviceability are critical. Feature is aluminum housing with Style II design; Business Impact is durable, lightweight construction that resists corrosion and installation downtime; Application is heavy-use environments like packaging and pick-and-place lines. Feature is IP68, NEMA ratings (1, 6P, 13, 3, 4), and Ordinary/Non-Hazardous location readiness; Business Impact is full regulatory coverage and safer operation across global facilities; Application is cross-site deployments and compliant machine design.
Get a Quick Quote for a Eaton Crouse-Hinds ML8C4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML8C4WC120F?
Enquire Now
FAQs
To install, verify compatibility with the eight-pole passive connector, align the female straight plug, and secure the internal-thread interface. Route the 12 ft STOOW cable to avoid sharp bends, terminate the #16 AWG conductors correctly, and ensure the IP68 seals remain intact. Test continuity and insulation after installation to confirm reliable operation and prevent rework.
ML8C4WC120F features IP68-rated protection that guards against dust and deep water exposure in demanding environments. The aluminum housing, eight-pole passive connector, and sealed interfaces support reliable performance in wet, dusty, and wash-down areas, reducing ingress-related failures and extending service intervals for machinery and conveyors.
Yes. This cordset is designed as a six- to eight-pole LynxPOWER passive connector solution with a female straight plug and internal thread, making it compatible with the LynxPOWER Mini-Line ecosystem. The 12 ft STOOW cable length and #16 AWG conductors align with common LynxPOWER mating receptacles and field-installation practices.
ML8C4WC120F carries IP68 ingress protection and complies with IEC NEC/CEC standards for ordinary/non-hazardous locations. It supports NEMA ratings including 1, 6P, 13, 3, and 4, ensuring regulatory alignment for many industrial suits and automated equipment across North America and beyond.
The ML8C4WC120F reduces downtime through robust sealing, a durable aluminum housing, and a reliable eight-pole passive connection. The 12 ft length minimizes field splices and wiring time, while the internal-thread, pigtail configuration speeds installation and service. Over a project lifecycle, these factors translate into lower maintenance costs and faster commissioning.
