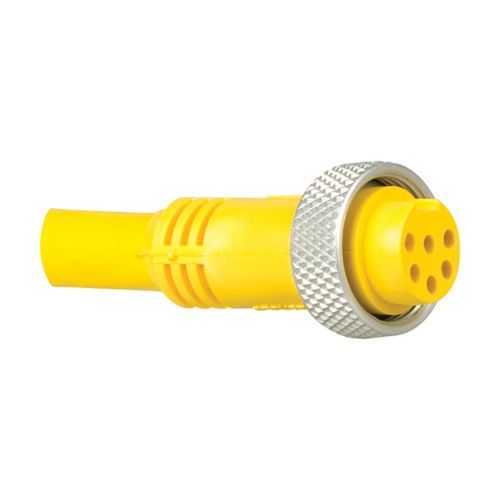

Eaton Crouse-Hinds ML8C4WC300FX LynxPOWER Mini-Line cordset - IP68
Part Number: ML8C4WC300FX
Quick Summary
LynxPOWER Mini-Line cordset ML8C4WC300FX offers rugged, waterproof power connections for industrial machinery in harsh environments. Operators often confront vibration, washdown exposure, and mismatched terminations that slow installs and drive rework; this cordset delivers a robust eight-pole stainless steel passive connector to withstand those conditions and simplify wiring. It meets IEC, NEC/CEC standards with IP68 ingress protection and NEMA ratings 1, 4, 3, 13 and 6P, supporting safe, compliant operation in ordinary locations. With 30 ft STOOW cable, #16 AWG, a female straight plug, internal thread, and a pigtail, it enables flexible, maintenance-friendly wiring that reduces downtime and field costs for your automation projects.
Product Information
Extended Description
ML8C4WC300FX Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Stainless steel, Eight-pole, Style II, 30 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML8C4WC300FX
UPC
662275378910
Product Length/Depth
2.05 in
Product Height
1.12 in
Product Width
1.12 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 4 3 13 6P
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Eight-pole
Style
Style II
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
30 ft
Amperage Rating
7A
Material
Stainless steel
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML8C4WC300FX
Feature: Eight-pole Style II passive connector in a stainless steel housing. Business Impact: Delivers superior durability and corrosion resistance, extending service life in washdown and outdoor environments while minimizing replacement cycles. Application: Robotic cells, conveyors, and outdoor equipment where multi-port power connections are required. Feature: STOOW cable design with #16 AWG conductors, 30 ft length. Business Impact: Offers reliable power delivery with flexible routing across typical plant layouts, reducing the need for additional jumpers and work-arounds. Application: Powering motors, sensors, and actuators across machine bays and control panels. Feature: IP68 rating and area classification Ordinary/Non-Hazardous Locations. Business Impact: Provides robust dust and water ingress protection, enabling longer intervals between maintenance and lower risk in washdown zones. Application: Food processing lines, packaging equipment, and general manufacturing floors. Feature: Internal thread, female straight plug, pigtail configuration. Business Impact: Enables secure, field-friendly mating with straightforward installation and fewer misconnected assemblies. Application: Quick replacements or upgrades where space constraints favor a straight, internally threaded connection. Feature: NEMA ratings 1, 4, 3, 13, 6P. Business Impact: Ensures broad regulatory compatibility across regional codes, simplifying procurement and compliance. Application: Machinery deployed across multiple sites with varied environmental requirements. Feature: Stainless steel materials. Business Impact: Delivers enhanced corrosion resistance, reducing maintenance needs and replacement costs in demanding environments. Application: Industrial settings with moisture, chemicals, or outdoor exposure.
Get a Quick Quote for a Eaton Crouse-Hinds ML8C4WC300FX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML8C4WC300FX?
Enquire Now
FAQs
ML8C4WC300FX uses an eight-pole passive connector in a stainless steel housing with STOOW cable and #16 AWG conductors, extended to 30 ft. It is designed to be compatible with LynxPOWER passive receptacles and standard Style II connectors, enabling straightforward cross‑compatibility and simplified spares management.
IP68 provides complete protection against dust ingress and immersion in water, making the cordset suitable for washdown zones and moisture-prone areas. Coupled with the stainless steel housing, this reduces corrosion-related failures and maintenance, improving uptime in manufacturing and packaging lines.
The ML8C4WC300FX aligns with IEC, NEC/CEC standards and carries NEMA ratings 1, 4, 3, 13, 6P. It is intended for Ordinary/Non-Hazardous Locations, offering broad regulatory compatibility for global installations and easier code compliance in diverse facilities.
Plan for adequate bend radii for #16 AWG conductors and ensure proper strain relief at the plug-end to preserve IP68 integrity. The 30 ft length provides flexibility across machine layouts, while the internal thread and pigtail simplify field termination and reduce the risk of loose connections in dynamic environments.
The combination of IP68 protection, stainless steel construction, and robust eight-pole connectivity reduces maintenance and replacement costs, lowers field wiring errors, and supports longer mean time between failures. This translates to higher uptime, fewer spare-part needs, and quicker upgrades or expansions in automated lines.
