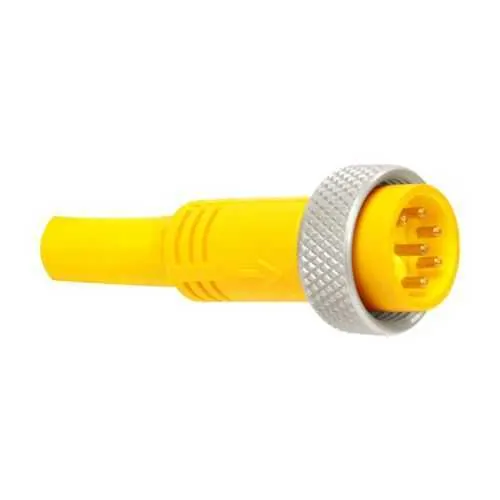

Eaton LynxPOWER Mini-Line Cordset ML8P4WC200F - IP68
Part Number: ML8P4WC200F
Quick Summary
LynxPOWER Mini-Line cordset from Eaton delivers rugged, plug-to-plug connectivity for industrial automation panels. Engineers face moisture, dust, and misaligned connections in harsh environments; this cordset's IP68 sealing and eight-pole design help minimize downtime. It complies with NEC/CEC/IEC standards and is suitable for ordinary and non-hazardous locations, ensuring safety and regulatory alignment. With 20 ft of STOOW cable, #16 AWG conductors, and an aluminum housing, it streamlines field wiring, inventory management, and installation time. For procurement teams, standardized interfaces reduce spares costs and simplify sourcing while delivering reliable performance in washdown lines.
Product Information
Extended Description
ML8P4WC200F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Male, straight plug to female, straight plug, Passive, Aluminum, Eight-pole, Style II, 20 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML8P4WC200F
UPC
662275359599
Product Length/Depth
2.05 in
Product Height
1.12 in
Product Width
1.12 in
Product Weight
4.23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 6P 3 13 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Eight-pole
Style
Style II
Configuration
Male, straight plug to female, straight plug
Gender
Male and female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
20 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML8P4WC200F
Eight-pole passive connector design enables robust multi-circuit connectivity with reduced mating errors, improving panel reliability and reducing wiring complexity in complex automation setups. This directly translates to faster commissioning and lower field service time when connecting servo drives and multi-axis controllers. The 20 ft STOOW cable with #16 AWG conductors supports compact power and signal transfer with predictable impedance, delivering consistent performance and easing cable management in tight control cabinets. Aluminum housing provides a durable yet lightweight enclosure, improving handling during installation and reducing wear on mating surfaces in high-traffic factory environments. IP68 ingress protection combined with NEC/CEC/IEC compliance ensures washdown compatibility and regulatory alignment, minimizing risk during audits and increasing uptime in harsh environments. The eight-pole, Style II configuration, with straight male-to-female plugs, simplifies mounting and reduces misconnection risk in dynamic lines such as conveyors and robotic cells. Overall, this cordset offers reliability, easy compatibility with existing LynxPOWER ecosystems, and lower total cost of ownership through longer service life and fewer spare parts.
Get a Quick Quote for a Eaton Crouse-Hinds ML8P4WC200F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML8P4WC200F?
Enquire Now
FAQs
When installing the ML8P4WC200F in washdown areas, ensure proper mounting to minimize mechanical stress on the straight plug connections and use strain relief where the 20 ft STOOW cable exits the connector. Route cables away from high-pressure spray zones and maintain sufficient bend radii to preserve IP68 integrity. Verify mating surfaces are clean prior to connection to avoid debris ingress that could compromise sealing and performance.
Yes. The ML8P4WC200F uses a compatible eight-pole passive connector configuration and STOOW cable construction designed for LynxPOWER ecosystems. It operates with #16 AWG conductors and matches standard LynxPOWER mating interfaces, enabling straightforward field upgrades, modular connectivity, and consistent performance across existing panels and multi-port boxes.
This cordset complies with NEC/CEC/IEC standards and carries an IP68 rating, supporting safe operation in ordinary/non-hazardous locations. The NEMA ratings (1, 6P, 3, 13, 4) provide additional guidance for mounting and environmental tolerance. These certifications simplify regulatory approval, improve safety oversight, and help ensure reliable performance in regulated industrial environments.
The eight-pole configuration enables concurrent power, signaling, and control lines within a single robust connector, reducing the need for multiple discrete cables. This lowers assembly time, minimizes mis-wiring risk, and improves panel reliability in equipment like robotic cells and multi-axis drives. It also supports streamlined spare parts planning and easier future expansion.
The combination of IP68 sealing, aluminum housing, and a durable STOOW construction delivers long life in tough environments, reducing replacement cycles and maintenance costs. Standardized LynxPOWER interfaces simplify sourcing and spares management, while the 20 ft length reduces the need for additional connectors or extenders, lowering total installation time and improving uptime and return on investment for automated lines.
