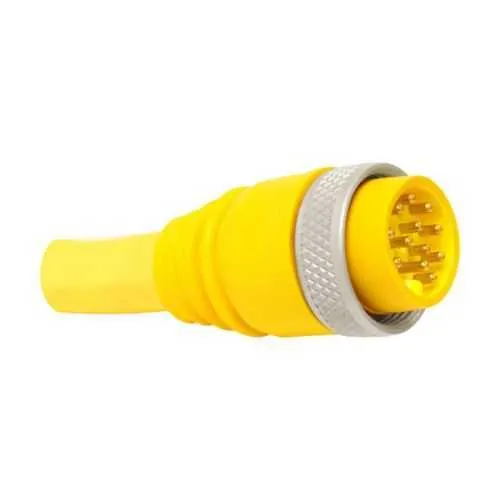

Eaton Crouse-Hinds ML9P4WC120F LynxPOWER Mini-Line cordset - IP68
Part Number: ML9P4WC120F
Quick Summary
LynxPOWER Mini-Line cordset delivers rugged, ready-to-wire connectivity for factory automation and control panels. Engineers often contend with moisture, dust, and vibration that compromise reliability; this cordset uses STOOW cable and a robust IP68 seal to minimize downtime. Certified for ordinary/non-hazardous locations with NEC/CEC/IEC alignment and reinforced by NEMA ratings, it meets stringent safety and performance expectations. Its nine-pole aluminum passive connector and Style III construction simplify installations, reducing maintenance and integration time. This solution supports industrial automation needs with compact, scalable connectivity that helps OEMs and integrators win on reliability and total cost of ownership.
Product Information
Extended Description
ML9P4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Male, straight plug to female, straight plug, Passive, Aluminum, Nine-pole, Style III, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
ML9P4WC120F
UPC
662275944177
Product Length/Depth
2 in
Product Height
1.25 in
Product Width
1.25 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
13 3 1 4 6P
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Nine-pole
Style
Style III
Configuration
Male, straight plug to female, straight plug
Gender
Male and female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - ML9P4WC120F
Feature → Business Impact → Application: The ML9P4WC120F uses a 7A amperage rating with #16 AWG STOOW cable, delivering reliable low-voltage and control signaling while minimizing wiring complexity in small to medium automation devices; the business impact is reduced wiring costs and improved reliability in control panels and machine interfaces. Application: ideal for panel builders and machine builders needing compact, robust interconnects. Feature → Business Impact → Application: Nine-pole, male straight plug to female straight plug with Style III configuration enables multi-signal integration in a single cordset, reducing the number of separate harnesses and speeding assembly in servo drives and I/O subsystems. Application: compatible with LynxPOWER receptacles and multi-port boxes for scalable machine connectivity. Feature → Business Impact → Application: STOOW cable construction paired with IP68 aluminum housing provides superior environmental sealing against moisture and dust, extending service life in washdown areas and outdoor installations. Application: suitable for harsh manufacturing floors, packaging lines, and outdoor equipment. Feature → Business Impact → Application: 12 ft cable length offers flexible routing and fewer connection points, cutting installation time and spares inventory costs. Application: supports quick-mconnects between control panels and field devices. Feature → Business Impact → Application: NEC/CEC/IEC standards compliance and ordinary/non-hazardous area classification mitigate regulatory risk and simplify panel certifications. Application: essential for OEMs pursuing compliant, plug-and-play connectivity in factory automation. Feature → Business Impact → Application: Aluminum housing and passive connector design minimize maintenance and reduce lifecycle costs, while ensuring compatibility with existing LynxPOWER ecosystems. Application: suitable for retrofit projects and new installations in industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds ML9P4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ML9P4WC120F?
Enquire Now
FAQs
The ML9P4WC120F uses a male straight plug to female straight plug configuration with a nine-pole passive connector. Install by aligning the plug and receptacle, securing with standard fasteners, and ensuring the gasket seats for IP68 sealing. Use compatible LynxPOWER receptacles or multi-port boxes to maintain a continuous seal and minimize ingress risk. Verify the 12 ft cable path avoids sharp bends and follows the manufacturer's recommended bend radius to preserve signal integrity.
This cordset is designed for ordinary/non-hazardous locations and complies with NEC/CEC/IEC standards. It carries IP68 ingress protection and a NEMA compatibility range that includes ratings such as 13, 3, 1, 4, and 6P, supporting robust operation in typical industrial environments while simplifying regulatory paperwork during panel certification.
Yes. The STOOW cable with 7A rating, 12 ft length, and IP68-rated aluminum housing is specifically intended for rugged machine-to-machine connections. The nine-pole configuration supports multiple control and signaling lines in a single cordset, reducing harness complexity and potential failure points in automated production lines.
Its NEC/CEC/IEC standards alignment, ordinary/non-hazardous location classification, and IP68 protection streamline compliance reviews, inspections, and retrofits. The Style III, nine-pole passive connector design also ensures compatibility with existing LynxPOWER portfolios, enabling smoother upgrades without wholesale rewiring.
The cordset reduces downtime through reliable sealing and fewer interconnections, lowers spare part counts with a single robust cable assembly, and accelerates installation with plug-to-plug simplicity. Over the product lifecycle, these factors translate to lower maintenance costs, faster commissioning, and improved factory throughput in automation projects.
