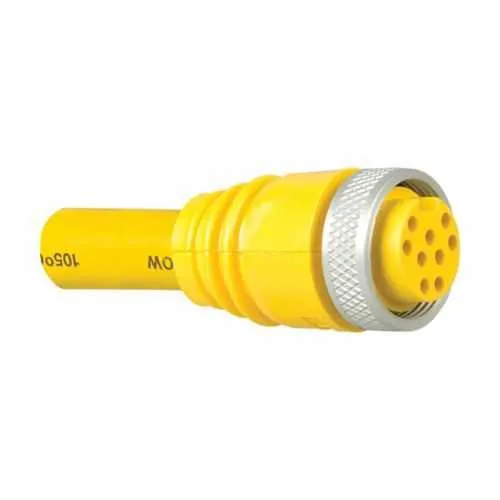

Eaton MLAC4WC120F LynxPOWER Mini-Line Cordset - IP68
Part Number: MLAC4WC120F
Quick Summary
LynxPOWER Mini-Line Cordset provides rugged power connections for automated machinery and control panels. Designers often struggle with durable, IP-rated connectors that tolerate harsh environments and frequent unplug/replug cycles. This MLAC4WC120F meets IP68 protection, a comprehensive NEMA rating (1, 6P, 3, 13, 4), and IEC/NEC/CEC standards, ensuring safe operation in industrial settings. With a 12 ft STOOW cord, #16 AWG copper conductors, and a ten-pole female plug arrangement, it delivers reliable power delivery while simplifying installation. By aligning with the LynxPOWER receptacle ecosystem and passive connector design, it supports scalable automation, reduces downtime, and improves total cost of ownership for panel builders and integrators.
Product Information
Extended Description
MLAC4WC120F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Female, straight plug, internal thread, pigtail, Passive, Aluminum, Ten-pole, Style III, 12 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
MLAC4WC120F
UPC
662275942357
Product Length/Depth
2 in
Product Height
1.25 in
Product Width
1.25 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 6P 3 13 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Ten-pole
Style
Style III
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
12 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - MLAC4WC120F
Feature: Ten-pole configuration with Style III housing and a female, straight-plug, internal-thread pigtail assembly. Business impact: maximizes connector density while maintaining mating reliability in crowded control cabinets. Application: compact robotics, multi-axis systems, and panel wiring where space is at a premium. Feature: STOOW insulated #16 AWG conductors with a 12 ft cable length rated for 7 A. Business impact: delivers durable, flexible power wiring that resists abrasion and chemical exposure on the factory floor. Application: control circuits, sensors, and light motors across conveyors and packaging lines. Feature: Aluminum housing with internal thread, pigtail, and IP68 protection. Business impact: provides corrosion resistance and washdown capability, reducing maintenance cycles. Application: washdown environments, outdoor enclosures, and湿环境 areas. Feature: Compliance with IEC NEC/CEC, NEMA ratings (1, 6P, 3, 13, 4), and ordinary/non-hazardous area classification. Business impact: simplifies cross-border procurement and regulatory audits, minimizing rework. Application: plant-wide integration and international projects. Feature: Compatibility with LynxPOWER receptacles, passive connectors, and standard cordset configurations. Business impact: reduces installation time and risk of mis-wiring, promoting reliable onboarding for new automation lines. Application: systems integration, retrofit projects, and modular automation architectures.
Get a Quick Quote for a Eaton Crouse-Hinds MLAC4WC120F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds MLAC4WC120F?
Enquire Now
FAQs
MLAC4WC120F is designed for ordinary/non-hazardous locations with IP68 protection and aluminum housing. When installing, ensure proper strain relief, secure internal thread connections, and adequate clearance for the 12 ft cable. Verify compatibility with Ly nxPOWER receptacles and avoid exposure to environments beyond IP68 ratings. Standard mounting and follow-up inspection should be scheduled to maintain long service life.
Key specs include a 7 A amperage rating, STOOW cable type, #16 AWG conductors, 12 ft length, and a ten-pole configuration for high-density connections. The connector is a passive female straight plug with internal thread and pigtail, suitable for low-power control circuits, sensors, and lightweight motor feeds in automation environments.
Yes. The MLAC4WC120F adheres to IEC and NEC/CEC standards and carries a NEMA rating set including 1, 6P, 3, 13, and 4. It also features ordinary/non-hazardous area classification, ensuring regulatory compliance across international projects and simplifying procurement for global deployments.
Typical applications include control panels, robotics, conveyors, and small-power feeds in manufacturing lines. Its ten-pole design and 12 ft length provide flexible, scalable connectivity for modular automation architectures, while IP68 and aluminum housing support reliable operation in washdown or damp environments.
The rugged IP68-rated housing and stainless-like aluminum construction reduce corrosion and maintenance needs in harsh environments. The robust mating interface and standardized connector design shorten installation time, lower downtime, and improve lifecycle value for panel builders and integrators through faster commissioning and easier future upgrades.
