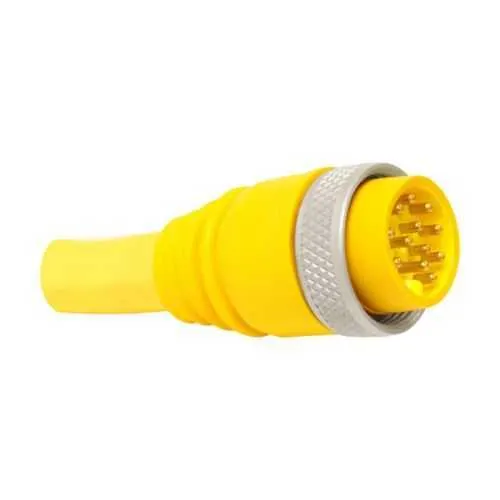

Eaton MLAP4WC150F LynxPOWER Mini-Line cordset - IP68
Part Number: MLAP4WC150F
Quick Summary
MLAP4WC150F LynxPOWER Mini-Line cordset delivers rugged, ready-to-wire power connections for industrial automation panels. Engineers often contend with space constraints, moisture exposure, and connectors that fail compliance tests, driving costly downtime. This cordset combines IP68 protection, NEC/CEC/IEC standards alignment, and a broad NEMA ratings set to simplify installation in ordinary, non-hazardous locations. With a ten-pole, aluminum housing and STOOW cable built for abrasion resistance, it delivers dependable performance in harsh factory environments. The 15 ft length and #16 AWG conductors provide flexible routing without oversizing harnesses, while the straight plug configuration reduces rework during panel wiring. In short, it supports safer, faster assembly and sustained uptime across automated lines. Its 15 ft length supports flexible routing in compact control cabinets and equipment housings.
Product Information
Extended Description
MLAP4WC150F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset, 7A, STOOW cable, #16 AWG, Male, straight plug to female, straight plug, Passive, Aluminum, Ten-pole, Style III, 15 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Mini-Line cordset
Catalog Number
MLAP4WC150F
UPC
662275377296
Product Length/Depth
2 in
Product Height
1.25 in
Product Width
1.25 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 4 13 3 6P
Ingress protection (IP) ratings
IP68
Connector type
Passive
Number Of Poles
Ten-pole
Style
Style III
Configuration
Male, straight plug to female, straight plug
Gender
Male and female
Cable type
STOOW
Cable/wire size
#16 AWG
Cable length
15 ft
Amperage Rating
7A
Material
Aluminum
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - MLAP4WC150F
Feature: IP68 ingress protection. Benefit: Protects sensitive power and signal connections from dust and water intrusion, reducing failure rates in washdown or damp environments. Application: Control panels in manufacturing lines and outdoor or semi-exposed equipment.
Feature: 7A amperage rating with #16 AWG STOOW cable. Benefit: Enables reliable low-power control circuits without oversizing conductors, lowering material costs and heat buildup. Application: Robotic feeders, sensor arrays, and small-motor control circuits.
Feature: Ten-pole, Style III, aluminum housing with passive connectors. Benefit: Enhances mechanical durability and long-term reliability while easing maintenance and field replacements. Application: Multi-pin power and data distribution in compact enclosures.
Feature: NEC/CEC/IEC compliance and broad NEMA ratings (1, 4, 13, 3, 6P). Benefit: Streamlines regulatory approvals and expands compatibility across equipment brands. Application: Panel wiring for machines, conveyors, and automation equipment in ordinary locations.
Feature: Cable length 15 ft, configuration Male straight plug to female straight plug. Benefit: Flexible routing and straightforward installation reduces wiring time and commissioning costs. Application: New builds and retrofits in tight cabinet spaces, where quick plug-and-play is valued.
Feature: 7A amperage rating with #16 AWG STOOW cable. Benefit: Enables reliable low-power control circuits without oversizing conductors, lowering material costs and heat buildup. Application: Robotic feeders, sensor arrays, and small-motor control circuits.
Feature: Ten-pole, Style III, aluminum housing with passive connectors. Benefit: Enhances mechanical durability and long-term reliability while easing maintenance and field replacements. Application: Multi-pin power and data distribution in compact enclosures.
Feature: NEC/CEC/IEC compliance and broad NEMA ratings (1, 4, 13, 3, 6P). Benefit: Streamlines regulatory approvals and expands compatibility across equipment brands. Application: Panel wiring for machines, conveyors, and automation equipment in ordinary locations.
Feature: Cable length 15 ft, configuration Male straight plug to female straight plug. Benefit: Flexible routing and straightforward installation reduces wiring time and commissioning costs. Application: New builds and retrofits in tight cabinet spaces, where quick plug-and-play is valued.
Get a Quick Quote for a Eaton Crouse-Hinds MLAP4WC150F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds MLAP4WC150F?
Enquire Now
FAQs
Install using the male straight plug to female straight plug configuration and secure the aluminum housing to a compatible panel. Route the 15 ft STOOW cable to minimize strain and protect IP68 seals. Ensure connectors are mated fully to maintain enclosure integrity and prevent ingress during operation.
The cordset is rated for 7A with STOOW jacketed #16 AWG conductors, 15 ft long, and features ten poles in a Style III arrangement with passive connectors. It uses a male-to-female straight plug configuration and delivers IP68 protection for rugged environments.
Yes. It complies with NEC/CEC/IEC, provides IP68 ingress protection, and supports NEMA ratings 1, 4, 13, 3, 6P. Its ordinary/non-hazardous area classification makes it appropriate for standard factory automation, panels, and machine tools where moisture and dust are concerns.
Certifications include NEC/CEC/IEC standards for electrical safety and interoperability, IP68 ingress protection for dust and water resistance, and broad NEMA ratings ensuring compatibility with diverse equipment. These certifications simplify compliance, reduce risk, and enable broader application across industrial environments.
The aluminum housing provides durability in demanding environments, while the STOOW cable resists abrasion. The ten-pole configuration supports multi-pin connections, reducing harness complexity and downtime during maintenance or changes. Its IP68 rating minimizes ingress-related service events, contributing to lower total cost of ownership.
