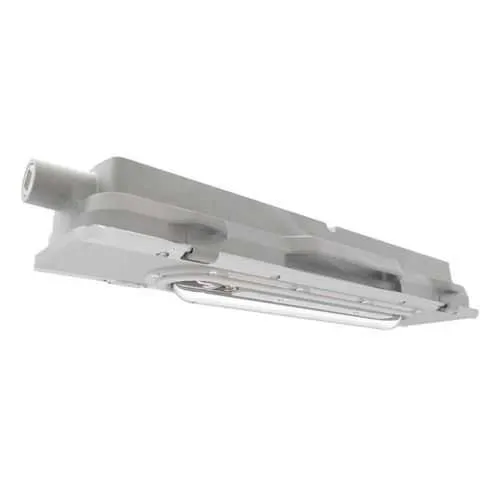

Eaton MLLA2N-UNV1-S891-P-M2 Linear LED Light Fixture - IP66

Hazardous-location protection is built into the MLLA2N-UNV1-S891-P-M2 with a NEMA 4X enclosure and IP66/IP67 ingress protection. This combination delivers compliance with NEC/CEC requirements for Class I, II, III locations and reduces exposure to moisture, dust, and chemical splash. In refinery floors and chemical processing areas, that protection translates to fewer unscheduled outages and safer maintenance procedures by authorized personnel. The design supports both retrofit upgrades and new installations, easing procurement and field acceptance in large-scale projects. Efficiency is delivered through 4000 lumens at 30 watts, yielding about 132 lumens per watt and a power factor above 0.92. The cool white output suits task lighting while the diffused glass lens minimizes glare in confined spaces, and the narrow optical distribution concentrates light where it is needed, reducing energy waste in long runs. The copper-free aluminum housing and epoxy finish resist corrosion in challenging environments, while the 2 ft form factor fits standard industrial grids. Installation is straightforward with 3/4" entries and a flush ceiling mount, and the unit accommodates 120-277 Vac or 127/250 Vdc at 50/60 Hz for global deployment. The Champ MLLA family alignment ensures consistent performance across facilities, and the availability of installation sheets, catalogs, and photometric data supports design verification and faster project approval.
