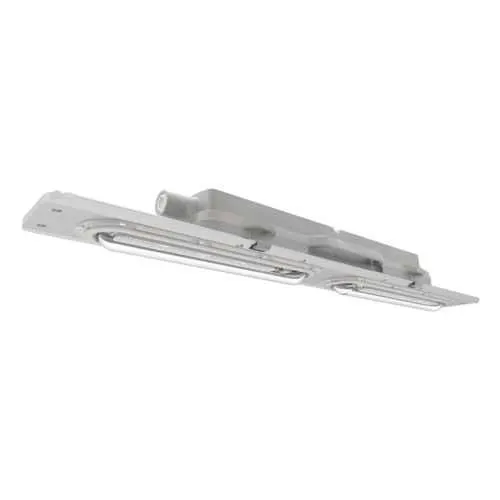

Eaton MLLAN4-UNV1-S903D-WH-M2 LED Linear Light Fixture - IP66

The MLLAN4-UNV1-S903D-WH-M2 uses LED technology to deliver 8000 lumens at 59 watts, achieving about 135 lumens per watt. This combination reduces energy consumption while maintaining bright, uniform illumination across work cells, improving throughput and worker safety in hazardous environments. The fixture’s high-efficiency performance translates to lower operating costs and cooler operation, extending equipment life in critical production areas. With a rugged IP66/IP67-rated enclosure and NEC hazardous location classifications (Class I, Division 2; Zone 2; Class II, Division 1), it provides reliable protection against dust, water, and aggressive chemicals, enabling safer, compliant operation in chemical plants, refineries, and mining sites. The 4 ft form factor, 39 in depth, and 3/4" entries support quick retrofit and straightforward integration into existing linear runs, reducing installation time and labor costs. Copper-free aluminum with a painted white epoxy finish yields excellent corrosion resistance in harsh environments, while a diffusion lens made of diffused polycarbonate provides a wide distribution and low-glare light. Neutral white color temperature ensures accurate color rendering for maintenance, inspection, and quality control tasks. The wide optical distribution combined with a power factor above 0.94 delivers consistent performance and reduced reactive power, supporting energy management programs and utility incentives. Compatible with 120-277 VAC and 127/250 VDC inputs, the fixture offers flexible supply options for global facilities and retrofit projects without extensive rewiring. Overall, MLLAN4-UNV1-S903D-WH-M2 delivers durable, compliant, and cost-effective lighting for hazardous locations, improving safety and productivity while simplifying procurement and installation.
