MLLAW2N-UNV34-S903-WH-M2

Part Number: MLLAW2N-UNV34-S903-WH-M2
MLLAW2N-UNV34-S903-WH-M2
Manufacturer
Eaton Crouse-Hinds
Part number
MLLAW2N-UNV34-S903-WH-M2
Category

Product Information

Extended Description

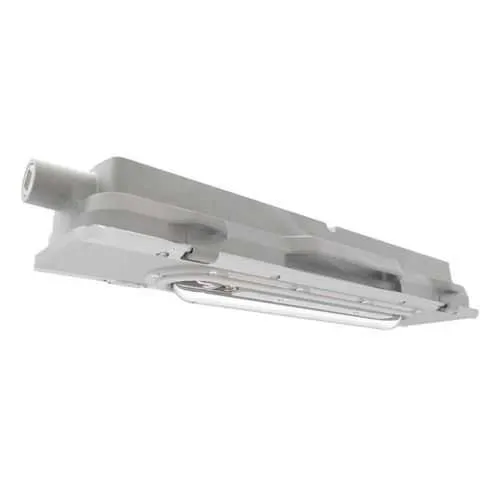

MLLAW2N-UNV34-S903-WH-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ MLLA linear LED fixture, Warm white, 3/4" entries, Painted white epoxy, 2 ft, Polycarbonate lens, 4000 lumens, 132 lm/W, Copper-free aluminum, Flush ceiling mount, Narrow, >0.95 PF, 347-480 Vac, 30W
Product Name
Eaton Crouse-Hinds series Champ MLLA linear LED light fixture
Catalog Number
MLLAW2N-UNV34-S903-WH-M2
UPC
786689810245
Product Length/Depth
25.94 in
Product Height
4.42 in
Product Width
7.13 in
Product Weight
19.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Warm white
Lamp length
2 ft
Lumens
4000
Lumens per watt
132
Optical distribution
Narrow
Mounting Method
Flush ceiling
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Painted white epoxy
Material
Copper-free aluminum
Wattage
30W
Power factor
> 0.95
Crouse-Hinds series Champ MLLA LED Linear brochure Crouse-Hinds series Champ MLLA LED Linear brochure Crouse-Hinds series Champ MLLA LED Linear catalog page Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) Champ MLLA and Pauluhn DLLA Linear LED and Champ VMVL Intelligent LED Fixtures UL certification (Marine) IF 1932 - Champ Linear MLLA M2 LED Fixtures IF 1932 - Champ Linear MLLA M2 LED Fixtures IF 1932 - Champ Linear MLLA M2 LED Fixtures Crouse-Hinds series Champ MLLA LED Linear ies photometric files Crouse-Hinds series Champ MLLA LED Linear ies photometric files
