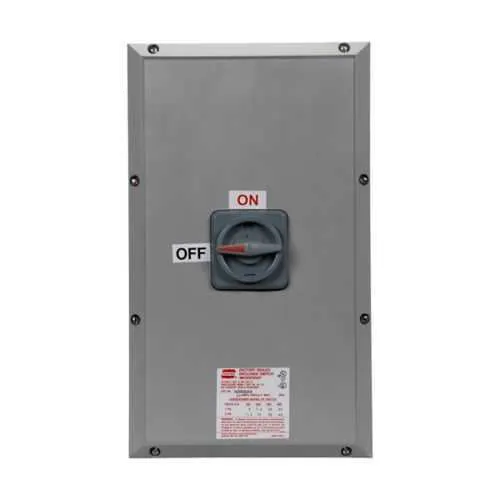

Eaton N2RS603 Enclosed Switch - Hazardous Locations
Part Number: N2RS603
Manufacturer
Eaton Crouse-Hinds
Part number
N2RS603
Quick Summary
N2RS603 is an enclosed switch designed for hazardous-location motor control in industrial facilities. Operators often struggle with downtime and maintenance in harsh environments; this unit minimizes those risks with a Krydon fiberglass-reinforced polyester enclosure and a factory-sealed motor circuit switch. It complies with NEC/CEC standards and carries a Class I, Division 2 hazardous rating, plus NEMA configurations 3, 4X, 7, and 12 for versatile location protection. The 60A, 240–600 VAC, three‑pole, non‑fused design supports reliable motor control across three-phase applications while helping you meet regulatory requirements and reduce total cost of ownership. This model also aligns with common procurement workflows and spare-part standardization.
Product Information
Extended Description
N2RS603 Eaton Crouse-Hinds: Eaton Crouse-Hinds series N2RS enclosed switch, 60A, With three-pole switch, Non-fused, 15 HP/30 HP/40 HP, Krydon fiberglass-reinforced polyester, Three-phase, 1-1/2", Factory sealed motor circuit switch, 240-600 Vac
Product Name
Eaton Crouse-Hinds series N2RS enclosed switch
Catalog Number
N2RS603
UPC
782274959009
Product Length/Depth
11.39 in
Product Height
19.39 in
Product Width
10.22 in
Product Weight
27.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Enclosure type
With three-pole Switch
Amperage Rating
60A
Voltage rating
240-600 Vac
Horsepower
15 hp/30 hp/40 hp
Trade size
1-1/2"
Configuration
Three-pole
Fusing
Non-fused
Phase
Three-phase
Material
Krydon fiberglass-reinforced polyester
Type
Factory sealed motor circuit switch
N2RS Series Non-metallic Enclosed Switches catalog page
N2RS Non-metallic Hazardous Area Enclosed Switches Canadian certification
N2RS Non-metallic Hazardous Area Enclosed Switches Canadian certification
IF 1336 - N2RS Control Switches
Eaton Specification Sheet - N2RS603
Enclosure Construction → Durable, chemical-resistant housing reduces corrosion-related maintenance in harsh environments, improving uptime in chemical plants and offshore facilities. Application Impact → Extends service life in demanding locations, lowering replacement costs and enabling longer maintenance intervals for critical equipment. Electrical Rating & Configuration → 60A, 240–600 VAC, 15/30/40 HP, three-pole, non-fused motor control supports a wide range of standard motors, simplifying panel design and installation with a 1-1/2" trade size. Business Outcome → Improves motor circuit reliability and reduces wiring complexity by using a factory sealed motor circuit switch, cutting field wiring time and safeguarding against dust and moisture ingress. Compliance & Protection → NEC/CEC compliance with Class I, Division 2 rating and NEMA 3 4X 7 12 enclosure ratings provide broad protection against dust, water, and impact. Application Validity → Suitable for hazardous locations like chemical processing, oil/gas, and mining, delivering consistent performance under difficult conditions. Installation & Compatibility → Factory-sealed switch design reduces field modifications; compatible with standard three-phase systems and common installation practices, supported by Eaton’s IF 1336 instructions and official data sheets. Industry Insight → Material and design choices reflect industry best practices for motor control in classified locations, helping integrators meet project timelines and budget constraints.
Get a Quick Quote for a Eaton Crouse-Hinds N2RS603
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds N2RS603?
Enquire Now
FAQs
The N2RS603 is ideal for industries such as chemical processing, oil and gas, mining, and other process environments where motors operate in hazardous or classified locations. Its Class I, Division 2 rating and NEMA 3 4X 7 12 enclosure provide robust protection against dust, moisture, and chemical exposure while supporting reliable three-phase motor control up to 60A and 240–600 VAC.
Installation leverages a three-pole, non-fused design with a 1-1/2" trade size, enabling straightforward integration into standard motor circuits. The factory-sealed construction minimizes field wiring, and the unit is supported by installation sheets (IF 1336) and Eaton catalog resources to ensure proper mounting, wiring, and compliance in hazardous environments.
N2RS603 carries NEC/CEC compliance, a Class I, Division 2 hazardous location rating, and NEMA ratings 3, 4X, 7, 12. These certifications validate suitability for hazardous or classified locations, ensure protection against environmental conditions, and simplify regulatory approvals for motor-control installations in demanding facilities.
The N2RS603 is rated for 60A and 240–600 VAC, with HP ratings of 15/30/40 HP for three-phase motors. It uses a 1-1/2" trade size enclosure and a three-pole configuration, non-fused, enabling reliable control of mid-size industrial motors while maintaining safety in hazardous locations.
Helpful materials include Eaton’s N2RS Series catalog page, the IF 1336 instruction sheet, and the Eaton specification sheet for N2RS603. These resources provide wiring diagrams, mounting guidance, and compliance information to streamline procurement, installation, and maintenance.
