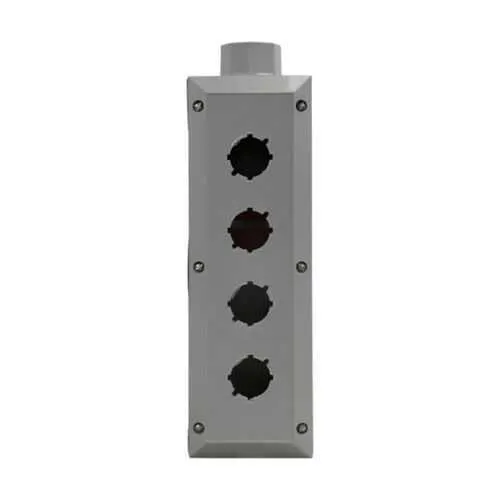

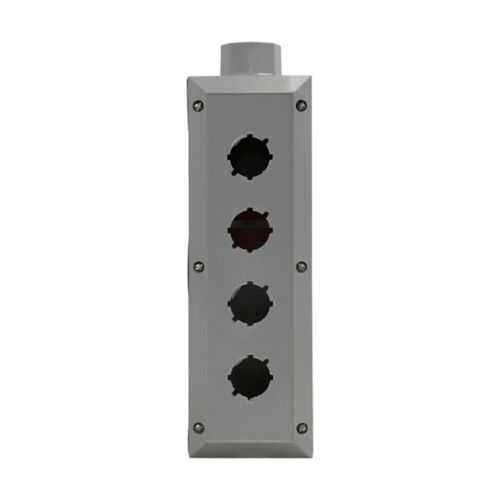

Eaton NCD02 Enclosure - Hazardous/Classified Locations
Part Number: NCD02
Quick Summary
The Eaton NCD02 enclosure protects control components in hazardous environments, delivering reliable housing for automation panels. Many installations struggle with unsafe terminations, seal degradation, and non-compliant enclosures that slow commissioning. This enclosure meets NEC/CEC standards, offers Class I, Division 2 hazardous location rating, and a NEMA 3/4X/7/12 rating for versatile installation. With MSR1/MSR2 suffix compatibility and a 2-circuit capacity, it integrates smoothly into modern automation architectures. Its compact footprint and lightweight construction simplify field service, while delivering rugged protection and long-term cost savings. For engineers, it reduces risk during panel upgrades and ensures compliance across evolving hazardous-location codes.
Product Information
Extended Description
NCD02 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCD enclosure, 2, Must be used with MSR1 or MSR2 suffix, Dead end
Product Name
Eaton Crouse-Hinds series NCD enclosure
Catalog Number
NCD02
UPC
782274592572
Product Length/Depth
3.81 in
Product Height
7.25 in
Product Width
4.38 in
Product Weight
2.16 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
2
Style
Dead end
Special features
Must be used with MSR1 or MSR2 suffix
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
Eaton Specification Sheet - NCD02
Feature → The NCD02 enclosure is rated for Hazardous/Classified Locations and supports NEC/CEC compliance, providing a reliable housing in challenging environments. Business Impact → This reduces the risk of non-compliance penalties and downtime, enabling safer, faster panel commissioning. Application → Ideal for automation panels in chemical processing, oil & gas, and waste-water facilities where hazardous area ratings are mandatory. Feature → MSR1/MSR2 suffix compatibility. Business Impact → Simplifies integration with Eaton MSR control stations, reducing wiring complexity and installation time. Application → Streamlines panel assembly in new builds and retrofits for streamlined commissioning and maintenance. Feature → 2 circuits capacity. Business Impact → Efficiently serves small control loops without expanding enclosure count, lowering material costs and footprint. Application → Suitable for dead-end terminations in compact control housings. Feature → NEMA 3 4X 7 12 ratings. Business Impact → Delivers robust environmental protection against water, dust, corrosion, and impact, reducing replacement cycles. Application → Outdoor or washdown areas, refineries, and offshore facilities where durable enclosures are essential. Feature → Precise dimensions and weight (3.81 in D, 7.25 in H, 4.38 in W, 2.16 lb). Business Impact → Eases mounting and field handling, speeding installation and serviceability. Application → Fits in tight spaces and allows straightforward transport and mounting in enclosed switchgear or control panels. Feature → Must be used with MSR1 or MSR2 suffix. Business Impact → Guarantees correct accessory compatibility, ensuring code-compliant assemblies. Application → Critical for panel builders who standardize on MSR suffix configurations for hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds NCD02
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCD02?
Enquire Now
FAQs
The NCD02 enclosure is designed for Class I, Division 2 hazardous locations and adheres to NEC/CEC standards, with a NEMA rating of 3, 4X, 7, 12. It supports two circuits and must be used with MSR1 or MSR2 suffix for proper integration with Eaton control systems. This makes it suitable for chemical plants, refineries, and other demanding environments.
The NCD02 carries NEC/CEC standards type and a NEC hazardous rating of Class I, Division 2, aligned with area classifications for hazardous environments. Its NEMA ratings (3 4X 7 12) provide proven protection against dust, water ingress, and corrosion, ensuring compliant operation in challenging industrial sites and facilitating safe control panel installations.
Yes. The NCD02 is specified to be used with MSR1 or MSR2 suffixes, which ensures compatibility with related dead-end configurations and control-station assemblies. This compatibility simplifies wiring, reduces field errors, and accelerates panel assembly for hazardous-location applications.
The enclosure measures 3.81 in depth, 7.25 in height, and 4.38 in width, with a weight of 2.16 lb. It provides 2 circuits and is described as a dead-end style enclosure. The compact size aids installation in tight spaces, while the two-circuit capacity suits small control-loop needs.
Official documentation includes Eaton’s specification sheet for NCD02 and UL certifications for hazardous locations. Access to catalogs and UL certification pages is available via Eaton’s and UL’s online portals, including the N2S/N2SC series catalog page and related hazardous-area control-station certifications to support compliance verification.
