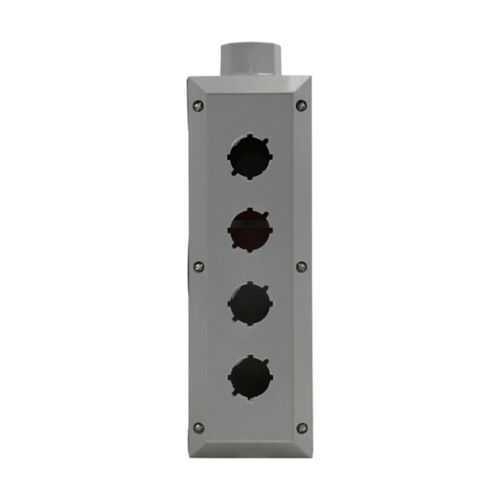

Eaton Crouse-Hinds NCD24 Enclosure - NEMA 3, 4X, 7, 12
Part Number: NCD24
Quick Summary
NCD24 enclosure from Eaton Crouse-Hinds protects control circuits in hazardous locations. In harsh facilities, cramped spaces and strict code requirements make enclosure selection risky, often leading to unprotected components or costly redesigns. This model provides a compact, rugged dead-end solution that fits tight panels while maintaining safety. It carries NEC/CEC compliance and a Class I, Division 2 hazardous location rating, with a versatile NEMA protection set of 3, 4X, 7, 12 for indoor and outdoor environments. Designed to be used with MSR1 or MSR2 suffix kits, it streamlines integration with Eaton control stations. For procurement, installation, and long-term reliability, the NCD24 supports compliant automation deployments and reduces maintenance downtime in demanding industrial settings.
Product Information
Extended Description
NCD24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCD enclosure, 4, Must be used with MSR1 or MSR2 suffix, Dead end, 3/4"
Product Name
Eaton Crouse-Hinds series NCD enclosure
Catalog Number
NCD24
UPC
782274592350
Product Length/Depth
3.81 in
Product Height
11.75 in
Product Width
4.38 in
Product Weight
3.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
4
Style
Dead end
Trade size
3/4"
Special features
Must be used with MSR1 or MSR2 suffix
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
Eaton Specification Sheet - NCD24
Hazardous-location protection with NEC/CEC compliance delivers safer operation and regulatory alignment, reducing risk and downtime in critical control panels. The 4-circuit, dead-end design supports compact installations, optimizing panel footprint and simplifying wiring layouts for small to mid-size control stations. NEMA ratings of 3, 4X, 7, 12 extend service life in corrosive or high-impact environments, lowering maintenance costs while increasing uptime across harsh environments. Compatibility with MSR1 or MSR2 suffix kits minimizes field errors and speeds installation, enabling faster project completion and safer commissioning. Key measurements and weight—11.75 in height, 4.38 in width, 3.81 in depth, 3.4 lb—facilitate accurate enclosure planning and mounting clearance. Procurement data such as UPC and catalog number improve supply-chain efficiency for industrial projects.
Get a Quick Quote for a Eaton Crouse-Hinds NCD24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCD24?
Enquire Now
FAQs
The NCD24 is ideal for small to mid-size control panels in Class I, Division 2 environments. Its 4-circuit, dead-end design supports compact wiring while maintaining safe separation of control components. With NEMA ratings that cover indoor and outdoor use, it is well-suited for chemical plants, oil & gas facilities, and other hazardous-area installations requiring robust protection and straightforward integration with MSR suffix kits.
NCD24 is certified under NEC/CEC standards and rated for Class I, Division 2 locations, ensuring compliance for hazardous-area control panels. The enclosure’s NEMA ratings of 3, 4X, 7, 12 provide added environmental protection against dust, water, and impact, supporting safe operation and regulatory conformity across diverse industrial applications.
Yes, the NCD24 must be used with MSR1 or MSR2 suffix configurations. This compatibility ensures correct kit labeling, certification traceability, and straightforward assembly with Eaton non-metallic control stations. It also simplifies procurement and reduces the risk of incompatible accessories during installation, speeding up commissioning in hazardous environments.
The enclosure measures 11.75 inches in height, 4.38 inches in width, and 3.81 inches in depth, weighing 3.4 pounds. It supports 4 circuits and a 3/4" trade size. When planning mounting, account for the compact footprint and ensure clearance for openings and MSR suffix attachments. The rugged construction supports surface or enclosure mounting in demanding industrial spaces.
Investing in the NCD24 provides improved safety and regulatory compliance, reducing incident risk and potential downtime. Its durable design minimizes maintenance in harsh environments, while its MSR1/MSR2 compatibility accelerates installation. The combination of compact footprint, 4-circuit capacity, and proven hazardous-location protection supports reliable automation deployments and lowers total cost of ownership over the system life.
