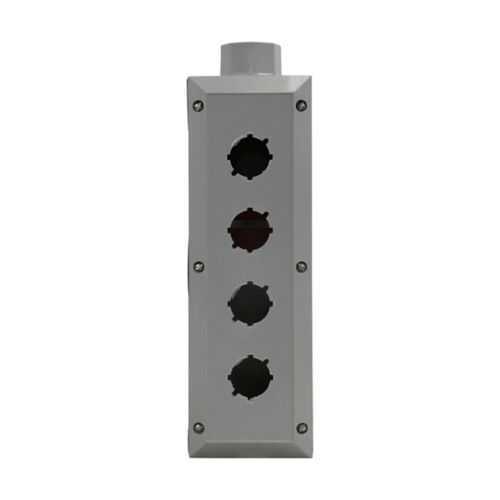

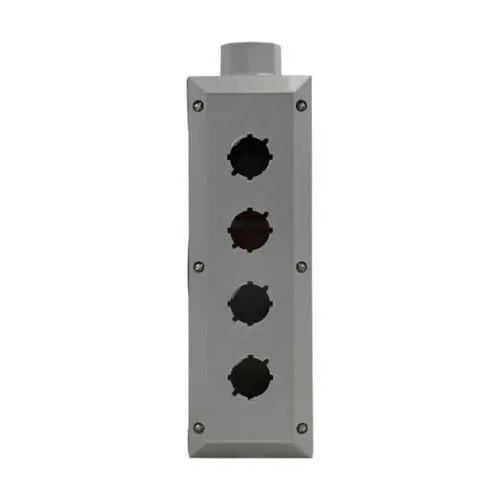

Eaton NCD34 Enclosure - Hazardous Locations, NEMA 3 4X 7 12
Part Number: NCD34
Quick Summary
The Eaton NCD34 enclosure protects electrical control gear in hazardous locations, delivering rugged, weatherproof protection for four-circuit control assemblies. This design addresses the common struggle of maintaining safety and reliability in demanding environments where space for wiring and long-term enclosure integrity matter most. Key certifications include NEC/CEC compliance, Class I, Division 2 hazardous rating, and robust NEMA protection (3, 4X, 7, 12). By aligning with MSR1 or MSR2 suffix compatibility, the NCD34 supports streamlined installation and consistent maintenance intervals, delivering measurable uptime gains and reduced conformity risk for industrial automation projects and maintenance teams.
Product Information
Extended Description
NCD34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCD enclosure, 4, Must be used with MSR1 or MSR2 suffix, Dead end, 1"
Product Name
Eaton Crouse-Hinds series NCD enclosure
Catalog Number
NCD34
UPC
782274592459
Product Length/Depth
3.81 in
Product Height
11.75 in
Product Width
4.38 in
Product Weight
4.02 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
4
Style
Dead end
Trade size
1"
Special features
Must be used with MSR1 or MSR2 suffix
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
Eaton Specification Sheet - NCD34
Feature → Business Impact → Application: 4 circuits within a single 1" trade-size, dead-end enclosure simplifies control panel design and reduces enclosure count in compact installations, delivering cost savings and easier field routing for packaged automation systems in hazardous environments. Feature → BS integration → Application: Must be used with MSR1 or MSR2 suffix ensures correct actuator compatibility, minimizing retrofit needs and enabling quick deployment on legacy lines or retrofit projects in chemical plants and offshore facilities. Feature → High protection ratings → Application: NEMA 3, 4X, 7, 12 protection supports outdoor and indoor hazardous area applications, improving uptime in corrosive atmospheres and heavy-duty operations such as oil & gas, mining, and refinery processes. Feature → Hazardous area compliance → Application: NEC/CEC alignment with Class I, Division 2 rating reduces compliance risk, supports regulatory approvals, and accelerates client audits for industrial automation projects. Feature → Robust dimensions and weight → Application: At 11.75 in height, 4.38 in width, 3.81 in depth and ~4.02 lb, it fits standard rack and panel layouts, aiding quick replacement and field servicing in tight installations. Feature → Ready-to-install with MSR suffix compatibility → Application: Simplifies wiring schemes and reduces commissioning time for control stations in hazardous locations, enabling faster project delivery and lower total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds NCD34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCD34?
Enquire Now
FAQs
To install the NCD34, ensure you select the MSR1 or MSR2 suffix version appropriate for your control devices. Mount the enclosure on a suitable surface, route conductors through listed glands, and secure the internal devices as per OEM wiring diagrams. Use the supplied hardware and sealants to maintain NEMA-rated protection during wiring and termination. This setup reduces retrofit time and improves field reliability in hazardous locations.
NCD34 supports 4 circuits in a dead-end configuration with a 1" trade size. It carries NEMA ratings of 3, 4X, 7, and 12, and NEC/CEC compliance with Class I, Division 2 hazardous-location rating. This combination ensures suitability for hazardous/classified locations while maintaining compatibility with standard industrial control components and control stations.
Yes. The NCD34 is designed for hazardous/classified locations and offers robust protection suitable for oil & gas, chemical processing, mining, and other high-risk environments. Its combination of NEMA ratings and NEC/CEC compliance supports reliable operation in outdoor and harsh indoor areas, helping you meet industry standards while protecting critical control equipment.
Prioritize correct suffix selection (MSR1 or MSR2), secure seals and gaskets, and ensure proper enclosure grounding and bonding per the wiring diagram. Verify conduit entry protection and maintain enclosure integrity during maintenance. Use compatible accessories recommended by Eaton to uphold NEMA ratings and Class I, Division 2 compliance during all phases of the lifecycle.
The NCD34 reduces downtime through rugged construction and certified protection, lowering maintenance frequency in hazardous environments. Its compact footprint and MSR suffix compatibility shorten wiring and commissioning, delivering faster project completion and lower total cost of ownership for control panels deployed in challenging facilities.
