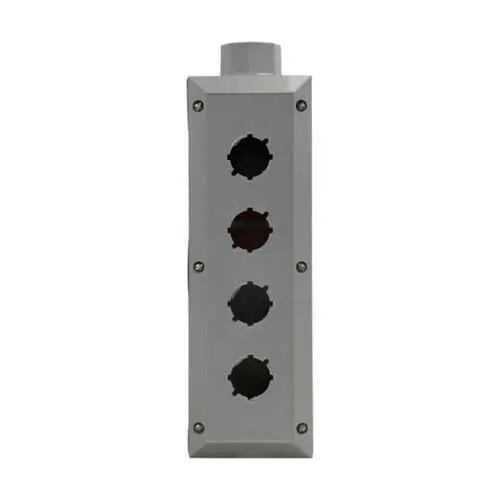

Eaton NCDC12 NCD Enclosure - NEMA 7/3/12/4X Hazardous
Part Number: NCDC12
Quick Summary
The NCDC12 NCD enclosure from Eaton Crouse-Hinds protects control circuits in hazardous locations. It simplifies field wiring with through-feed design and MSR1 or MSR2 suffix compatibility to prevent misconfigurations. This enclosure meets NEC/CEC standards and hazardous-location ratings, including NEC Class I, Division 2 and a comprehensive NEMA 7/3/12/4X rating. Its compact footprint delivers reliable protection without compromising panel space, while its two-circuit capacity and 1/2 inch trade size support common automation control panels. Designed for industrial automation environments, the NCDC12 helps engineers and procurement teams reduce wiring time, ensure regulatory compliance, and lower total cost of ownership in challenging plant environments.
Product Information
Extended Description
NCDC12 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCD enclosure, 2, Must be used with MSR1 or MSR2 suffix, Through feed, 1/2"
Product Name
Eaton Crouse-Hinds series NCD enclosure
Catalog Number
NCDC12
UPC
782274592282
Product Length/Depth
3.81 in
Product Height
7.25 in
Product Width
4.38 in
Product Weight
3.05 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
7 3 12 4X
Number of circuits
2
Style
Through feed
Trade size
1/2"
Special features
Must be used with MSR1 or MSR2 suffix
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
Eaton Specification Sheet - NCDC12
Feature → Through-feed design enables faster wiring and cleaner panels, reducing installation time and field labor costs while improving wiring traceability and panel reliability. Business Impact → Shorter commissioning cycles and less rework translate to lower project risk and accelerated time-to-value in automation projects. Application → Suitable for control panels in chemical, refining, and manufacturing facilities where space and safety are critical. Feature → Two circuits in a compact 3.81 in depth enclosure provide efficient two-channel protection, enabling tighter control layouts and fewer enclosure housings. Business Impact → Space savings and reduced hardware count lower material costs and simplify maintenance. Application → Ideal for compact motor control and control station assemblies in hazardous locations. Feature → MSR1/MSR2 suffix compatibility ensures correct labeling and wiring scheme, minimizing miswiring incidents. Business Impact → Improves install confidence and compliance during panel builds. Application → Preferred in industries with strict control-station suffix requirements. Feature → NEMA 7/3/12/4X ratings and NEC Class I, Division 2 compliance deliver robust protection against dust, water, and vapor intrusion. Business Impact → Enhanced safety and regulatory alignment; fewer reworks due to non-compliance. Application → Critical for offshore, petrochemical, and other classified environments. Feature → 4X enclosure construction resists corrosion and harsh cleaning, reducing maintenance downtime. Business Impact → Longer service intervals and lower lifecycle costs. Application → Suitable for washdown zones and aggressive chemical environments while maintaining reliability.
Get a Quick Quote for a Eaton Crouse-Hinds NCDC12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCDC12?
Enquire Now
FAQs
The NCDC12 is designed to be used with the MSR1 or MSR2 suffix, ensuring correct labeling and wiring schemes. When planning a control panel, verify suffix compatibility to prevent miswiring and to maintain compliant documentation. This compatibility simplifies field wiring, reduces rework, and aligns with Eaton Crouse-Hinds’ hazardous-location product family.
NCDC12 provides two circuits in a through-feed enclosure with a 1/2 inch trade size. It carries NEMA ratings 7, 3, 12, and 4X and NEC Class I, Division 2 hazardous-location certification, making it suitable for classified areas and demanding industrial environments where moisture and dust protection are required.
Yes. With NEC Class I, Division 2 certification and a NEMA 7/3/12/4X enclosure rating, NCDC12 is well suited for oil, gas, chemical, and similar hazardous environments. Its rugged construction and through-feed design support reliable control panel installations in such locations while maintaining compliance.
NCDC12 meets NEC/CEC standards and NEC Class I, Division 2 ratings, along with NEMA ratings 7, 3, 12, 4X. These certifications confirm suitability for hazardous/classified locations and ensure safe, code-compliant installations in industrial facilities, reducing audit concerns and facilitating regulatory approvals during project execution.
Through-feed wiring and the two-circuit configuration streamline panel assembly and service. MSR suffix compatibility minimizes wiring errors, lowering commissioning and maintenance time. The rugged NEMA 7/3/12/4X enclosure minimizes maintenance intervals, reducing downtime and total cost of ownership in harsh environments.
