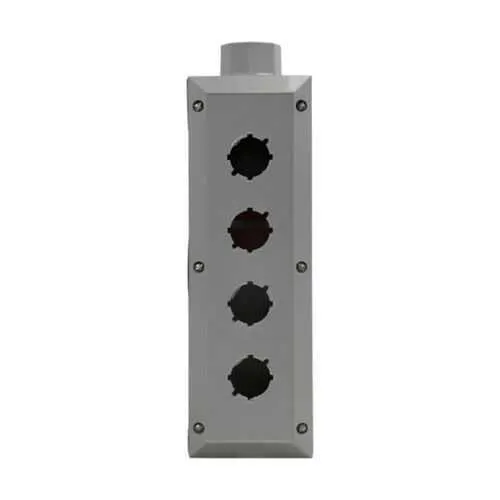

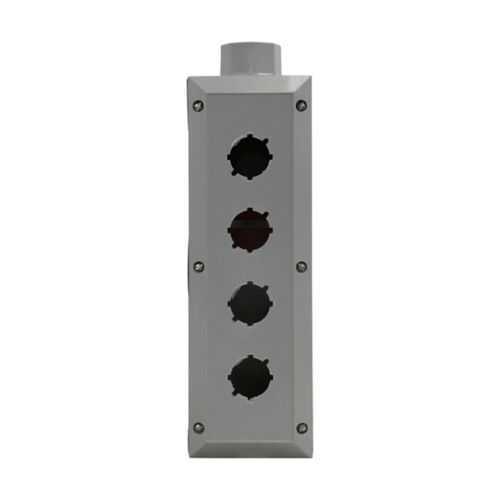

Eaton Crouse-Hinds NCDC22 Enclosure - NEMA 3 4X 7 12
Part Number: NCDC22
Quick Summary
Eaton Crouse-Hinds NCDC22 enclosure protects electrical gear in hazardous locations. Operators often struggle to meet NEC/CEC compliance while keeping safe, accessible wiring in harsh environments. It provides NEC/CEC compliance, Hazardous/Classified Locations rating, and a rugged NEMA 3 4X 7 12 enclosure standard. Coupled with MSR1 or MSR2 suffix compatibility and a compact 3/4 inch trade size, it streamlines installation. The enclosure's 2-circuit design supports compact layouts, while its through-feed configuration reduces field wiring complexity. Built for long service life in harsh environments, it helps shorten project timelines and lower maintenance costs. Overall, the NCDC22 is a trusted solution for hazardous location control panels where reliability matters.
Product Information
Extended Description
NCDC22 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCD enclosure, 2, Must be used with MSR1 or MSR2 suffix, Through feed, 3/4"
Product Name
Eaton Crouse-Hinds series NCD enclosure
Catalog Number
NCDC22
UPC
782274592374
Product Length/Depth
3.81 in
Product Height
7.25 in
Product Width
4.38 in
Product Weight
2.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
2
Style
Through feed
Trade size
3/4"
Special features
Must be used with MSR1 or MSR2 suffix
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
Eaton Specification Sheet - NCDC22
Through-feed design with a 3/4 inch trade size enables direct rear wiring access. This reduces install time and field modification costs by minimizing entry points, grommets, and routing turns. It’s ideal for compact automation panels and MSR suffix configurations where dense wiring and fast commissioning are constants. NEC/CEC compliance and Class I, Division 2 hazardous location ratings are embedded in the NCDC22, ensuring code-conforming protection from day one. This alignment with recognized standards reduces risk of non-compliance penalties and accelerates customer audits and commissioning. It is well-suited for chemical processing, oil and gas, and other environments with stringent safety requirements where downtime is costly. NEMA 3 4X 7 12 ratings provide robust protection against dust, water ingress, corrosion, and mounting vibration in challenging environments. The rugged enclosure extends service life in outdoor or washdown environments, lowering replacement and maintenance costs. Typical applications include outdoor control panels, marine facilities, and industrial facilities exposed to harsh elements where reliability is paramount. Two-circuit capacity ensures essential power and signal wiring fit within a single enclosure without forcing multiple enclosures. Its compatibility with MSR1 or MSR2 suffixes simplifies integration with Eaton Crouse-Hinds control stations and minimizes overall part counts. Use cases include motor starters, small PLC panels, and machine-automation assemblies in hazardous areas to streamline procurement. Compact dimensions—3.81 in depth, 7.25 in height, and 4.38 in width—combined with a light 2.75 lb weight enable predictable space planning in tight panels. Engineers benefit from straightforward installation, reduced mounting hardware, and easier field maintenance with clearly labeled entries. This enclosure supports faster project completion and lower total cost of ownership in industrial automation deployments where compliance and uptime are critical. For maintenance teams, readily available MSR specification documentation and the Eaton catalog pages simplify procurement decisions.
Get a Quick Quote for a Eaton Crouse-Hinds NCDC22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCDC22?
Enquire Now
FAQs
To install NCDC22 in hazardous locations, follow standard through-feed wiring practices and use MSR1 or MSR2 suffix assemblies for mounting in compliant panels. Ensure NEC/CEC compliance, verify Class I, Division 2 rating, and install proper grounding and seals. The enclosure is designed for two circuits and 3/4" trade fittings, simplifying wiring entry while preserving safety margins.
NCDC22 supports two circuits, through-feed style, and a 3/4" trade size. Its dimensions are 3.81 in depth, 7.25 in height, 4.38 in width, and it weighs 2.75 lb. It carries NEC/CEC compliance, a Class I, Division 2 hazardous location rating, and a NEMA 3 4X 7 12 enclosure rating, making it suitable for harsh environments.
Yes. The NCDC22 is rated NEMA 3 4X 7 12, which provides protection against dust, water ingress, corrosion, and vibration. This makes it appropriate for outdoor control panels, washdown areas, and industrial facilities exposed to harsh elements, helping to extend service life and reduce maintenance cycles.
NCDC22 aligns with NEC/CEC standards and is rated Class I, Division 2 for hazardous locations. The NEMA rating of 3 4X 7 12 further certifies its rugged construction for demanding environments, ensuring safety, regulatory compliance, and audit readiness for facility inspections.
By reducing wiring complexity, enabling faster installation with MSR suffix compatibility, and delivering durable protection in hazardous locations, NCDC22 lowers labor costs, minimizes field changes, and extends service life. These factors collectively shorten project timelines and improve uptime, delivering a favorable return on investment for automation deployments.
