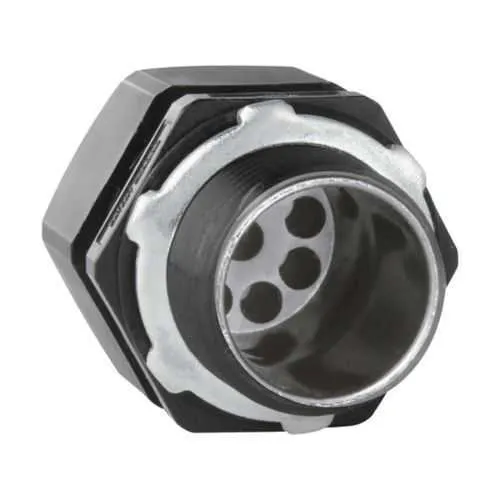

Eaton Crouse-Hinds NCGS237 Solar Cord Grip - IP68
Part Number: NCGS237
Quick Summary
NCGS237 is a solar cord grip that securely seals PV wiring at enclosure entries for outdoor solar installations. Engineers often struggle with ingress protection and unreliable seals when connectors don’t match enclosure threads or cable sizes. This part delivers NEC/CEC compliance, IP68 ingress protection, and Canadian certification options, ensuring reliable performance in Ordinary/Non-Hazardous locations. The nylon body and three-hole design support a range of conductors, including #12 AWG and #10 AWG, for up to 1000V PV cable. By combining a compact footprint with a robust seal, it reduces field retightening, lowers maintenance costs, and speeds installation on renewable energy projects.
Product Information
Extended Description
NCGS237 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 7 mm, Nylon, 3 holes, 3/4", #12 AWG, #10 AWG, 1000V PV cable
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS237
UPC
662277054546
Product Length/Depth
2 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
3/4"
Material
Nylon
Number of holes
Three-hole
Hole cable diameter
7 mm
Wire type
1000V PV cable
Wire size
#12 AWG #10 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
Eaton Specification Sheet - NCGS237
Feature: 3/4 inch trade size and three-hole nylon cord grip. Benefit: Enables versatile, secure cable entry for multiple wire sizes, reducing the need for adapters and misfits. Application: PV enclosures and outdoor electrical cabinets where space is constrained. Feature: IP68 ingress protection. Benefit: Provides reliable protection against dust and water ingress in harsh outdoor environments, lowering field service calls. Application: Roof-mounted or ground-mounted solar arrays exposed to weather. Feature: 1000V PV cable compatibility with #12 AWG and #10 AWG conductors. Benefit: Supports contemporary high-voltage PV strings, enabling safer, scalable installations. Application: Commercial and utility-scale PV projects with stringent voltage requirements. Feature: Nylon construction and three-hole design. Benefit: Corrosion resistance and easier routing of multiple conductors, reducing maintenance and replacement costs. Application: Long-term outdoor use in ordinary/non-hazardous locations. Feature: 2 in length, 1.5 in width, 1.5 in height, 0.15 lb weight. Benefit: Lightweight, compact footprint that speeds installation and simplifies enclosure planning. Application: Retrofit projects and new builds where space and weight matter.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS237
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS237?
Enquire Now
FAQs
The NCGS237 uses a three-hole nylon grip designed for a 3/4 inch trade size. Route #12 AWG or #10 AWG 1000V PV cables through the three holes, align with the enclosure opening, and tighten per standard torque recommendations to ensure IP68 sealing. The nylon body provides a compact, corrosion-resistant option that fits typical outdoor enclosures without adapters.
NCGS237 supports #12 AWG and #10 AWG PV cables up to 1000V. The three-hole design and 7 mm hole diameter accommodate common PV wiring through a 3/4 inch entry while maintaining IP68 protection, making it suitable for demanding outdoor installations.
Yes. NCGS237 is designed for Ordinary/Non-Hazardous Locations and features IP68 ingress protection. It complies with NEC/CEC standards, with Canadian certification options available, making it appropriate for outdoor solar enclosures and non-hazardous environments.
NCGS237 complies with NEC/CEC standards for electrical installations and offers options for Canadian certification as shown in the provided UL-based references. This helps ensure regulatory alignment for solar projects in multiple jurisdictions and reduces compliance risk during audits.
The nylon, three-hole design with IP68 sealing enables faster, more reliable cable entry without adapters, reducing field service calls and retightening. Its light weight and compact dimensions simplify enclosure planning, contributing to shorter installation times and lower lifecycle maintenance costs for PV projects.
