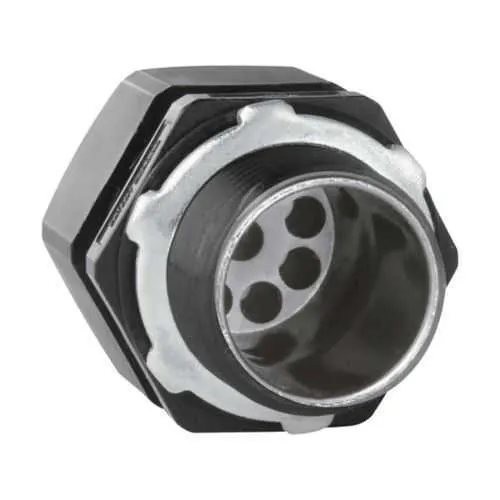

Eaton NCGS25 Solar Cord Grip - Five-Hole Nylon IP68
Part Number: NCGS25
Quick Summary
Eaton NCGS25 Solar Cord Grip secures cables in outdoor solar installations with rugged reliability. Maintenance teams often battle loosening fittings, moisture ingress, and costly downtime when cords shift in harsh environments. It meets NEC/CEC standards, offers IP68 protection, and carries an Ordinary/Non-Hazardous Locations area classification for safe, compliant operation. Designed for USE-2 conductors up to #12 or #10 AWG at a 3/4 inch trade size, it simplifies field installs and minimizes inventory. With lightweight nylon construction and a compact 2-inch length, this grip delivers reliable, long-life performance for solar arrays while reducing maintenance costs and downtime.
Product Information
Extended Description
NCGS25 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 5 mm, Nylon, 5 holes, 3/4", #12 AWG, #10 AWG, USE-2
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS25
UPC
662277038942
Product Length/Depth
2 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.08 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
3/4"
Material
Nylon
Number of holes
Five-hole
Hole cable diameter
5 mm
Wire type
USE-2
Wire size
#12 AWG #10 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
Eaton Specification Sheet - NCGS25
Nylon construction with IP68 protection provides excellent weather resistance and corrosion resistance, reducing replacement cycles and maintenance costs in harsh outdoor environments. Feature → Business Impact → Application: The five-hole design accommodates USE-2 cables up to #12 and #10 AWG, delivering flexible routing and secure strain relief, which translates to fewer cable movements or pulls and improved field reliability in solar junction boxes and panel housings. Feature → Business Impact → Application: The 3/4 inch trade size standardizes installation across common solar cable runs, enabling faster commissioning and lower inventory complexity for contractors and original equipment manufacturers. Feature → Business Impact → Application: The 5 mm hole diameter supports a range of conductors while preserving sealing integrity, which helps maintain IP68 protection during washing, rainfall, and wind-driven moisture. Feature → Business Impact → Application: WEIGHT/Dimensions optimization—with 2 in length and 1.5 in width/height—facilitates installation in tight enclosures, reducing space requirements and enabling compact, compliant mounting. Feature → Business Impact → Application: NEC/CEC compliance, Ordinary/Non-Hazardous Locations suitability, and UL-listed Canadian certifications referenced in documentation provide confidence for cross-border projects, minimizing regulatory risk and speeding approvals. Industry insight shows that combining robust material choices with straightforward mounting reduces maintenance intervals and enhances overall solar array uptime, translating to a lower total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS25?
Enquire Now
FAQs
Begin by selecting a 3/4" trade size opening and ensure the five-hole groove aligns with the cable bundle. Route USE-2 conductors (#12 or #10 AWG) through the 5 mm holes, position the grip so the body seats against the enclosure, and tighten appropriately to maintain IP68 sealing. Verify that the enclosure remains weatherproof after installation.
Yes. The NCGS25 is IP68 rated, providing high-level protection against dust ingress and complete water immersion under designed conditions. This makes it well-suited for outdoor solar arrays and other outdoor electrical enclosures where moisture exposure is a concern, while remaining compatible with ordinary/non-hazardous locations per NEC/CEC.
The NCGS25 complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. The product pages and certification reports provide additional validation, including any Canadian certifications referenced in UL/ULC documentation. These certifications help ensure regulatory compliance across North American solar projects.
The grip accommodates USE-2 conductors sized #12 AWG and #10 AWG, with a 5 mm hole diameter in a 3/4" trade-size body. This supports typical solar cables used in photovoltaic installations and helps streamline cable management within junction boxes and enclosures.
The nylon NCGS25 provides corrosion resistance, lighter weight, and easier handling in field conditions, reducing installation time. Its compact 2 in length and five-hole design deliver flexible routing, reliable seal performance, and cost savings from lower maintenance and longer service life in solar infrastructure.
