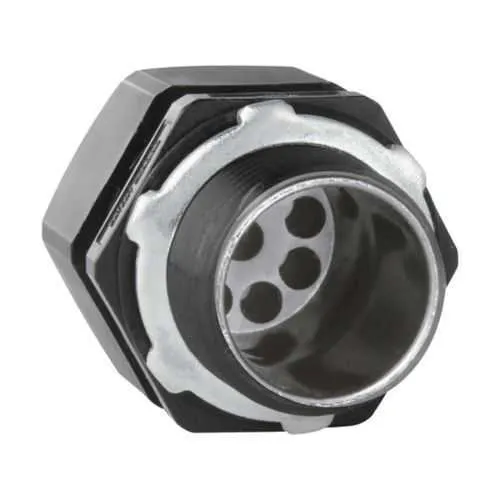

Eaton Crouse-Hinds NCGS478 Solar Cord Grip - IP68
Part Number: NCGS478
Quick Summary
NCGS478 solar cord grip is a rugged sealing solution for PV cable connections in outdoor solar arrays. This nylon seven-hole grip addresses common installation pain points, including weatherproof sealing and cable movement. It satisfies NEC/CEC requirements and delivers IP68 ingress protection alongside ordinary/non-hazardous location suitability, supporting code-compliant installations in harsh environments. The design enables reliable performance across a 1-1/4 inch trade size with 8 mm hole diameter for PV cables up to 1000V, helping reduce maintenance and replacement costs. By combining robust material and precise tolerances, it streamlines field assembly while offering long-term durability and compatibility with Eaton Crouse-Hinds NCGS components, maximizing system uptime and project ROI.
Product Information
Extended Description
NCGS478 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 8 mm, Nylon, 7 holes, 1-1/4", #12 AWG, #10 AWG, #8 AWG, 1000V PV cable
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS478
UPC
662277077491
Product Length/Depth
2.69 in
Product Height
2.26 in
Product Width
2.05 in
Product Weight
0.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
1-1/4"
Material
Nylon
Number of holes
Seven-hole
Hole cable diameter
8 mm
Wire type
1000V PV cable
Wire size
#8 AWG #10 AWG #12 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
Eaton Specification Sheet - NCGS478
Feature: Seven-hole nylon cord grip with a 1-1/4 in trade size and 8 mm hole diameter. Business Impact: Accommodates multiple conductors in a single connector set, delivering versatile sealing while reducing hardware inventory. Application: Ideal for solar PV field terminations where space is constrained and cable configurations vary. Feature: IP68 ingress protection and NEC/CEC compliance. Business Impact: Provides reliable sealing in wet and dusty environments, lowering risk of moisture-related failures and ensuring regulatory alignment. Application: Outdoor solar installations, equipment cabinets, and harsh-location enclosures. Feature: 1000V PV cable readiness with support for #8, #10, and #12 AWG wires. Business Impact: Supports high-voltage PV networks without additional adapters, reducing installation time and potential termination errors. Application: Utility-grade solar arrays and commercial PV rooftops. Feature: Nylon construction with seven-hole arrangement. Business Impact: Durable, corrosion-resistant performance and flexible routing options while maintaining mechanical integrity over time. Application: Outdoor or industrial settings with temperature and weather exposure. Feature: Compact dimensions (2.69 in L x 2.26 in H x 2.05 in W) and moderate weight (0.35 lb). Business Impact: Easy handling and installation in tight spaces, reducing mounting clearance requirements and labor. Application: Enclosures, conduit systems, and compact solar junction boxes. Feature: Compatibility with standard NCGS components and accessories. Business Impact: Simplifies procurement, stocking, and field maintenance by aligning with existing Eaton Crouse-Hinds cord grip families. Application: New installations and retrofit projects where consistent hardware ecosystems drive efficiency.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS478
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS478?
Enquire Now
FAQs
The NCGS478 is a seven-hole nylon cord grip rated for 1-1/4 inch trade size with an 8 mm hole. To install, align the cable jacket with the grip, tighten the outer nut or clamp according to the catalog page, and verify the 1000V PV cable fits the #8, #10, or #12 AWG range. Ensure IP68 sealing by confirming the gasket seating and cable entry is clean and properly sealed before mounting in a suitable enclosure.
NCGS478 supports 1000V PV cable with wire sizes #8 AWG, #10 AWG, and #12 AWG. The 8 mm hole diameter accommodates the typical PV conductor insulation used in outdoor installations, enabling secure termination and compliance with high-voltage solar wiring standards.
Yes. With IP68 ingress protection and NEC/CEC compliance, the NCGS478 is designed for outdoor solar arrays and enclosures exposed to dust, water, and weather. Its ordinary/non-hazardous area classification further supports safe operation in most commercial and industrial outdoor settings.
NCGS478 aligns with NEC/CEC standards and IP68 protection, ensuring compliance for outdoor, non-hazardous locations. The product page also references UL certification pages for related NCGS components, reinforcing safety and reliability expectations for non-metallic portable cord connectors used in PV installations.
The nylon construction resists corrosion and weathering, reducing maintenance cycles. The seven-hole configuration simplifies, modular terminations, and compatibility with existing NCGS components lowers sparing costs. Overall, expect lower field remediation needs, faster installs, and improved system uptime, contributing to a favorable total cost of ownership in solar projects.
